Caterpillar Engine Tools Cat Overhaul 3512 Page 326

Operation and Maintenance Manual
2598429
2598450
2670251

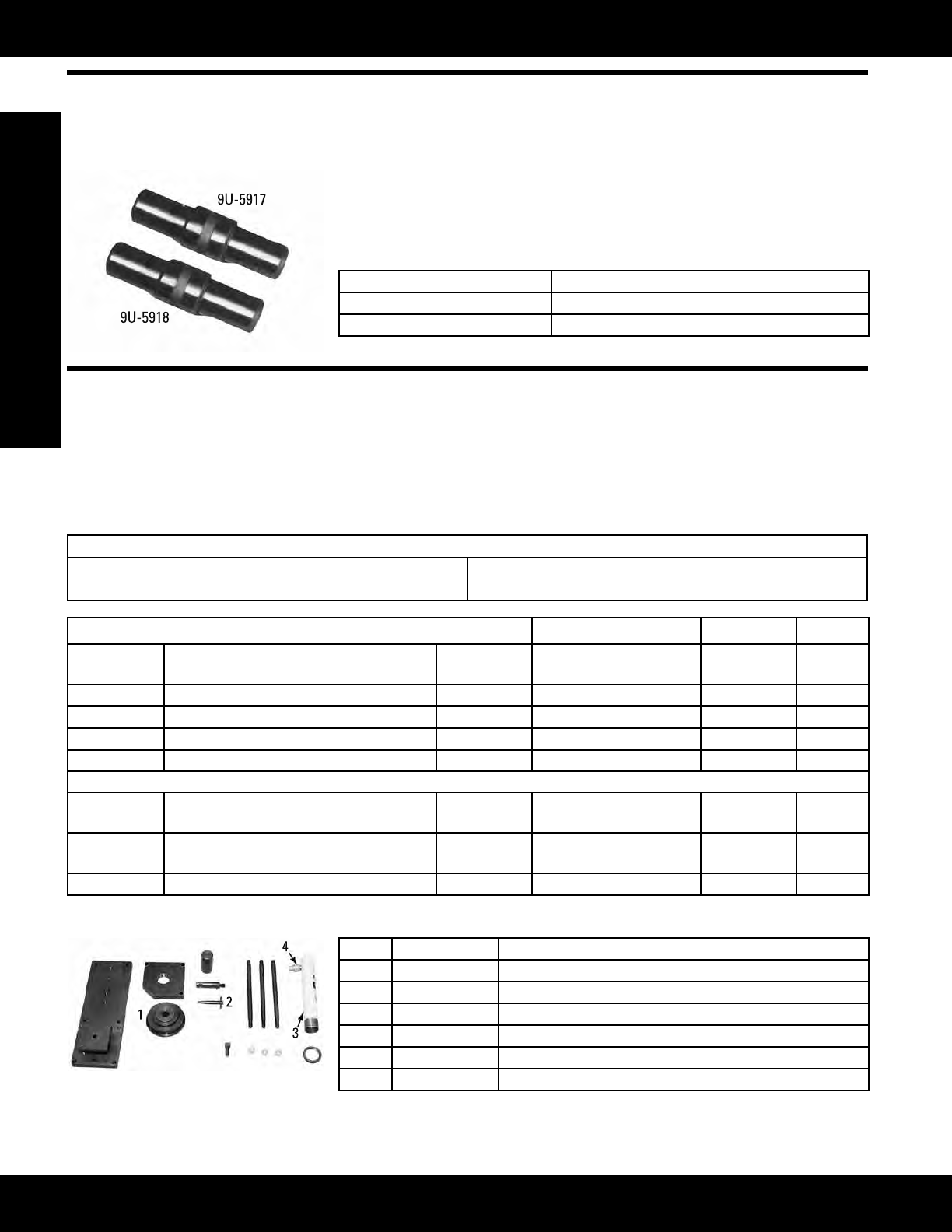

3-326
Engine Tools
Pistons, Rings and Connecting Rods
9U-5917 Pin Mandrel, Bushing Out
9U-5918 Pin Mandrel, Bushing In
Model: 3114 and 3116 Engines
Warranty: Six Months
• Used to check connecting rods
• Providesaccuratemethodformeasuringboremisalignmentandroddistortion
• Rod can be checked before and after rebuild with rod eye bushing in or out
• Length: 140 mm (5.5 in)
• Composition: steel
Part Number Description
9U-5917 Pin Mandrel, Bushing Out
9U-5918 Pin Mandrel, Bushing In
Tools for Connecting Rod Pin Bearing Removal and Installation
Model: Cat
®
Engines
Warranty: Six Months
• Usedtoremoveandinstallbothtaperedandstandardconnectingrodpinbearings
• Basic5P-8639PressGrouprequiredforallenginesinadditiontoothertoolsforeachfamilyofengines;refertotablefor
hydraulicservicetoolsforusewith5P-8639PressGroup
• 5P-8655 Tool Group required for current engines with standard rods
Refer to table below to select appropriate hydraulic pump and for comparison of hydraulic pump press time.
HydraulicServiceToolsforusewith5P-8639PressGroup
Description Qty.
Hydraulic Pump (Electric or Hand) 1
Hydraulic Service Tools for use with 5P-8639 Press Group
Part Number Description
Press Time
Seconds
Loading and Unloading
Time Seconds
Total Time
Seconds Qty.
2P-5500 (230V) Electric Hydraulic Pump 10 - 15 45 55 - 60 --
2P-5550 (115V) Electric Hydraulic Pump 10 - 15 45 55 - 60 --
3S-6224 Pump Group - Hydraulic (115V) 3 - 5 45 48 - 50 --
8S-8033 Pump Grp - Hydraulic (230V) 3 - 5 45 48 - 50 --
Hydraulic Service Tools for use with 5P-8639 Press Group
1P-2375 CouplerAssemblyQuickConnective
(Male)
-- -- -- 1
1P-2376 CouplerAssemblyQuickConnective
(Female) (2)
-- -- -- 1
8F-0024 Hose Assembly -- -- -- 1
Service Parts for 5P-8639 Connecting Rod Bearing Press Group (Basic)
Item Part Number Description
1 5P-8640 Clamp Bar
2 5P-8642 Clamp Pin
3
1
5P-9725 Cylinder Group
4
2
1P-2375 CouplerAssemblyQuickConnective(Male)
4
2
1P-7437 ProtectiveCap
-- 5P-8639 Connecting Rod Bearing Press Group
1
5P-9724RepairKitisavailable
2
Part of 5P-9725
