Caterpillar Engine Tools Cat Overhaul 3512 Page 56

Operation and Maintenance Manual
3044611
2588111
2588129
2980863
3-56
Engine Tools
Crankshaft, Main Bearings and Flywheel

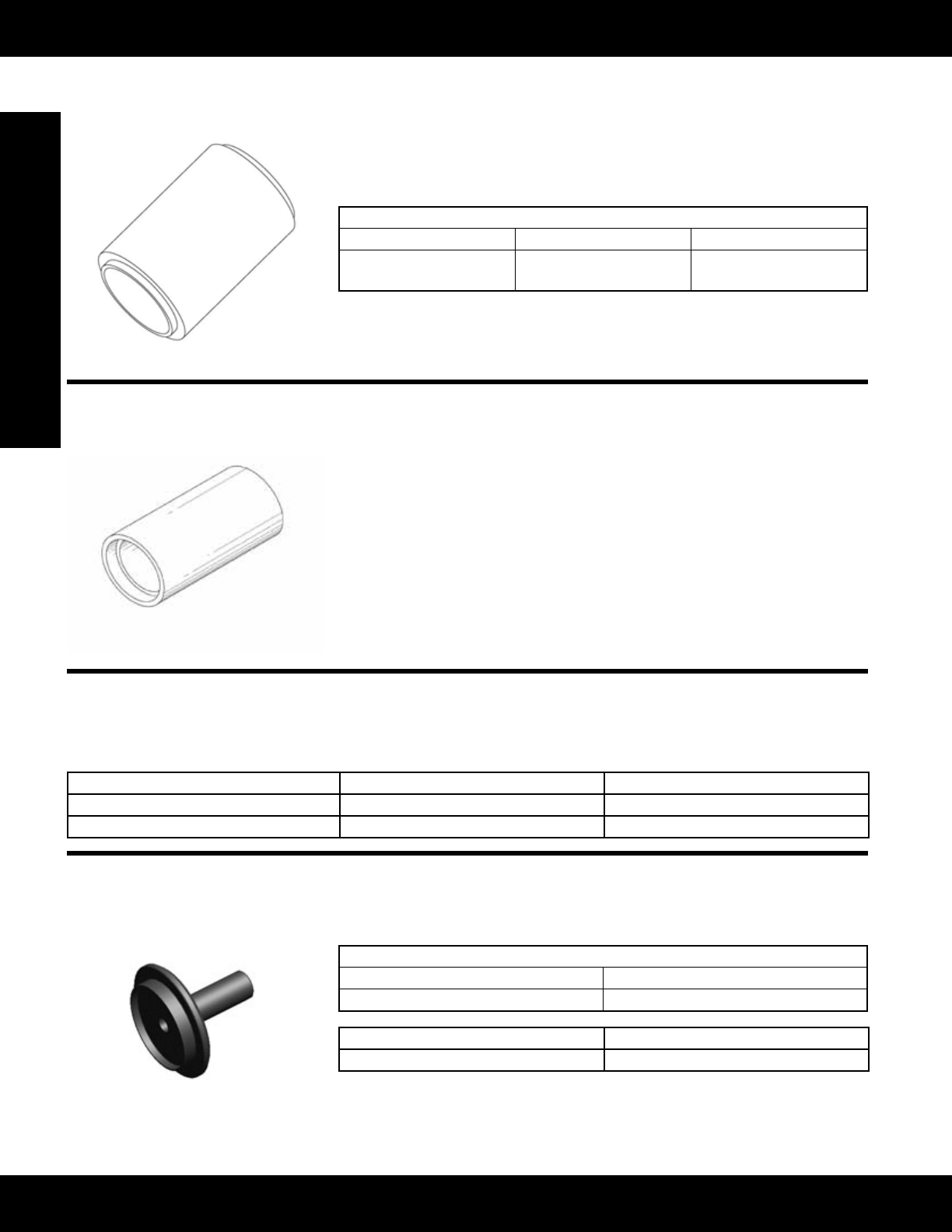

422-7508 PTO Seal Installer Tool Assembly
Model Usage: 3500 Machine Engines
Warranty: Six Months
• Used to quickly and easily install rear PTO oil seal
• Necessary to correctly install seal without damage
• Decreases installation time
• Made from steel with black oxide coating
Specications
Part Number Dimensions Weight
422-7508 152.5 x 101.6 mm (6.0 x 4.0
in)
4.25 kg (9.37 lb)
FT3142 Seal Installer
Model: 793D and 797B Off-Highway Trucks
Warranty: None
• Used to install 119-6354 PTO Shaft Seal, which is part of 119-6355 Seal Kit
• Used with nut and washer of PTO yoke to push seal into position
• Necessary to correctly install seal without damage
• Decreasesinstallationtime(usespositivestoptoaccuratelysetdepthofseal)
• Made from high-density plastic (ATSM D4000)
References
RENR9717, 3500B High Displacement Engines for Caterpillar Built Machines
SENR1126, 3500B Engines for Caterpillar Built Machines
KENR8117, 3512C Engines for Caterpillar Built Machines
SENR1486, 3512B and 3516B Engine Supplement for 784C, 785C and 785C HAA Off-
Highway Truck/Tractors
Wear Sleeve Installers
Model: 3176, 3176B, C-10, and C-12 Engines
Warranty: Six Months
• Usedtoquicklyandeasilyinstallcrankshaftwearsleeves
Part Number Description Use
145-5247 WearSleeveInstaller FrontCrankshaftSleeves
147-2675 WearSleeveInstaller RearSleeves
393-2571 Crankshaft Sleeve Installation Tool
Model Usage: C3.8
Warranty: Manufacturer’s
• Usedtoeasilyinstallrearcranksealandwearsleeve
Specications
Dimensions 130 x 115.1 mm (5.12 x 4.53 in)
Weight 2.02 kg (4.45 lbs)
Part Number Description
393-2571 CrankshaftSleeveInstallationTool
