Caterpillar Engine Tools Cat Overhaul 3512 Page 63

Operation and Maintenance Manual
2588472
2588494
2588518
3-63
Engine Tools
Crankshaft, Main Bearings and Flywheel

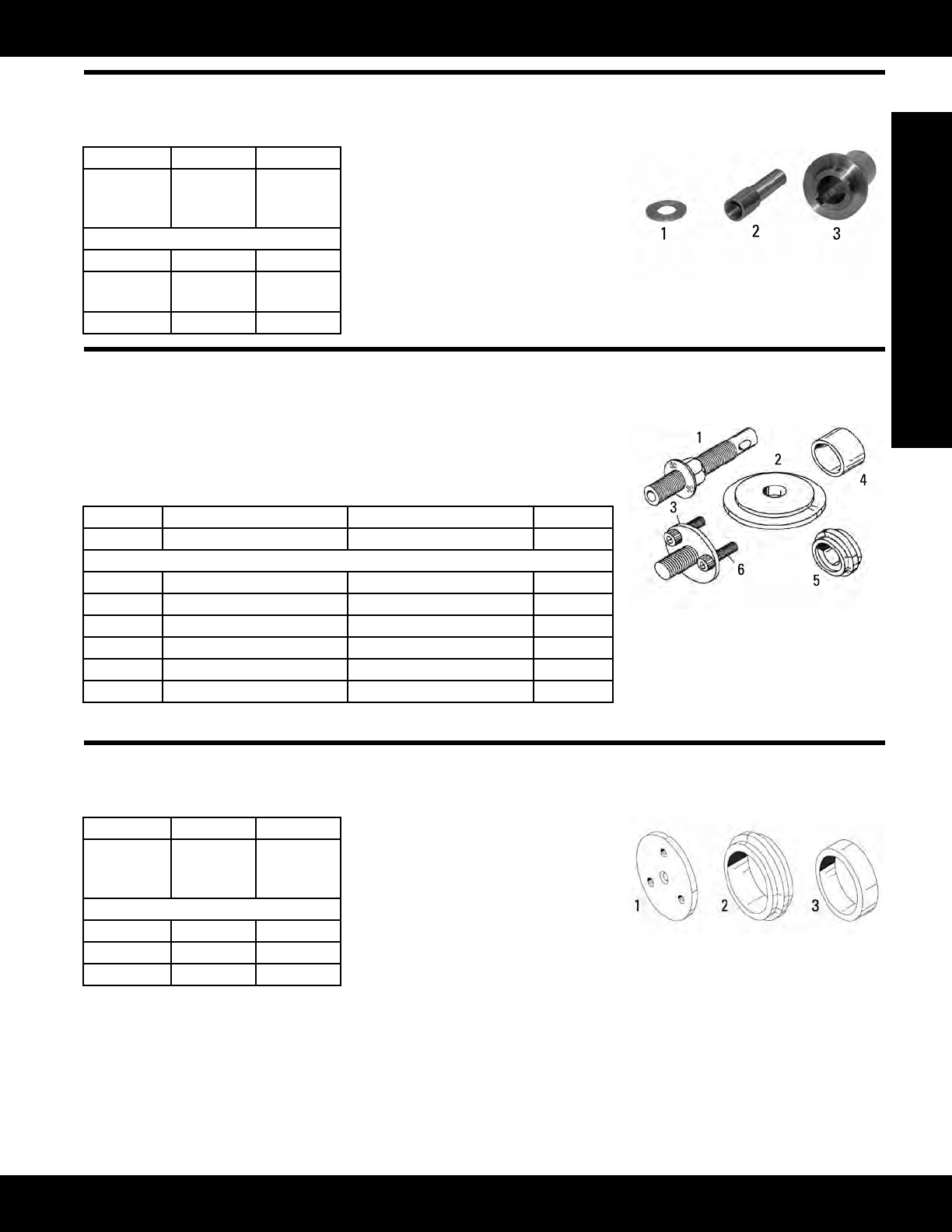

9U-6180 Front Seal Installer Group
Model: 3064 and 3066 Engines
Warranty: Six Months
• Used to install crankshaft front seal
withoutremovingfrontcover
• Makes installation easier and pre-
ventsdamagetoseals
• Assures uniform contact around
crankshaft(ultimatelyprovides
longer seal life)
Reference
SENR5553,ServiceManual,3066Diesel
Engines
Item Part No. Description
-- 9U-6180 Front Seal
Installer
Group
Group Consists of:
1 9U-6179 Washer
2 9U-6178 Installer
Stud
3 9U-6181 Sleeve
9U-6210 Installer Group
Model: 3054 and 3056 Engines
Warranty: Six Months
• Used to install crankshaft front oil seal to proper depth of 9.3 mm (0.37 in)
• Preventssealdamage
Reference
SENR5547,ServiceManual,ServiceModuleinSENR5555
Item Part Number Description Quantity
-- 9U-6210 Installer Group --
Group Consists of:
1 9U-6206 Stud --
2 9U-6207 Plate --
3 9U-6208 Locator
1
--
4 9U-6209 Sleeve --
5 9U-6211 Installer --
6 089-7989 Bolt 3
1
Includes 089-7989 Bolt
9U-6205 Rear Seal Installer Group
Model: 3054 and 3056 Engines
Warranty: Six Months
• Used to install rear seal onto crank-
shafts (assures seal lip will conform
uniformly around crankshaft)
• Preventssealdamageduringinstal-
lation — longer seal life
Reference
SENR5555,ServiceManual
Item Part No. Description
-- 9U-6205 Rear Seal
Installer
Group
Group Consists of:
1 9U-6202 Plate
2 9U-6203 Installer
3 9U-6204 Seal Guide
