Caterpillar Engine Tools Cat Overhaul 3512 Page 27

Operation and Maintenance Manual
2587166
2587179
2587196
2587212
3-27

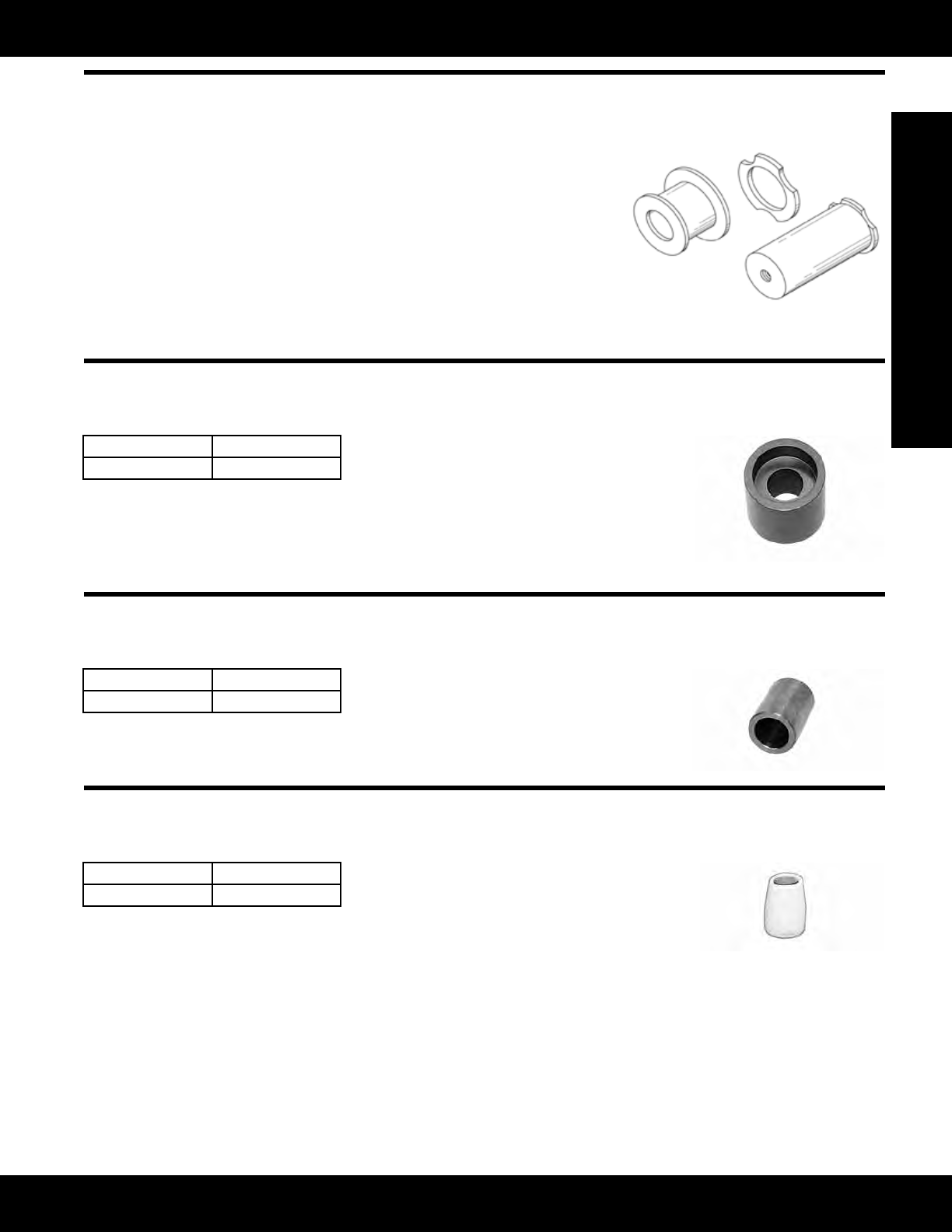

Engine Tools
Cooling System
FT0200 Seal Case Removal Tool
Model: Multiple Engine Models
Warranty: None
• Usedtoremovebrasscaseonanywaterpumpequippedwithcarbonthrust
washer and bellows-type seal on D9H, 776, 777, 777B
• Material: SAE 1020 steel
5P-9722 Seal Driver
Model: 3208 Engines
Warranty: Six Months
• Used to install the 9N-3141 Water
Pump Seal Assembly (9N-3075 Wa-
ter Pump and 9N-3898 Water Pump)
• Required to compress seal spring
pre-determined distance
References
SENR3910,3176ServiceManual
SEHS9120, Special Instruction, Operation
Part Number Description
5P-9722 SealDriver
9U-6944 Pump Seal Installer
Model: 3046 Diesel Engine
Warranty: Six Months
• Used to install water pump seal
Reference
SENR6458, Special Instruction,
Disassembly and Assembly of 3046
Engines
Part Number Description
9U-6944 Pump Seal Installer
6V-6159 Seal Guide
Model: 3204 Engines
Warranty: Six Months
• Used for assembly of 1W-6446 Wa-
ter Pump and 2W-1223 Water Pump
• Preventsshaftsealfromrolling
when shaft is installed in water
pump housing
Part Number Description
6V-6159 Seal Guide
