CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 320

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i01809997

Work Tool Mounting Bracket - Inspect

SMCS - 6700-040-BK

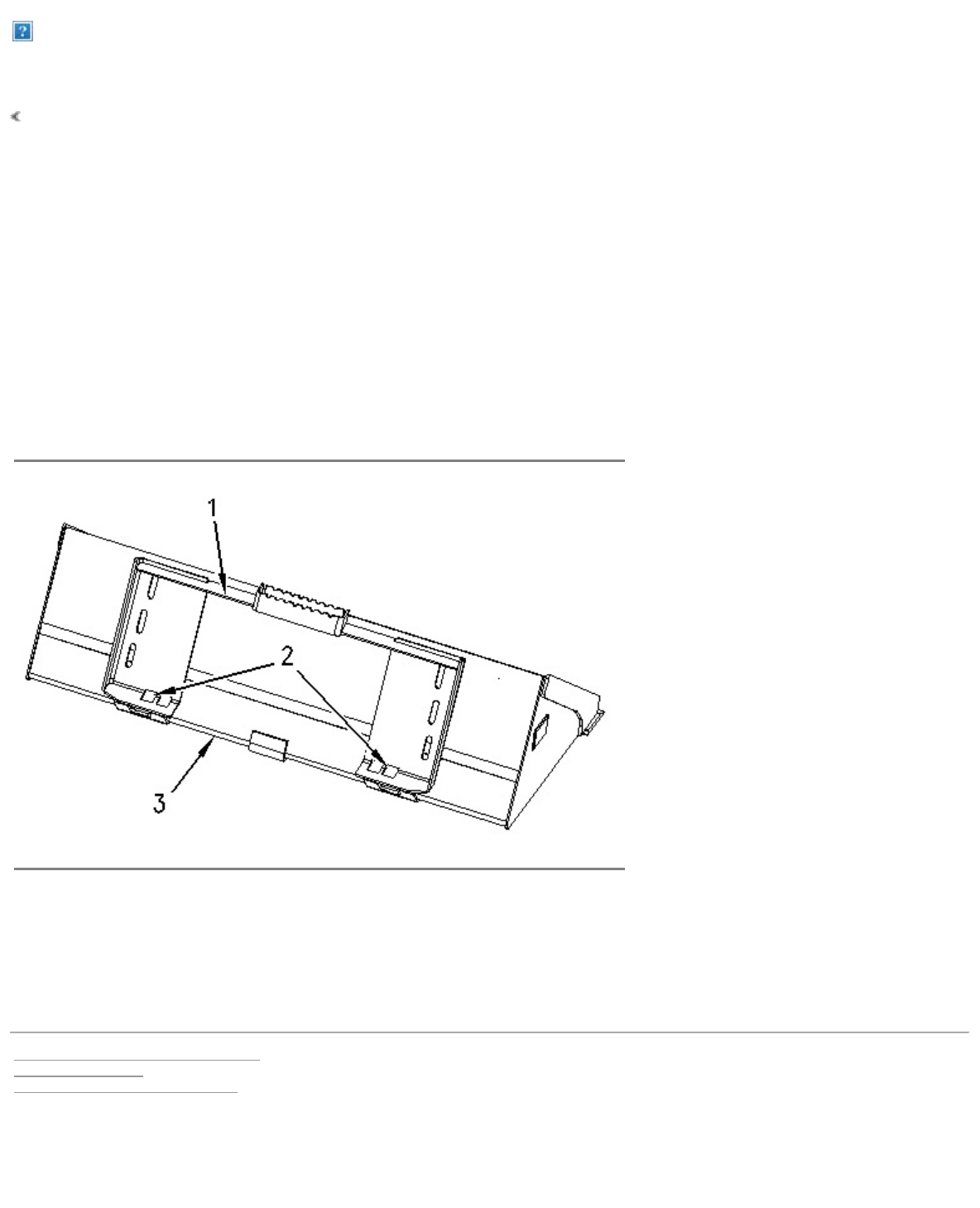

Illustration 1 g00925058

Inspect upper angled plate (1) and ensure that the plate is not bent or otherwise damaged. Inspect holes

(2) for wear and for damage. Inspect lower angled plate (3) and ensure that the plate is not bent or

otherwise damaged. If any wear is suspected or any damage is suspected, consult your Caterpillar dealer

before you use the work tool.
