CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 308

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i01445212

Tire Segment - Replace - Removal

SMCS - 4203-510-SEG

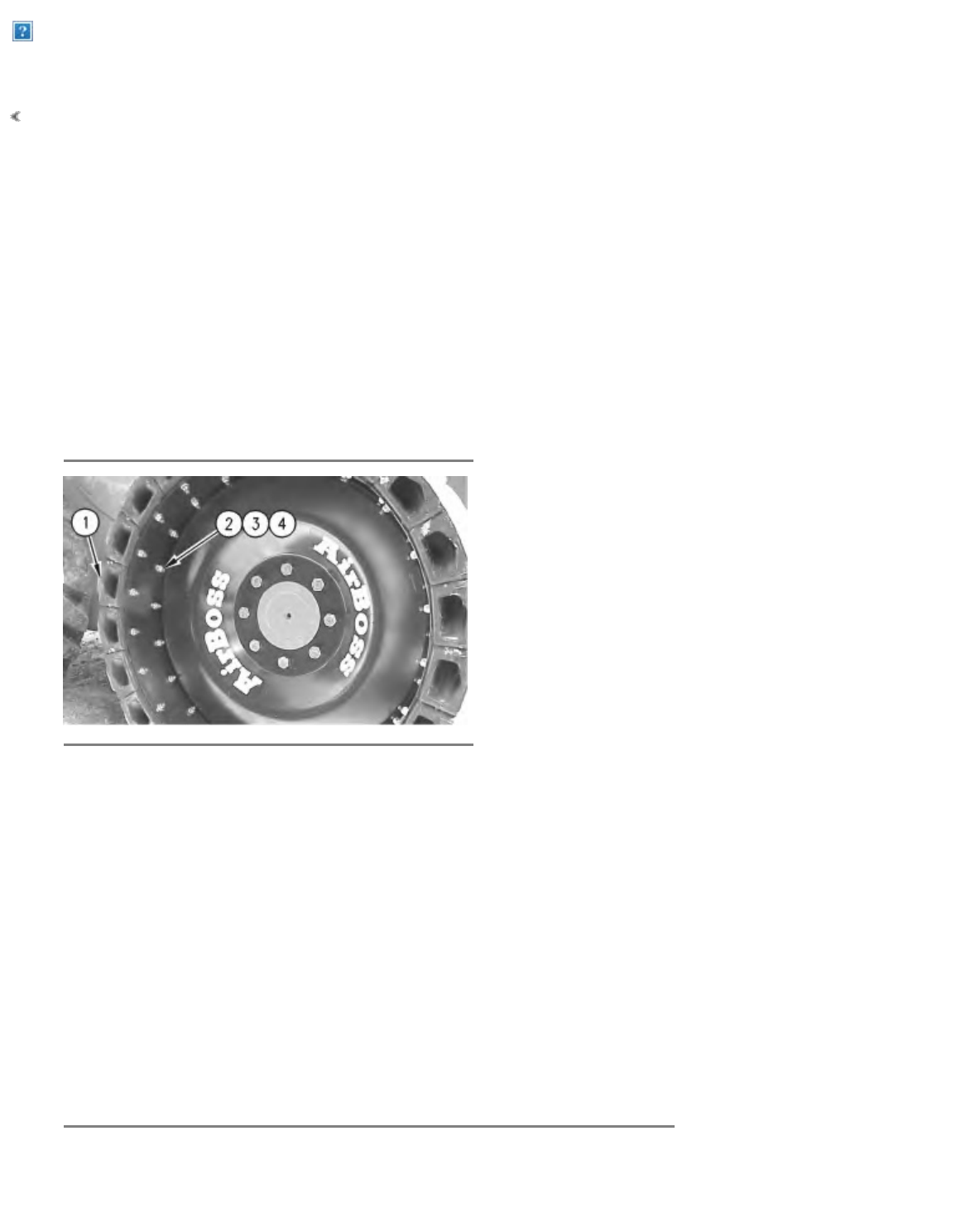

Illustration 1 g00756820

1. Remove any dirt buildup from the segment (1). Remove any dirt buildup from the stud threads (2) .

2. Remove the locknuts (3) and washers (4). There are four locknuts and washers per segment.

3. Remove the segment from the rim.

Installation

1. Clean the inner surface of the rim. Clean the outer surface of the rim.

2. Align the studs in the segment with the holes in the rim. Install the segment, the washers and the

locknuts.
