CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 234

Operation and Maintenance Manual

Page of 331

/ 331

Illustration 1 g00956151

Note: The radiator cap is located on the left side of the radiator on machines that are equipped with

the 3024 engine. The radiator cap is located on the right side of the radiator on machines that are

equipped with the 3044 engine.

3. Slowly loosen the radiator cap in order to relieve system pressure. Remove the radiator cap.

4. If necessary, drain enough coolant from the radiator in order to allow the addition of the coolant

additive.

5. Add 0.17 L (0.18 qt) of cooling system additive.

6. Inspect the radiator cap and the gasket. If the cap or the gasket is damaged, replace the cap. Install

the radiator cap.

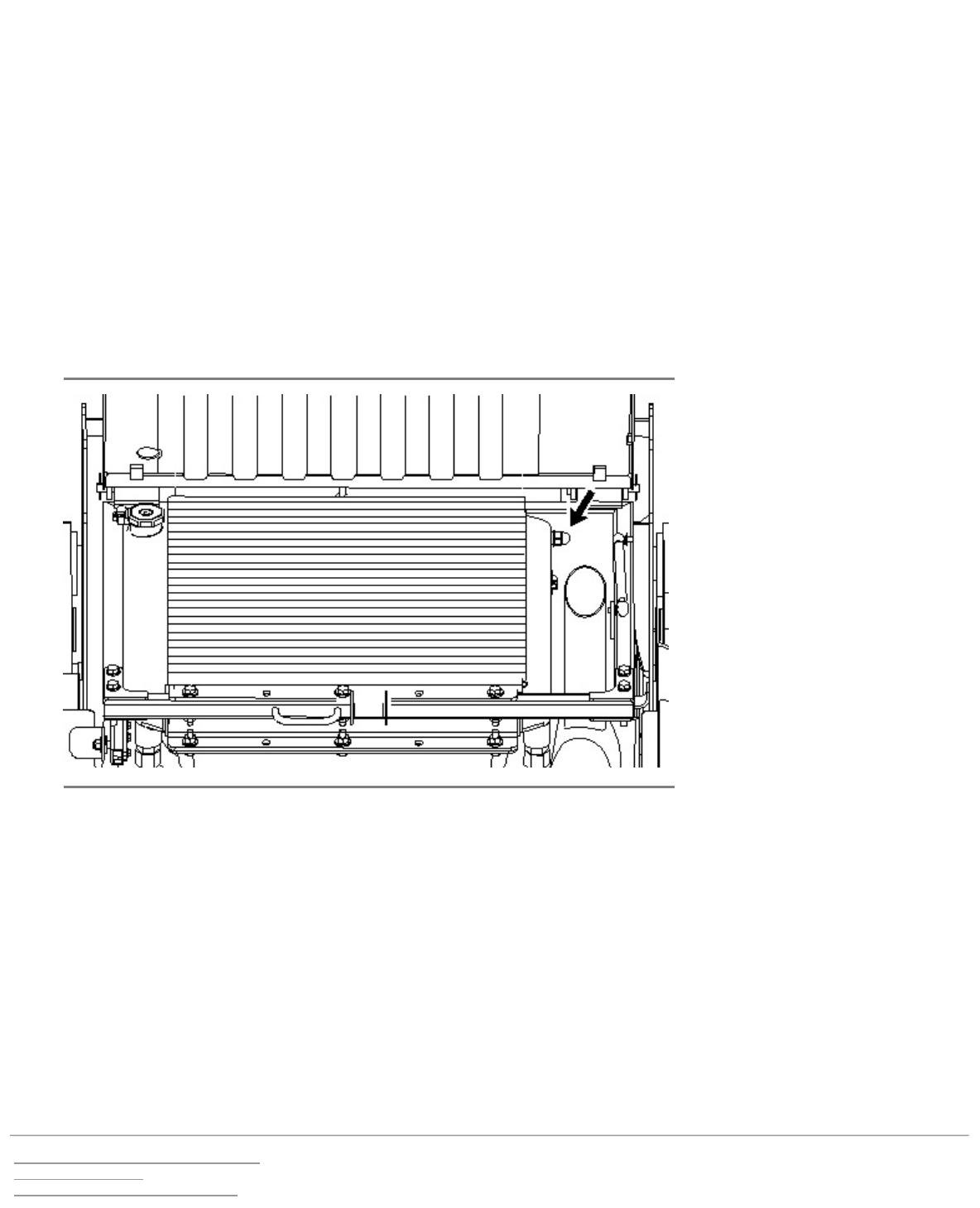

Illustration 2 g00956179

Note: The sight gauge for the coolant level is located on the right side of the radiator on machines

that are equipped with the 3024 engine. The sight gauge for the coolant is located on the left side of

the radiator on machines that are equipped with the 3044 engine.

7. Check the coolant level in the sight gauge on the radiator. Maintain the coolant level to the top of the

sight gauge with the radiator in the LOWERED position.

8. Tilt the radiator guard downward.

9. Close the engine access door.

For additional information on the addition of extender, see Special Publication, SEBU6250, "Caterpillar

Machine Fluids Recommendations".
