CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 232

Operation and Maintenance Manual

Page of 331

/ 331

5. Install the drain plug.

6. Replace the thermostat. See Operation and Maintenance Manual, "Cooling System Water Temperature

Regulator - Replace" for the process for replacing the thermostat.

7. Add the coolant solution. Refer to Operation and Maintenance Manual, "Capacities - (Refill)". Refer to

Special Publication, SEBU6250, "Caterpillar Machine Fluids Recommendations".

Note: Premix the coolant solution before filling the cooling system. The coolant solution

should contain 50 percent coolant and 50 percent distilled water.

Note: Add the coolant solution at a maximum rate of five liters per minute. This will reduce

the chance of trapping air inside the engine block. A large amount of trapped air can cause localized

heating to occur upon start-up. Localized heating may result in engine damage, which may lead to

failure of the engine.

8. Start the engine. Run the engine without the radiator cap until the thermostat opens and the coolant

level stabilizes.

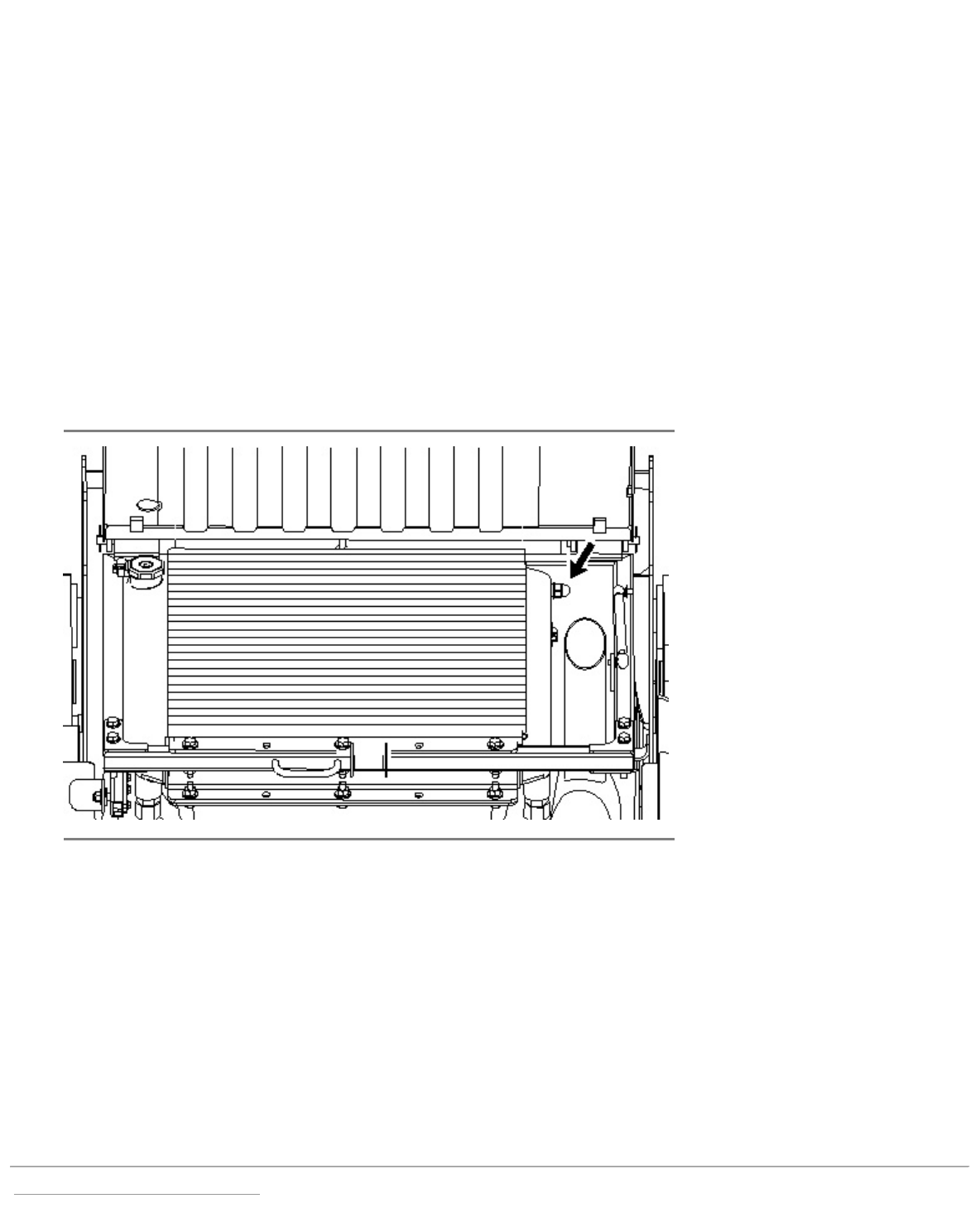

Illustration 4 g00956179

Note: The sight gauge for the coolant level is located on the right side of the radiator on machines

that are equipped with the 3024 engine. The sight gauge for the coolant level is located on the left

side of the radiator on machines that are equipped with the 3044 engine.

9. Maintain the coolant level in the sight gauge.

10. Stop the engine. Inspect the radiator cap and the gasket. Replace the cap if the cap or the gasket is

damaged. Install the radiator cap.

11. Pull the radiator guard downward.

12. Close the engine access door.
