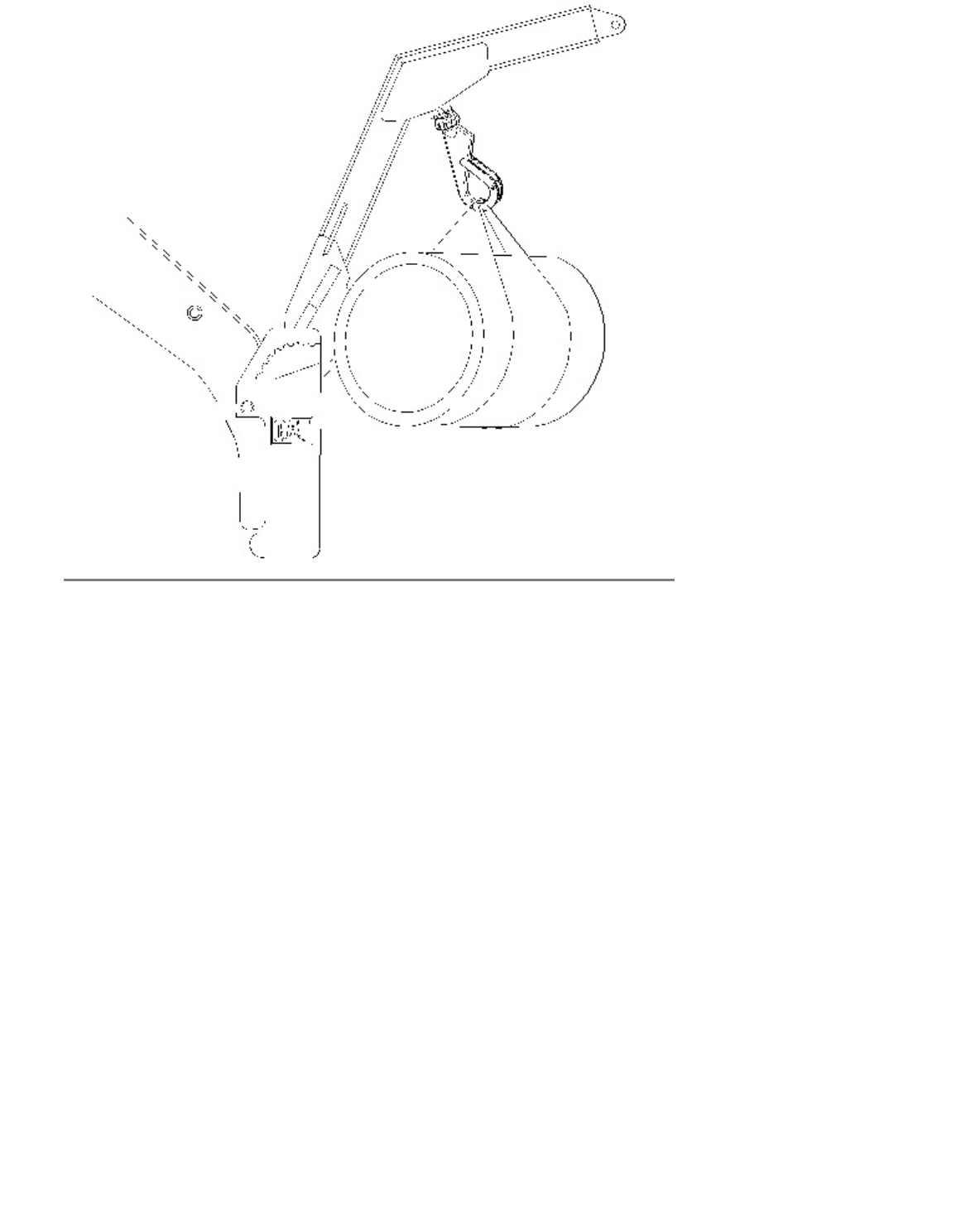

Illustration 5 g01020535

14. Install the position lock pin through the hole in the material handling arm and the hole in the loader

arm of the machine.

15. Secure the load to the tie-down points with a suitable line in order to minimize load swing.

Note: Do not move the load when you are securing the load. Do not pull the load toward the material

handling arm when you are securing the load to the tie-down points.

16. Remove the position lock pin and place the pin in the STORED position on the material handling arm.

Removing a Load

1. Fully tilt back the material handling arm. Fully lower the loader arms.

2. Stop the engine. Exit the machine.

3. Install the position lock pin through the hole in the loader arm of the machine.

4. Remove the line that secures the load to the tie-down points .

5. Remove the position lock pin and place the pin in the STORED position on the material handling arm.

6. Keep all personnel out of the work area.

7. Enter the machine. Start the engine.

8. Disengage the parking brake.

156
