CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 103

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i03415082

Seat Belt

SMCS - 7327

Note: This machine was equipped with a seat belt when the machine was shipped from Caterpillar. At the

time of installation, the seat belt and the instructions for installation of the seat belt meet the SAE J386 and

ISO 6683 standards. See your Caterpillar dealer for all replacement parts.

Always check the condition of the seat belt and the condition of the mounting hardware before you operate

the machine.

Seat Belt Adjustment for Non-Retractable Seat Belts

Adjust both ends of the seat belt. The seat belt should be snug but comfortable.

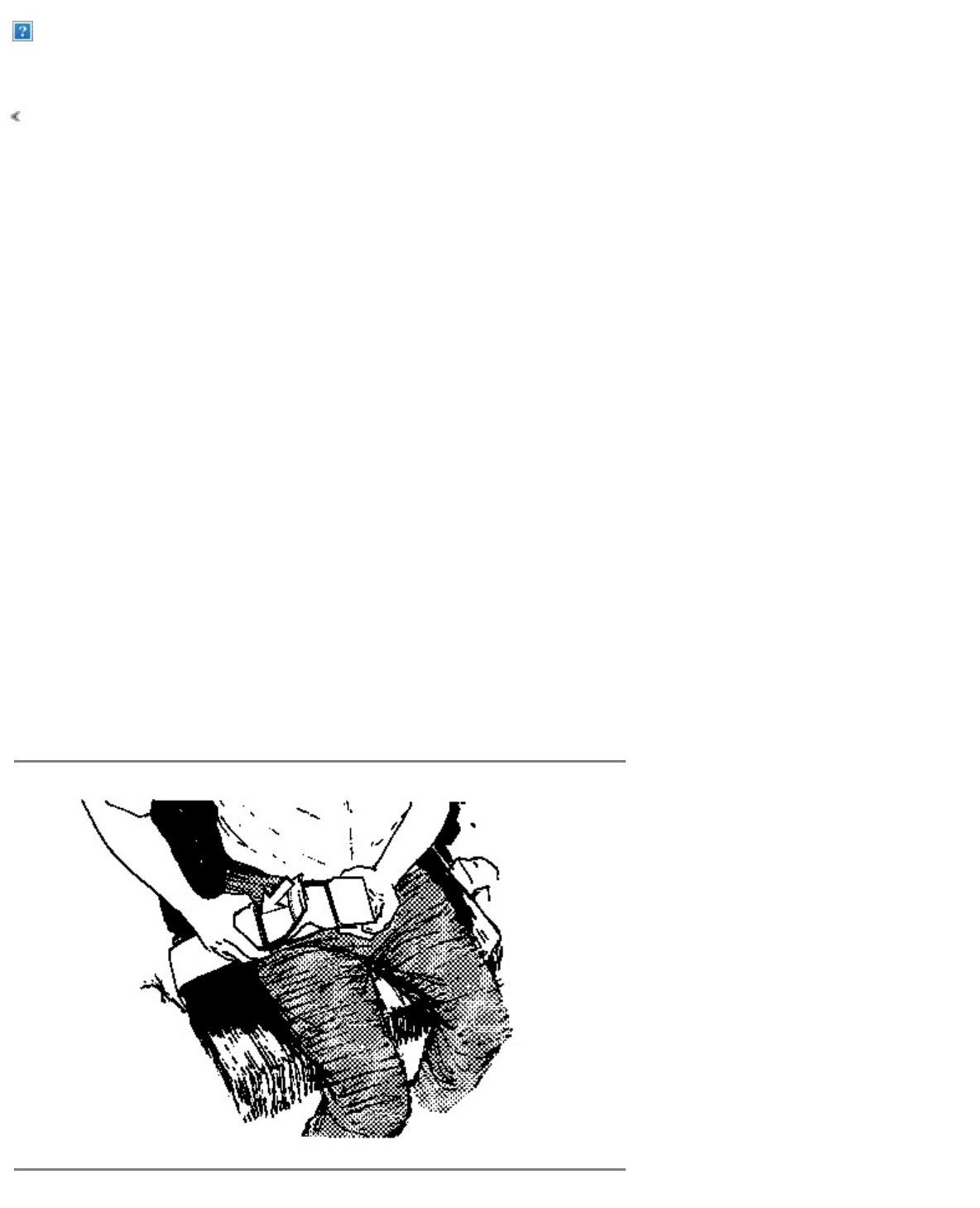

Lengthening the Seat Belt

Illustration 1 g00100709

Shutdown SIS

Previous Screen

102
