CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 196

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i01961564

Loader Lift Arm Brace Operation

SMCS - 6119-011-AB; 6119-012-AB

Loader lift arm brace must be in place when working under

raised lift arms.

Failure to follow the instructions or heed the warnings

could result in injury or death.

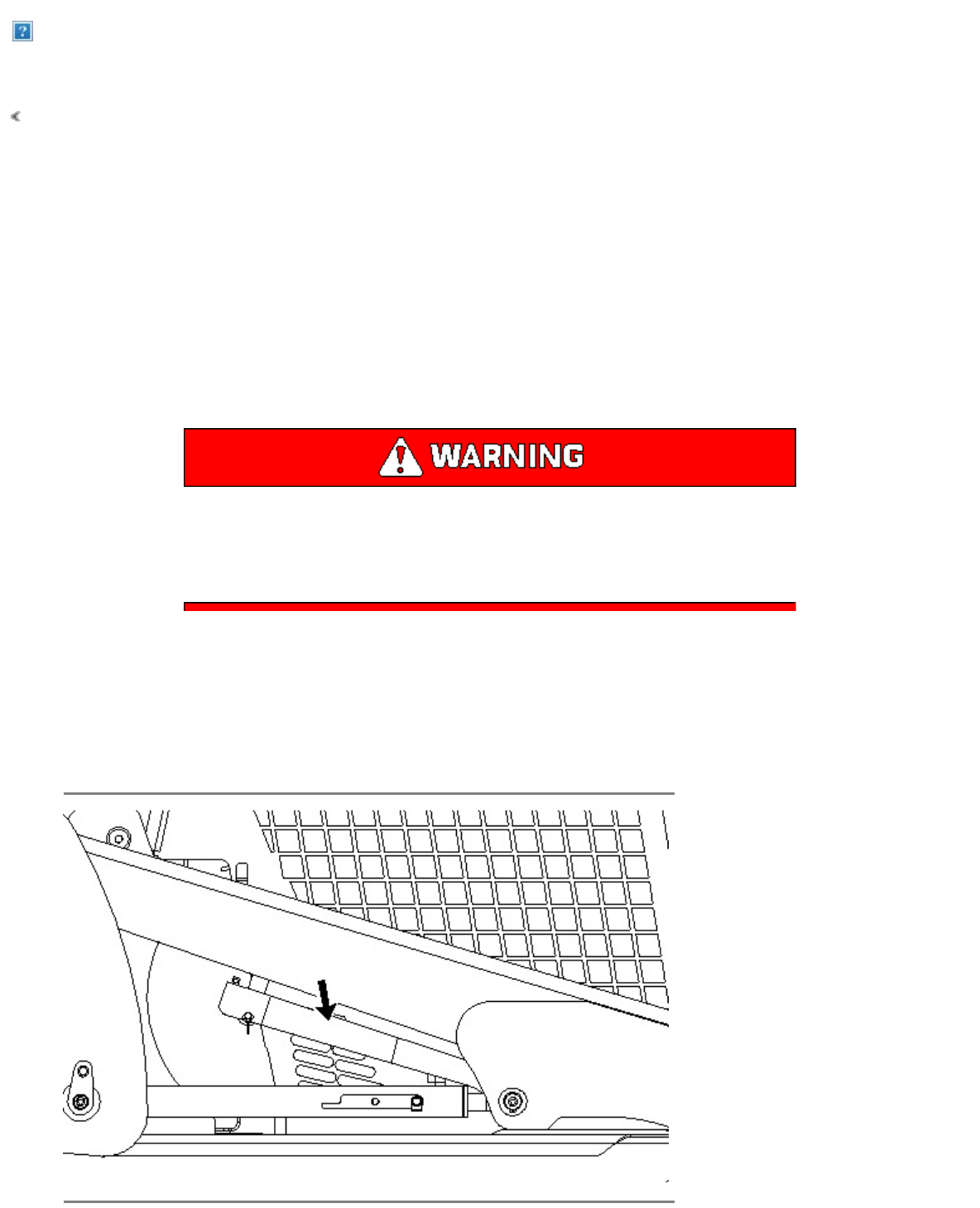

Engage the Lift Arm Brace (Radial Lift)

1. Empty the work tool. Remove the work tool. Park the machine on level ground. Lower lift arms to the

ground. Stop the engine and exit the machine.

Shutdown SIS

Previous Screen

195
