CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 304

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i01878236

Tilt Cylinder Bearings and Bucket Linkage Bearings - Lubricate

SMCS - 5104-086-BD; 6107-086-BD

Wipe all of the grease fittings before you apply lubricant.

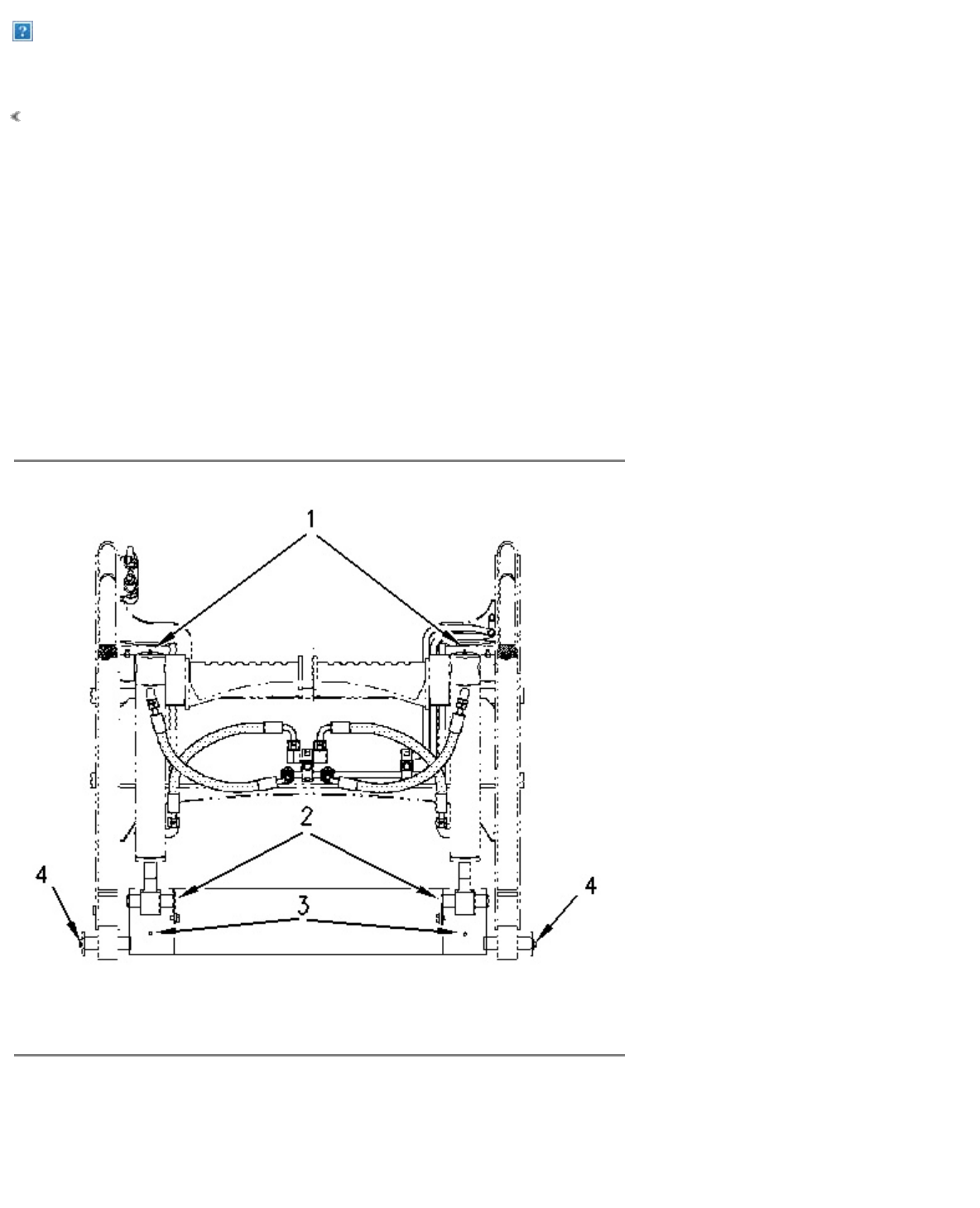

Illustration 1 g00955895

Note: Lubricate the fittings with the loader lift arms in the fully lowered position.

Apply lubricant to the grease fittings (1) for the upper bearings for the tilt cylinders.

Shutdown SIS

Previous Screen

303
