CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 313

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i01981264

Windows - Clean

SMCS - 7310-070

Use commercially available window cleaning solutions in order to clean the windows. The side windows of

the cab can be removed for cleaning. Refer to the following procedure in order to remove the side

windows.

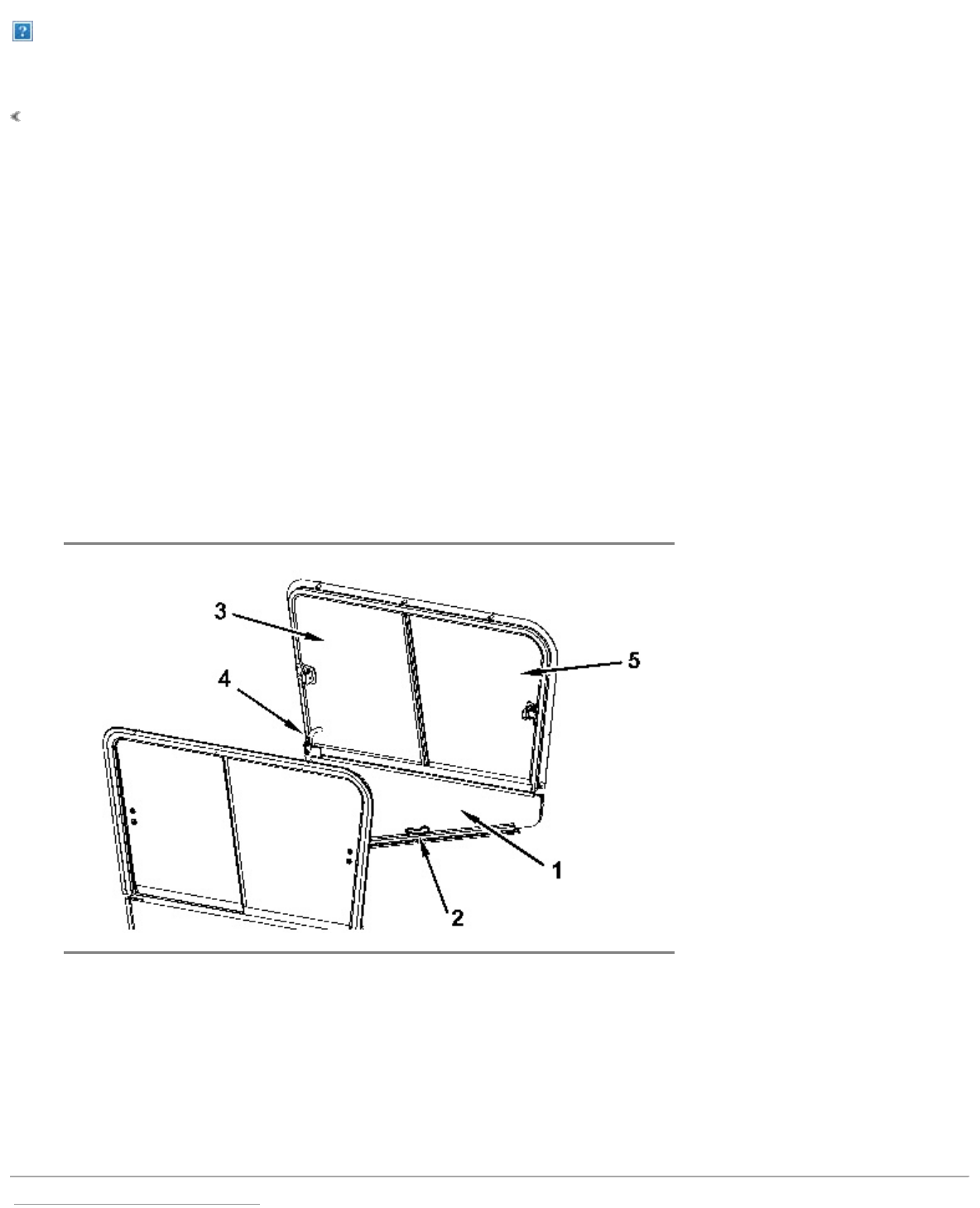

Illustration 1 g01026875

1. Release the latch (2) in order to remove the window (1). Pull downward on the window in order to

remove the window. Pull outward on the window in order to remove the window.

2. Release the latch (4) in order to remove the window (3). Pivot the channel for the window downward.

Pull the window outward in order to remove the window.

3. Slide the window (5) forward. Pull the window outward in order to remove the window.
