CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 154

Operation and Maintenance Manual

Page of 331

/ 331

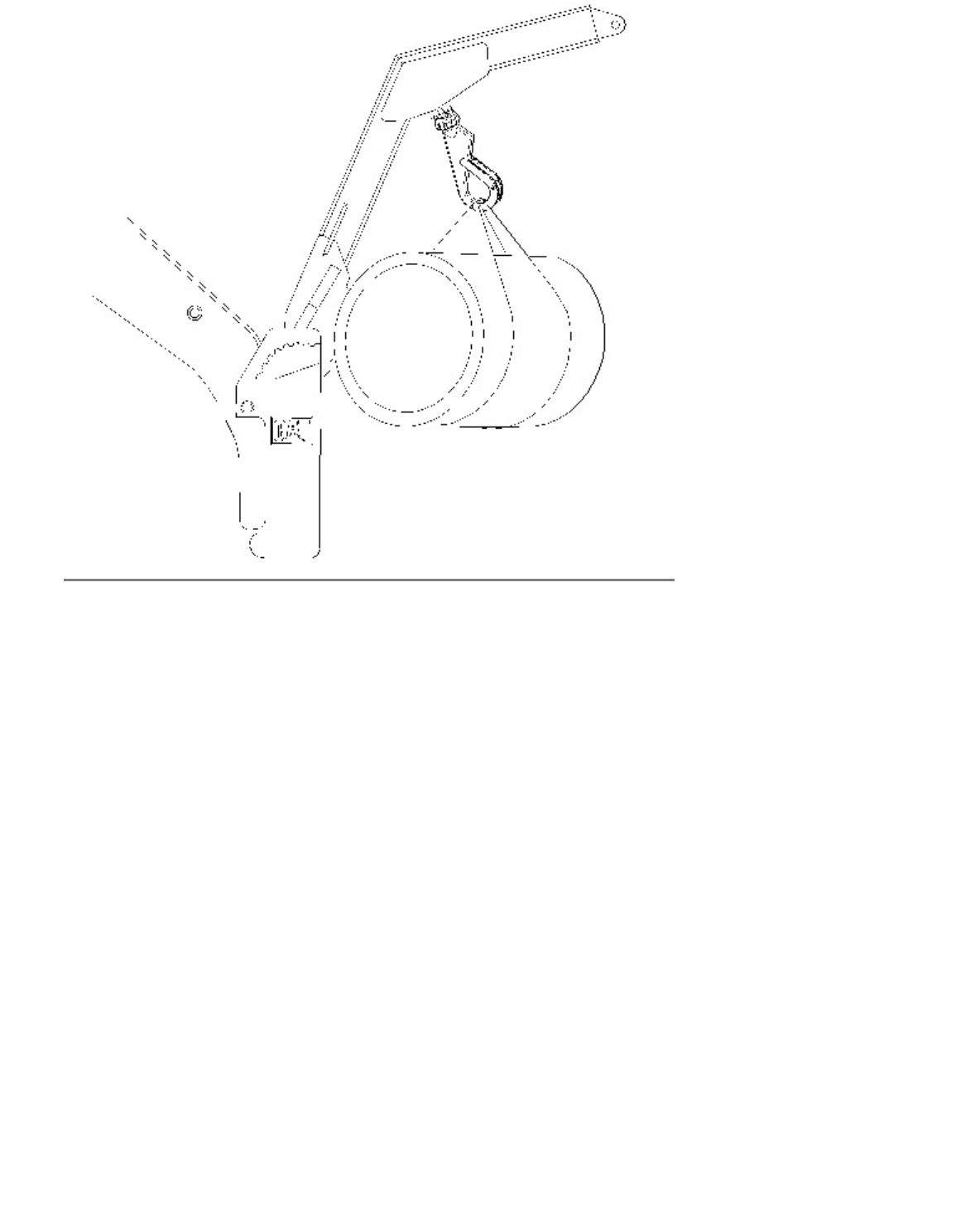

Illustration 3 g01020535

14. Wait as the second person installs the position lock pin through the hole in the material handling arm

and the hole in the loader arm of the machine.

Note: This will prevent the material handling arm from tilting forward.

15. Wait as the second person secures the load to the tie-down points with a suitable line in order to

minimize load swing.

Note: Do not move the load when you are securing the load. Do not pull the load toward the material

handling arm when you are securing the load to the tie-down points.

16. Wait as the second person removes the position lock pin. Wait as the second person places the pin in

the STORED position on the material handling arm.

Removing a Load

1. Slowly tilt back the material handling arm until the material handling arm is fully tilted back. Lower

the loader arms fully.

2. Stop the engine.

3. Wait as the second person installs the position lock pin through the hole in the material handling arm

and the hole in the loader arm of the machine.

4. Wait as the second person removes the line that secures the load to the tie-down points.

5. Wait as the second person removes the position lock pin. Wait as the second person places the pin in

153
