cab lights, panel lights, tail lights, working

lights (if equipped) and fuel gauge light are

operational even when the engine start

switch is in the OFF position.

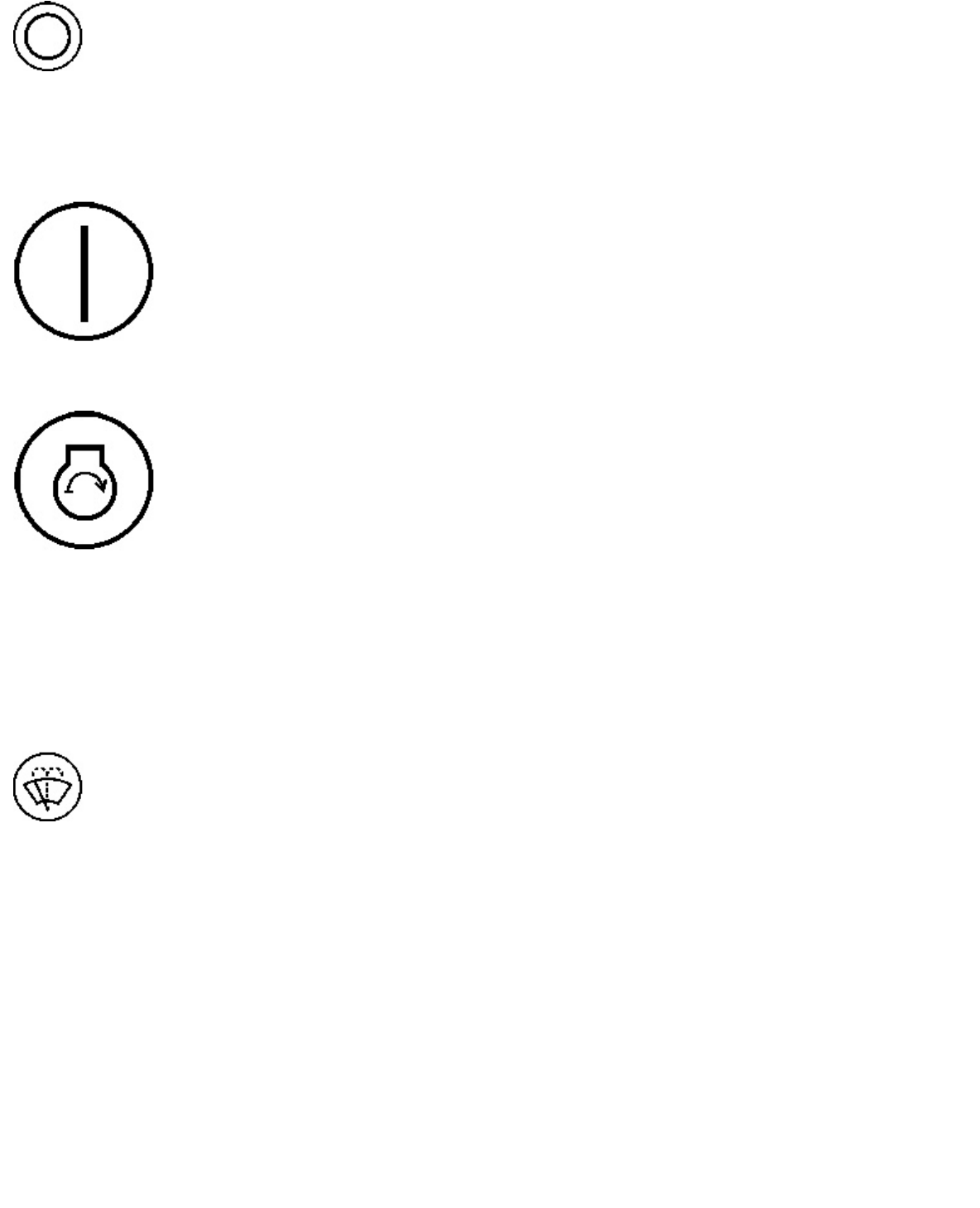

ON - Turn the engine start switch

key clockwise to the ON position in

order to activate all of the cab

circuits.

START - Turn the engine start

switch key clockwise to the START

position in order to crank the

engine. Release the engine start

switch key after the engine starts

and the engine start switch key

returns to the ON position.

Note: If the engine fails to start, the engine start switch key must be returned to the OFF position in order

to attempt to start the engine again.

Window Wiper and Window Washer (19)

Window Wiper and Window Washer -

Move the switch to the middle position in

order to turn on the wiper. Press on the

right side of the switch in order to operate

the washer. Press on the left side of the

switch in order to turn off the wipers.

Joystick Control (20)

Refer to the section "Joystick and Auxiliary Hydraulic Controls" for detailed information.

Joystick Control (21)

Refer to the section "Joystick and Auxiliary Hydraulic Controls" for detailed information.

Governor Control (22)

Governor Control - Use the governor control when you want to set a constant engine speed. Move the

lever forward in order to increase engine speed. Move the lever backward in order to decrease engine

speed.
