CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 223

Operation and Maintenance Manual

Page of 331

/ 331

Product: SKID STEER LOADER

Model: 226B SKID STEER LOADER MJH

Configuration: 216B 226B 232B 242B Skid Steer Loader MJH00001-10574

(MACHINE) POWERED BY 3024C Engine

Operation and Maintenance Manual

216B, 226B, 232B, 236B, 242B, 246B, 248B, 252B, 262B and 268B Skid Steer Loaders

Media Number -SEBU7731-08 Publication Date -01/07/2007 Date Updated -16/07/2007

i01962545

Cab Air Filter - Clean/Replace - If Equipped

SMCS - 7342-070; 7342-510

Fresh Air Filter

1. Raise the loader lift arms. Install the brace for the loader lift arm. Refer to Operation and Maintenance

Manual, "Loader Lift Arm Brace Operation".

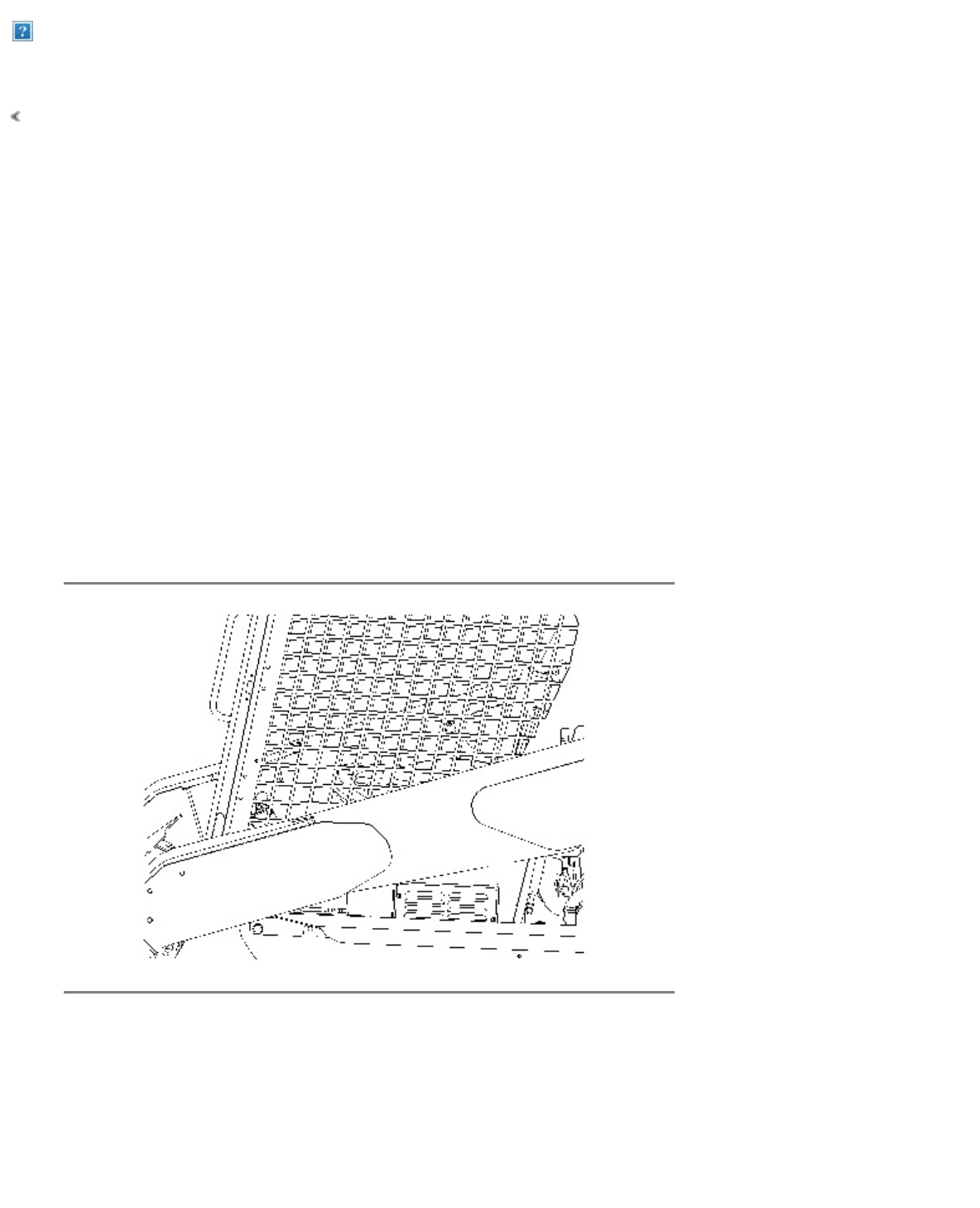

Illustration 1 g01019732

2. Remove the filter cover.

3. Remove the seal from the cover and inspect the seal. If the seal is damaged replace the seal.

4. Remove the air filter element from the cover and clean the filter element with low pressure air.

Replace the element if the element is damaged.
