CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 132

Operation and Maintenance Manual

Page of 331

/ 331

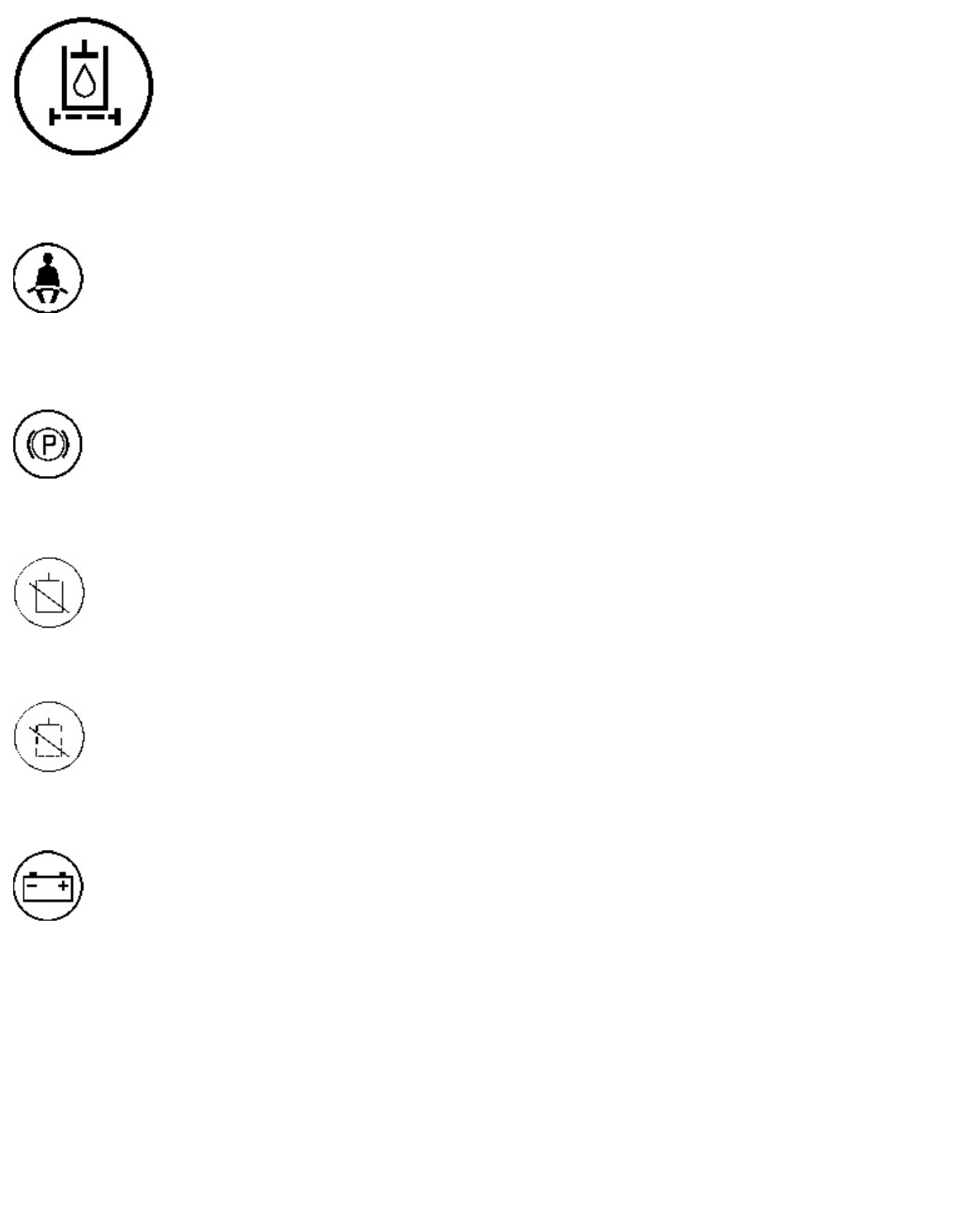

Hydraulic Oil Filter (4) - This

indicator will light when the

hydraulic oil filter is not functioning

properly. Stop the machine and

replace the oil filter. The indicator

will stay on until the hydraulic oil

has warmed up. Do not operate the

machine until the light turns off.

Seat and Armrest (5) - This alert indicator

will light when the armrest is in the RAISED

position. The alert indicator will light when

the operator gets out of the operator seat.

The alert indicator should go out when the

operator is in the operator seat and the

armrest is in the LOWERED position.

Parking Brake (6) - This alert indicator

will light when the parking brake is

engaged. The alert indicator should come on

during start-up. The alert indicator should

go out when the parking brake is

disengaged.

Implement Lockout (7) - This alert

indicator will light when the implement

lockout control is activated.

Interlock Override (8) - This alert

indicator will light when interlock override is

activated.

Charging System (9) - This alert indicator

will light if there is a malfunction in the

electrical system. If this alert indicator

comes on, the system voltage is too high for

normal machine operation or too low for

normal machine operation.

If electrical loads are high and the engine speed is near low idle, increase the engine speed to high idle.

This will generate more output from the alternator. If the alert indicator for the electrical system turns off

within one minute, the electrical system is probably operating in a normal manner. However, the electrical

system may be overloaded during periods of low engine speeds.

Increase the engine idle speed with the governor lever in order to compensate for a higher electrical load

on the system.

If this procedure does not cause the alert indicator to turn off, move to a convenient location. Investigate

the cause (loose alternator belt, broken alternator belt, faulty batteries, etc).

131
