CAT 226B SKID STEER LOADER MJH Operation and Maintenance Manual Page 236

Operation and Maintenance Manual

Page of 331

/ 331

Note: The sight gauge for the coolant level is located on the right side of the radiator on machines

that are equipped with the 3024 engine. The sight gauge for the coolant level is located on the left

side of the radiator on machines that are equipped with the 3044 engine.

3. Maintain the coolant to the top of the sight gauge with the radiator in the LOWERED position.

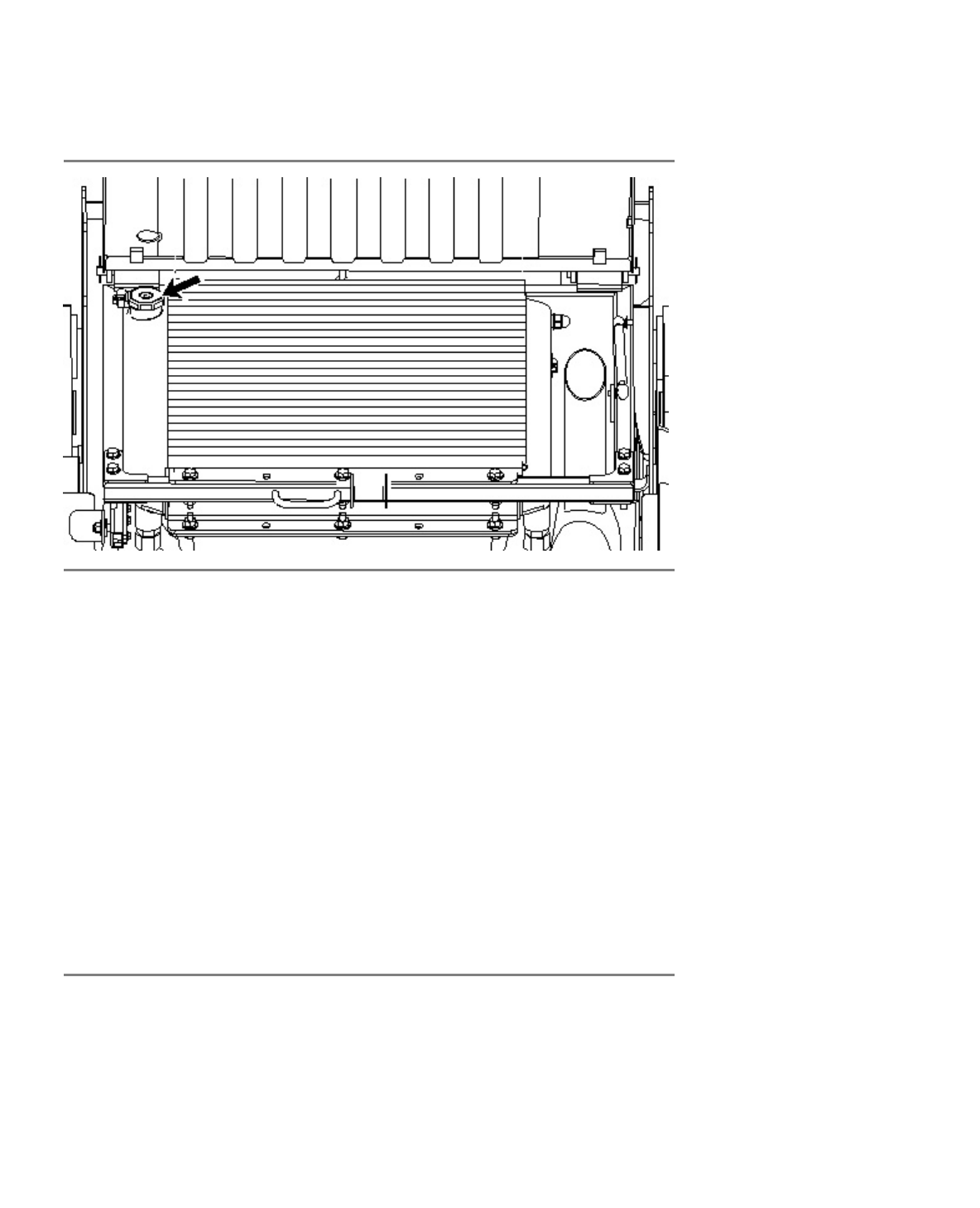

Illustration 2 g00956151

Note: The radiator cap is located on the left side of the radiator on machines that are equipped with

the 3024 engine. The radiator cap is located on the right side of the radiator on machines that are

equipped with the 3044 engine.

4. If you need to add coolant to the radiator, Remove the radiator cap slowly in order to relieve system

pressure.

Note: Inspect the cooling system hoses for any leaks, cracks, or signs of deterioration. Replace any

damaged hoses.

5. Inspect the radiator cap and the gasket. Replace the cap if the cap or the gasket is damaged. Install

the radiator cap.

6. Tilt the radiator guard downward.
