C27 and C32 Generator Sets Engines Disassembly and Assembly Page 97

Disassembly and Assembly
RENR9716-02 97
Disassembly and Assembly Section
i02581037
Fuel Pressure Sensor -
Remove and I nstall
SMCS Code: 7414-010
Removal Procedure
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjustin
g and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containi
ng fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Servic
e Tool Catalog” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Turn the fuel
supply valve to the OFF position.

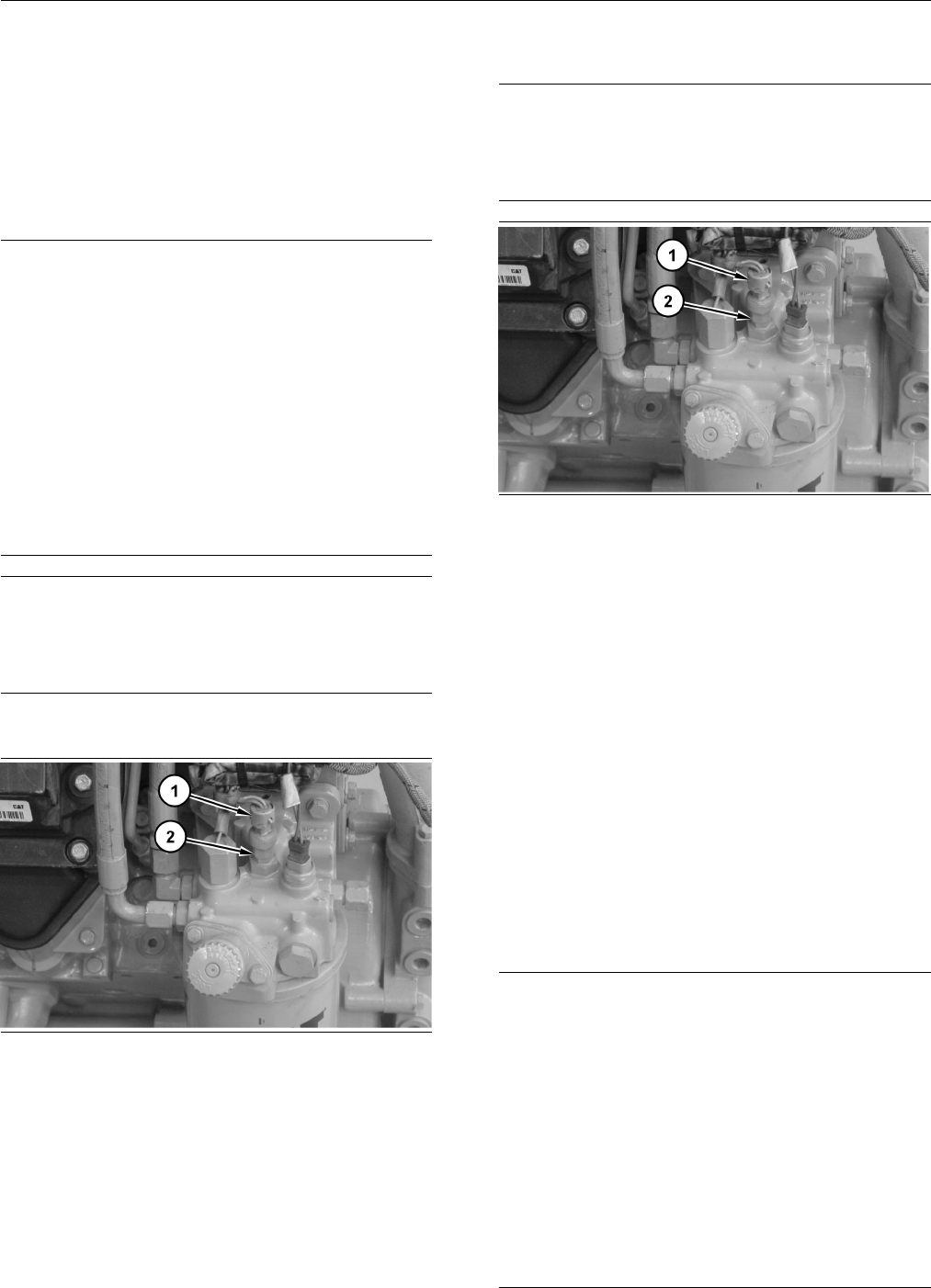

g01292812
Illustration 274
2. Disconnect harness assembly (1).
3. Remove fuel pressure sensor (2) from the fuel
filter base.
4. Remove the O-ring seal from fuel pressure sensor
(2).
Installation P
rocedure
NOTICE
Keep all parts c
lean from contaminants.
Contaminants may cause rapid wear and shortened
component life
.
g01292812
Illustration 275
1. Install a new O-ring seal on fuel pressure sensor
(2).
2. Install fuel pressure sensor (2). Tighten fu el
pressure sensor (2) to a torque of 10 ± 2 N·m
(90 ± 18 lb in).
3. Connect harness assembly (1).
4. Turn the fuel supply valve to the ON position.
i02581061
Fuel Temperature Sens or -
Remove and Install
SMCS Code: 1922-010
Removal Procedure
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjus
ting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent conta
ining fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Ser
vice Tool Catalog” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
