C27 and C32 Generator Sets Engines Disassembly and Assembly Page 42

Disassembly and Assembly
42 RENR9716-02
Disassembly and Assembly Section
g01290917
Illustration 121

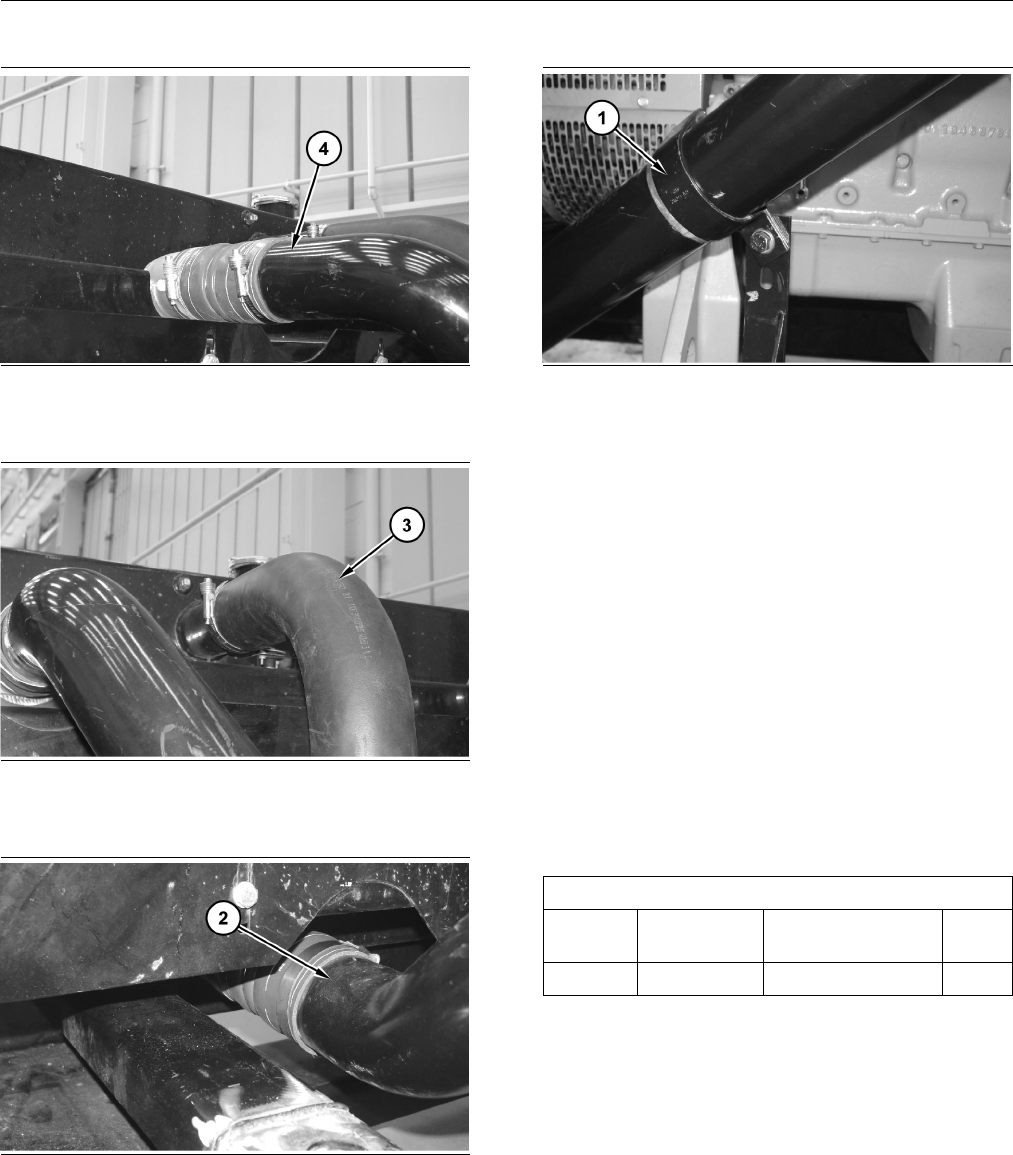

8. Connect top aftercooler tube (4).
g01290916
Illustration 122
9. Connect top radiator hose (3).
g01290915
Illustration 123
10. Connect bottom aftercooler tube (2).
g01290908
Illustration 124
11. Install clamp (1). Repeat for the opposite side.
12. Fill the cooling system with coolant. Refer to
Operation and Maintenance Manual, “Cooling
System Coolant (ELC) - Change”.
End By:
a. Install the fan. Refer to Disassembly and
Assembly, “Fan - Remove and Install”.
i02581106
Radiator Co
re - Remove
SMCS Code: 1353-011; 1353-011-KO
Removal Procedure
Table 30
Required To
ols
Tool
Part
Number
Part Descri
ption
Qty
A
138-7575
Link Bracke
t
2
Start By:
a. Remove the aftercooler. Refer to Disassembly
and Assembl
y, “Aftercooler - Remove”.
