C27 and C32 Generator Sets Engines Disassembly and Assembly Page 45

Disassembly and Assembly
RENR9716-02 45
Disassembly and Assembly Section

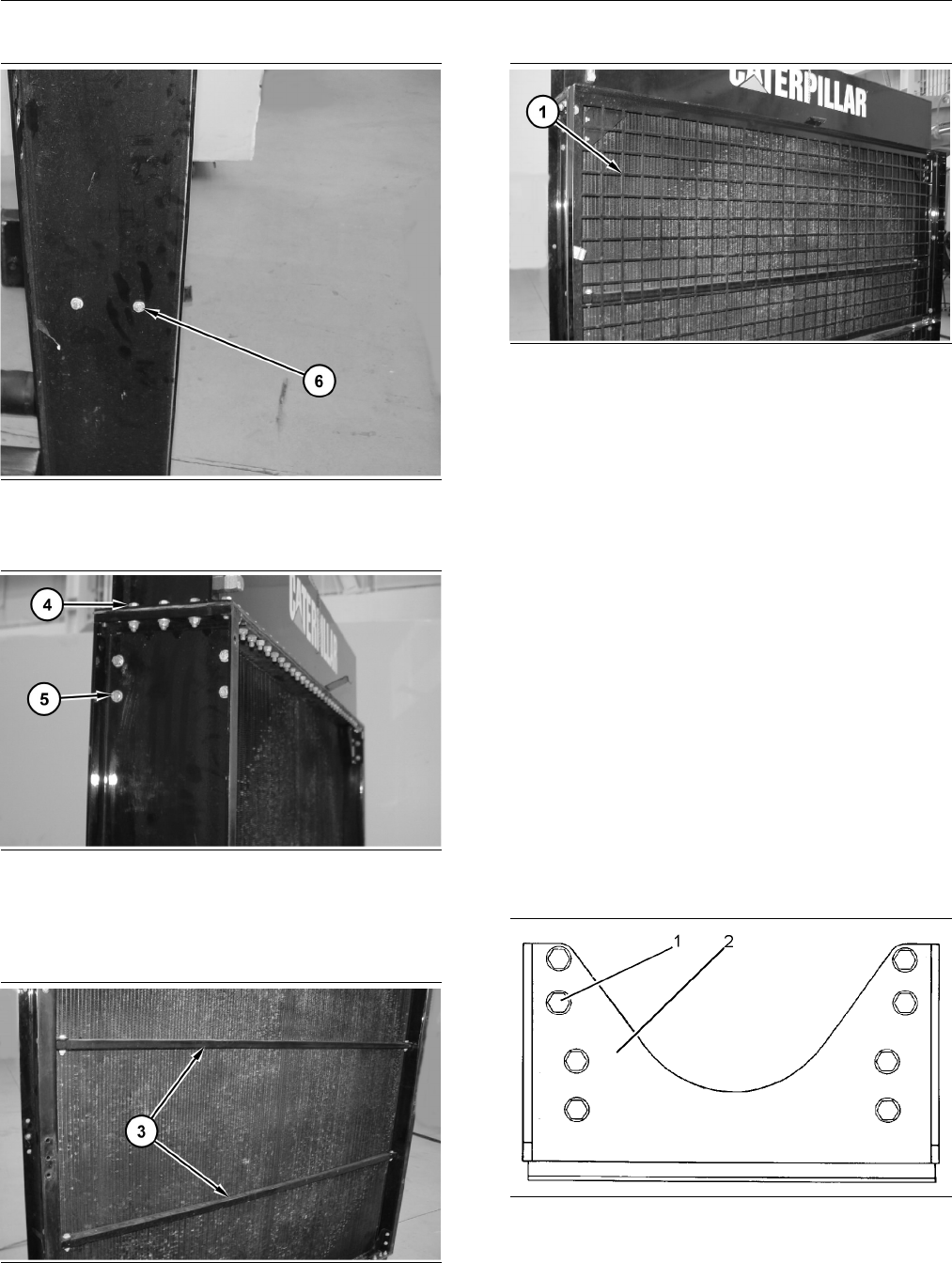

g01294579
Illustration 135
4. Install bolts (6).
g01294578
Illustration 136
5. Install bolts (4) and bolts (5).
6. Repeat Steps 3 through 5 for the opposite side.
g01294577
Illustration 137
7. Install the upper and the lower braces (3).
g01292911
Illustration 138
8. Install the upper and the lower radiator guards (1).
End By:
a. Install the aftercooler. Refer to Disassembly and
Assembly, “Aftercooler - Install”.
i02444868
Engine Support (Front) -
Remove and I
nstall
SMCS Code: 1154-010-FR
Removal Procedure (Type 1)
Start By:
a. Remove the v
ibration damper and the pulley.
Refer to Disassembly and Assembly, “Vibration
Damper and Pulley - Remove and Install”.
1. Support the front of the engine.
g01221659
Illustration 139
2. Remove bolts ( 1).
3. Remove engine support (2).
