C27 and C32 Generator Sets Engines Disassembly and Assembly Page 47

Disassembly and Assembly
RENR9716-02 47
Disassembly and Assembly Section
NOTICE
Care must be taken to ensure that fluids are contained
during perform
ance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compar
tment or disassembling any compo-
nent containing fluids.
Refer to Speci
al Publication, NENG2500, “Caterpillar
Dealer Service Tool Catalog” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01219485

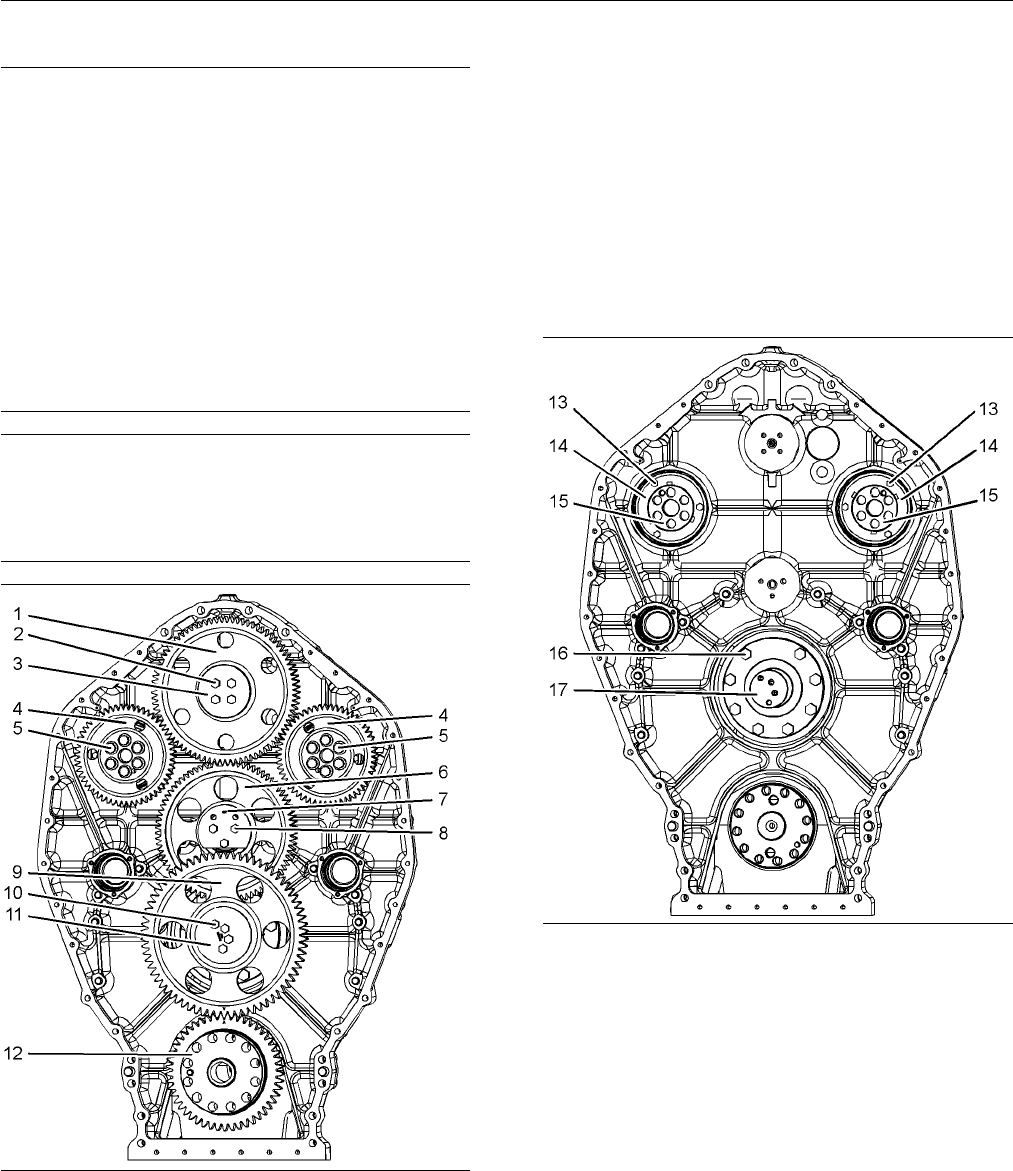

Illustration 143
1. Remove bolts (10), thrust plate (11), and gear
assembly (9).
2. UseTooling(A)andasuitablepresstoremove
the bearing from gear assembly (9).
3. Remove bolts (8), gear assembly (6), and shaft
assembly (7).
4. Use Tooling (A) and a suitable press to remove
the bearing fro
m gear assembly (6).
5. Remove bolts (2), gear assembly (1), and shaft
assembly (3).
6. Use Tooling (A) and a suitable press to remove
the bearing fr
om gear assembly (1).
7. Remove gear assembly (12).
8. Remove bolts (5) and gear assemblies (4).
g01219500
Illustration 144
9. Remove bo
lts (16) and shaft assembly (17).
10. Remove bolts (13), thrust plates (14), and adapter
assembli
es (15).
11. Use bolt (13) in order to remove the sealing
plates. R
emove the O-ring seals.
