C27 and C32 Generator Sets Engines Disassembly and Assembly Page 56

Disassembly and Assembly
56 RENR9716-02
Disassembly and Assembly Section

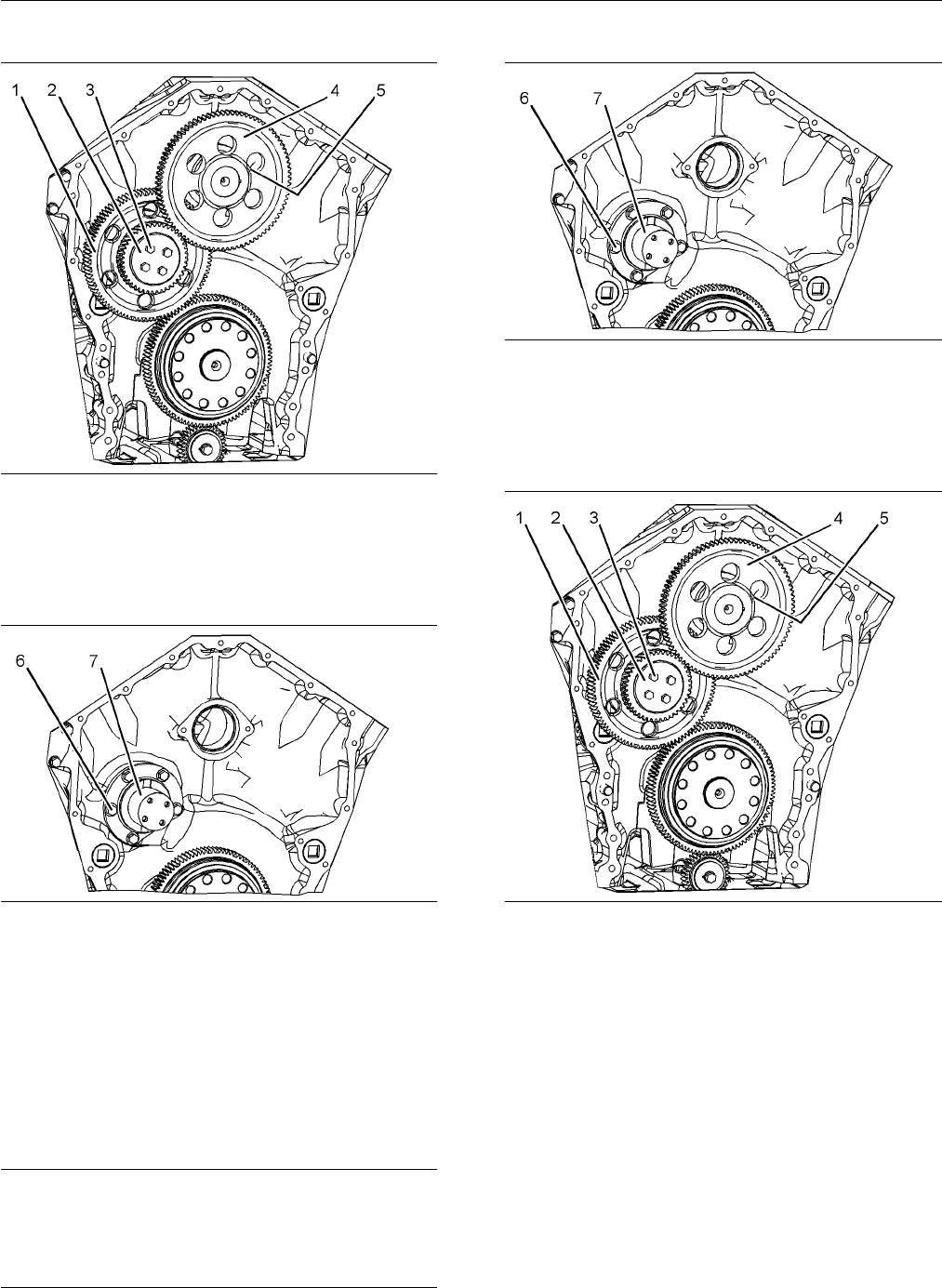

g01147593
Illustration 165
1. Remove bolts (5) and gear assembly (4).
2. Remove bolts (3) and plate (2). Remove gear
assembly (1).
g01147620
Illustration 166
3. Remove bolts (6) and shaft (7).
i02691256
Gear Grou p (Fro nt ) - Install
SMCS Code: 1206-012
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01147620
Illustration 167
1. Apply clean engine oil to shaft (7), the bearing
bore, and the thrust faces prior to installation.
Install shaft (7) and bolts (6). Tighten bolts (6) to a
torqueof55±10N·m(41±7lbft).
g01147593
Illustration 168
2. Position gear assembly (1) on the shaft. Install
plate (2) and bolts (3).
3. Install gear assembly (4) and bolts (5).
End By:
a. Install the front housing. Refer to Disassembly and
Assembly, “Housing (Front) - Install”.
