C27 and C32 Generator Sets Engines Disassembly and Assembly Page 54

Disassembly and Assembly
54 RENR9716-02
Disassembly and Assembly Section

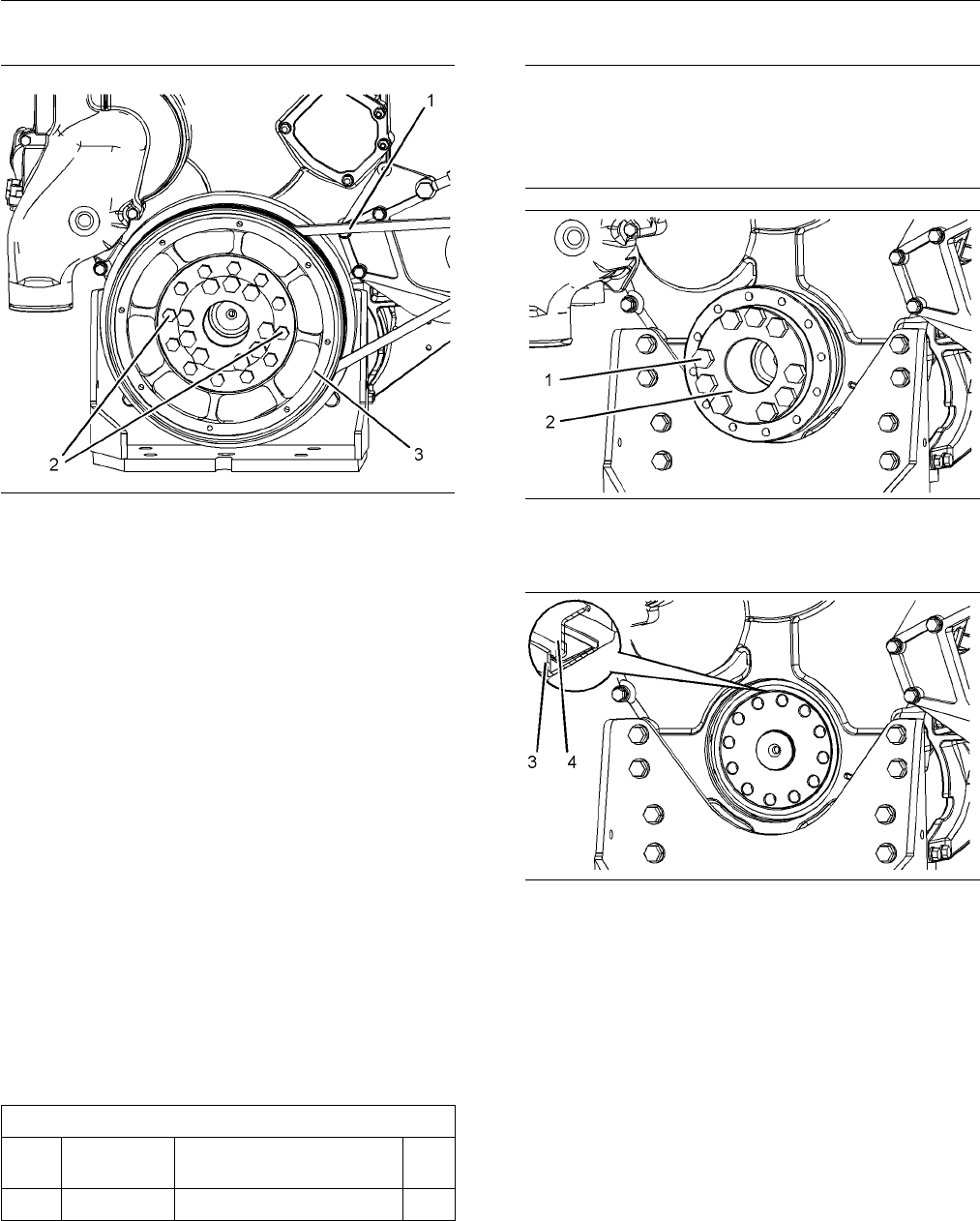

g01221066
Illustration 160
1. Install Tooling (A) in the adapter.
2. Attach a suitable lifting device onto vibration
damper (4). The weight of vibration damper (4)
is approximately 34 kg (75 lb). Position vibration
damper (4) on the adapter.
3. Install pulley (3) and bolts (2).
4. Remove Tooling (A). Install remaining bolts (2).
Tighten bolts (2) to a torque of 135 ± 20 N·m
(100±15lbft).
5. Install V-belt (1) on the engine.
i02444403
Crankshaft Front Seal -
Remove
SMCS Code: 1160-011
Removal Procedure
Table 42
Required Tools
Tool
Part
Number Part Description Qty
A 1U-7600
Slide Hammer Puller
1
Start By:
a. Remove the crankshaft vibration damper and
pulley. Refer to Disassembly and Assembly,
“Vibrat
ion Damper and Pulley - Remove and
Install”.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01221272
Illustration 161
1. Remove bolts (1) and adapter (2).
g01221276
Illustration 162
2. Use Tooling (A) or a punch and hammer in order
to puncture three or more holes in crankshaft front
seal (4).
3. Use Tooling (A) to remove crankshaft front seal
(4).
4. If necessary, use Tooling (A) or a punch and
hammer in
order to puncture three or more holes
in crankshaft wear sleeve (3). Use Tooling (A) to
remove crankshaft wear sleeve (3).
