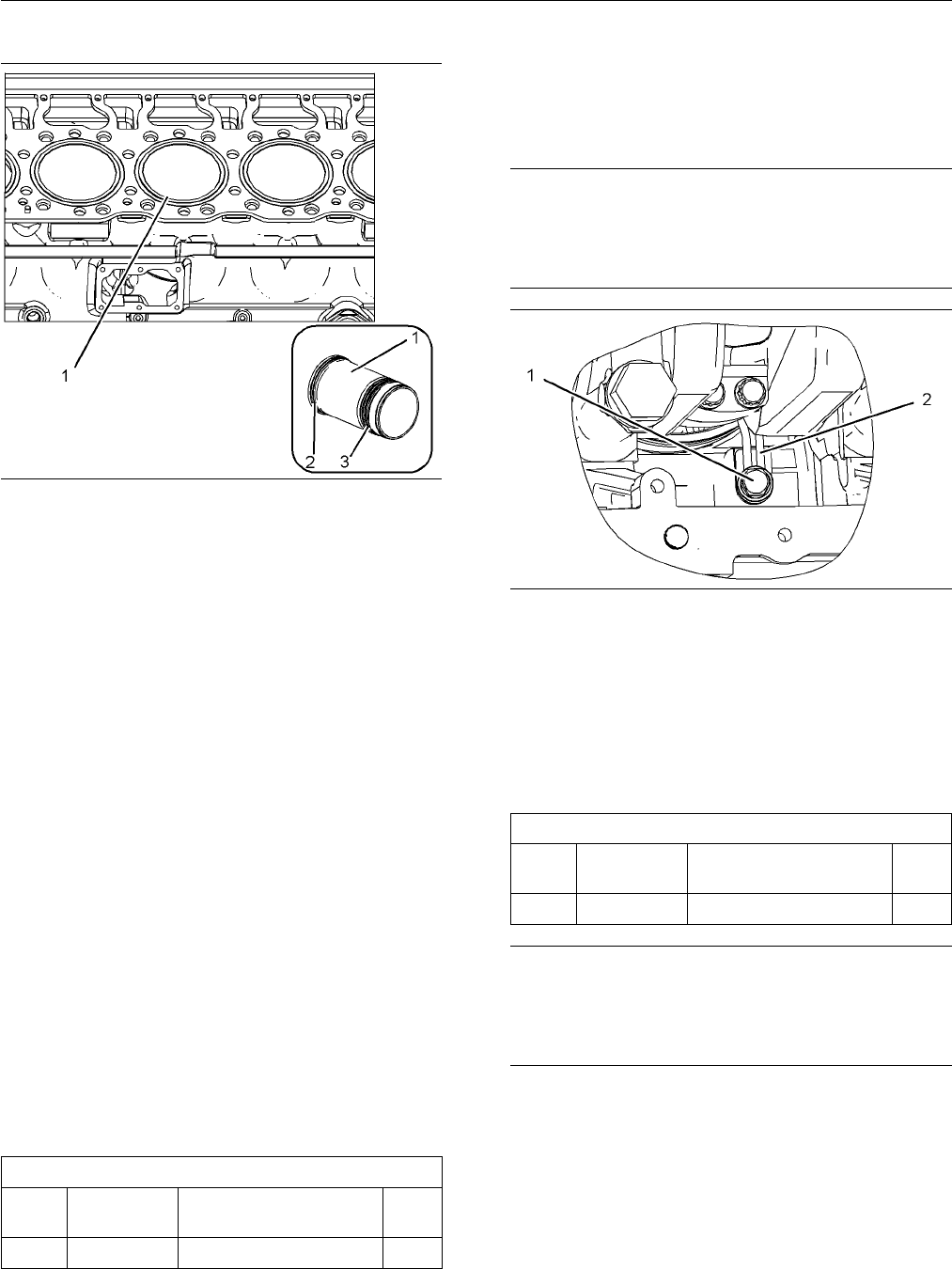

2. Install liner seals (3) on cylinder liner (1).
3. Apply Tooling (C) on the cylinder block liner bore
surfaces and liner seals (3).
4. Dip fi ller band (2) in clean engine oil for a
moment. Install the filler band on the cylinder liner
immediately.
5. Use Tooling (B) to install cylinder liner (1) in the
cylinder block. Ensure that any marks in relation
to the cylinder liner projection are in alignment.
End By:
a. Install the pistons and connecting rods. Refer
to Disassembly and Assembly, “Pistons and
Connecting Rods - Install”.
i02295020
Piston Cooling Jets - Remove
and Install
SMCS Code: 1331-010
Removal Procedure
Table 58
Required Tools
Tool
Part
Number Part Description
Qty
A
9S-9082
Engine Turning Tool 1
Start By:
a. Remove the engine oil pump. Refer to
Disassembly and Assembly, “Engine Oil Pump
- Remove”.
NOTICE
Keep all parts clean from contaminants.
Contaminants
may cause rapid wear and shortened
component life.
g01149484
Illustration 241
1. Use Tooling (A) to rotate the crankshaft in order to
gain access to the piston cooling jet.
2. Remove bolt (1) and piston cooling jet (2).
Installation Procedure
Table 59
Required Tools
Tool
Part
Number Part Description
Qty
A 9S-9082 Engine Turning Tool 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
