C27 and C32 Generator Sets Engines Disassembly and Assembly Page 49

Disassembly and Assembly
RENR9716-02 49
Disassembly and Assembly Section
8. Install shaft assembly (3), gear assembly (1), and
bolts (2).
9. Use Tooling (A) and a suitable press to install the
bearing in gea
r assembly (6). Install the bearing to
a depth of 2.6 ± 0.5 mm (0.10 ± 0.02 inch).
10. Install shaft
assembly (7), gear assembly (6), and
bolts (8).
11. UseTooling(A
) and a suitable press to install the
bearing in gear assembly (9). Install the bearing to
a depth of 2.5 ± 0.5 mm (0.10 ± 0.02 inch).
Note: Align the Timing Mark on gear assembly (9)
withtheTimingMarkongearassembly(12).
12. Install gear assembly (9), thrust plate (11), and
bolts (10).
13. Tighten the bolts on gear assemblies (4) to a
torque of 240 ± 40 N·m (177 ± 30 lb ft). Tighten
the bolts in
thefollowingsequence:1,4,2,5,3,
6, 1, 4.
End By:
a. Install the flywheel housing. Refer to Disassembly
and Assembl
y, “Flywheel Housing - Remove and
Install”.
i02752668
Flywheel - Remove and Install
SMCS Code:
1156-010
Removal Pr
ocedure
Table 34
Required Tools
Tool
Part
Number Part Description Qty
A
-
Guide Stud
5/8 - 18 UNF by 11 inch
2
g01220437

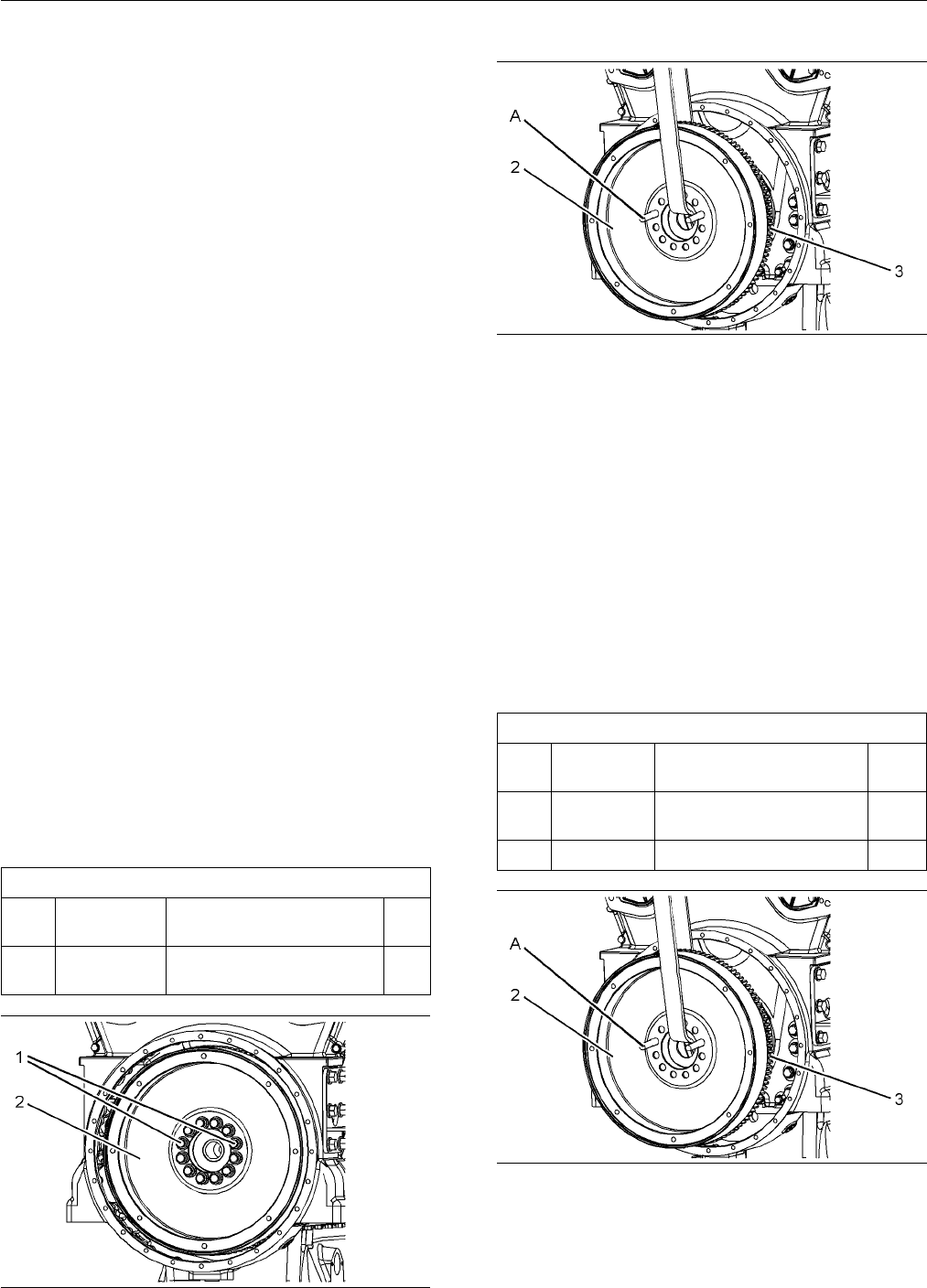

Illustration 148
g01220438
Illustration 149
1. Remove two bolts (1). Install Tooling (A) in the
crankshaft.
2. Remove remaining bolts (1). Slide flywheel (2)
away from the engine on Tooling (A).
3. Attach a suitable lifting device to flywheel (2). The
weight of flywheel (2) is approximately 130 kg
(285 lb). Remove flywheel (2).
4. If necessary, use a hammer and a punch in order
to remove ring gear (3) from flywheel (2).
Installation Procedure
Table 35
Required Tools
Tool
Part
Number Part D escription Qty
A
-
Guide Stud
5/8 - 18 UNF by 11 inch
2
B
6V-4876
Lubricant
-
g01220438
Illustration 150
