C27 and C32 Generator Sets Engines Disassembly and Assembly Page 76

Disassembly and Assembly
76 RENR9716-02
Disassembly and Assembly Section
i02451045
Camshaft Bearings - Remove
SMCS Code: 1211
-011
Removal Proced
ure
Table 52
Required Tools
Tool Part Number Pa rt Description Qty
A
8S-2241
Camshaft Bearing Tool
Group
1
9U-7222
Camshaft Bearing Pilot
1
B
8M-8778
Taperlock Stud
1/2 - 13 by 1 9/16 inch
1
C
9U-7210
Puller Plate 1
Start By:
a. Remove the camshaft. Refer to Disassembly and
Assembly,“Camshaft-Remove”.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01159745

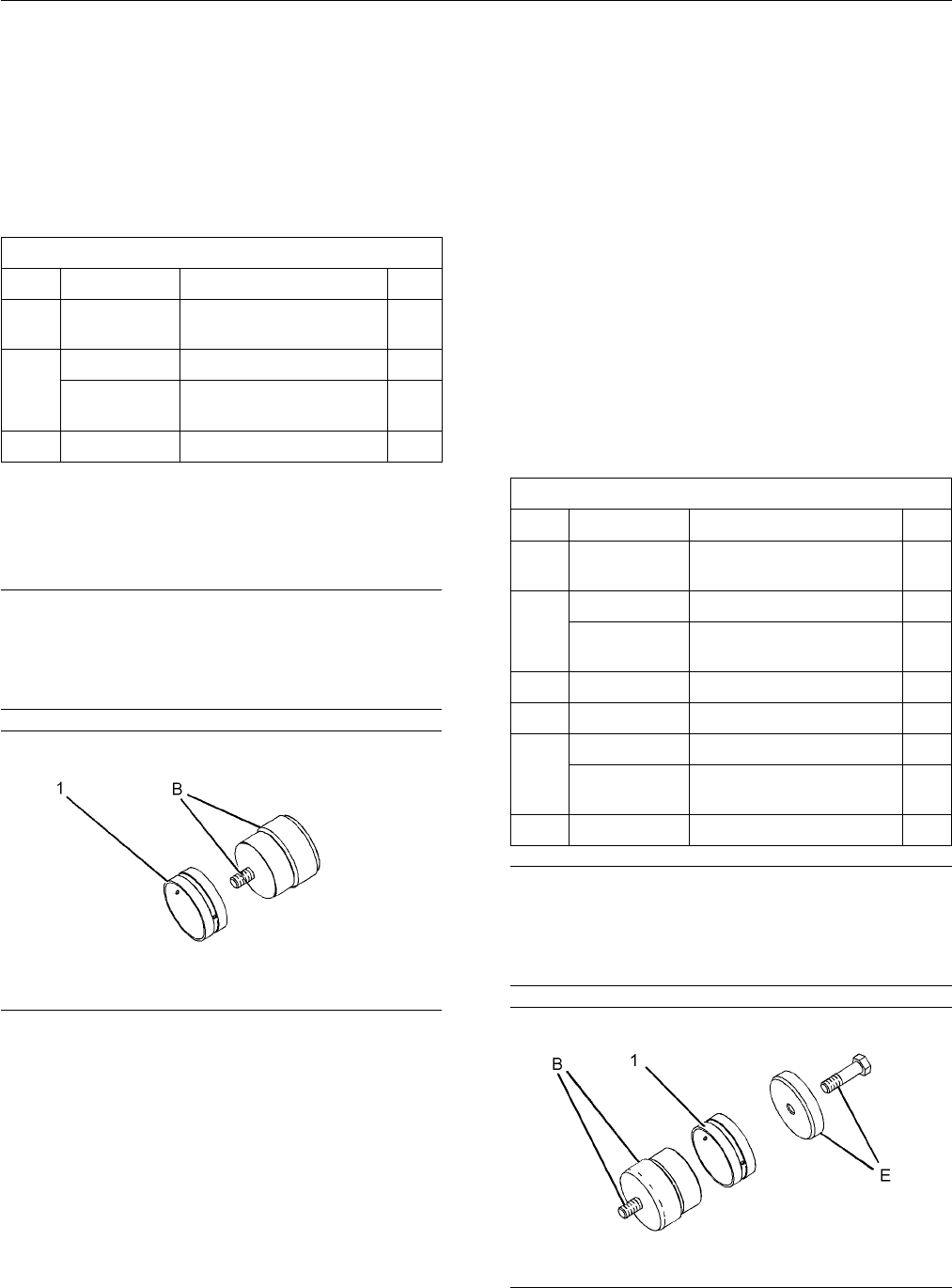

Illustration 233
1. Remove the No. 7 camshaft bearing (rear). Work
from the rear of the engine to the front of the
engine.
2. Install the small end of Tooling (B) in camshaft
bearing (1).
3. Position Tooling (C) over Tooling (A). Install
Tooling (A) through the cylinder head on Tooling
(B).
Note: Tooling(C)isinstalledontheoutsideofthe
cylinder head.
Tooling (C) is required in order to
remove all the camshaft bearings from the cylinder
head.
4. Use Tooling (A) to remove camshaft bearing (1)
from the cylinder head.
5. Remove Tooling (B) from Tooling (A) and remove
the camshaft bearing.
i02451063
Camshaft Bearings - Install
SMCS Code: 1211-012
Installation Procedure
Table 53
Required Tools
Tool Part Number Part Description Qty
A 8S-2241
Camshaft Bearing Tool
Group
1
9U-7222
Camshaft Bearing Pilot
1
B
8M-8778
Taperlock Stud
1/2-13by19/16inch
1
C
9U-7210
Puller Plate
1
D 9U-7223 Alignment Bushing 1
9U-7213
Backup Plate 1
E
0S-1621
Bolt
1/2 - 13 by 1 inch
1
F
9U-7214
Spacer Pla
te 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01159754
Illustration 234
