11. Connect clamp (10).

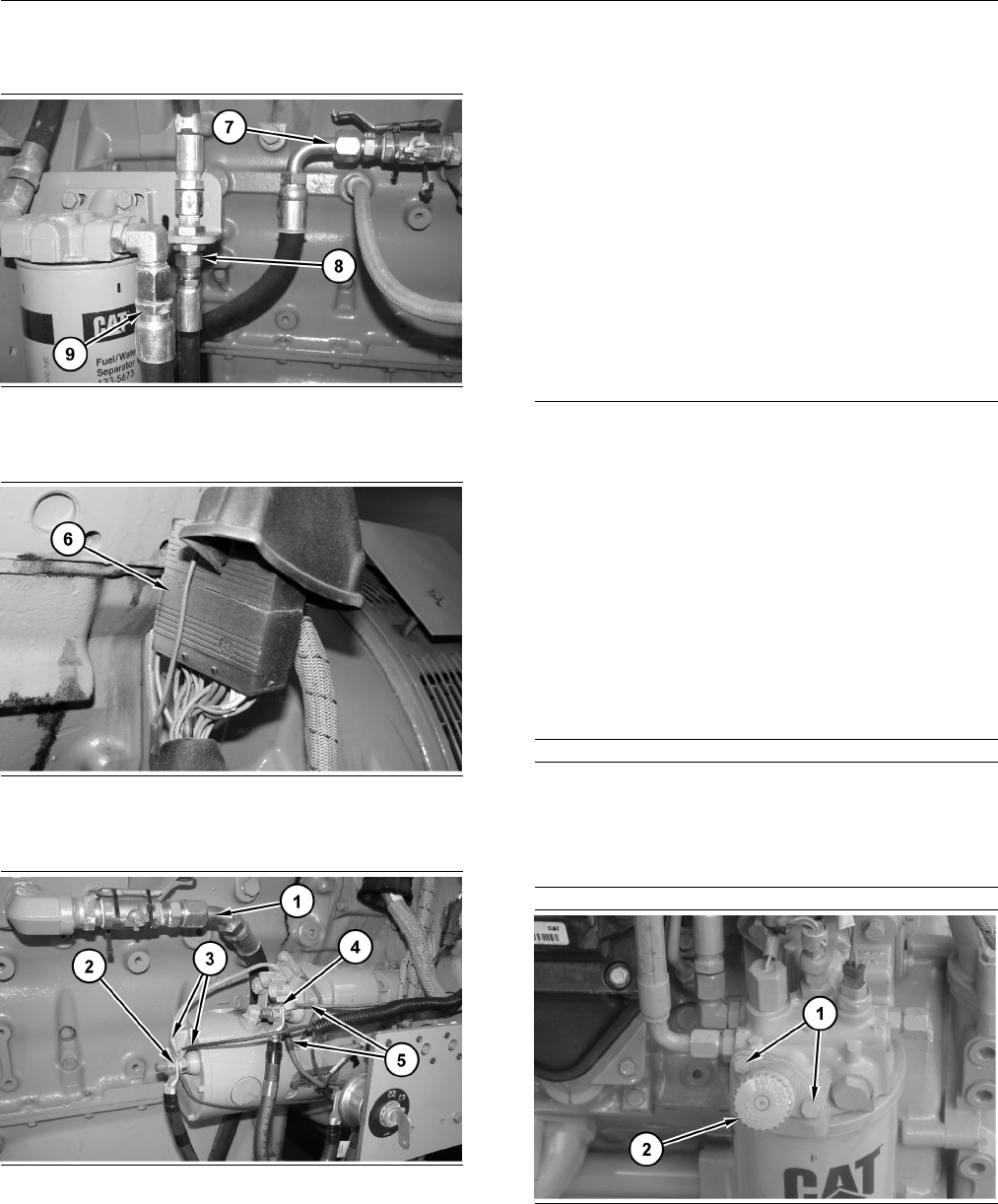

g01291161
Illustration 28
12. Connect hose assemblies (7), (8), and (9).
g01291160
Illustration 29
13. Connect ha
rness assembly (6).
g01291159
Illustration 30
14. Connect harness assemblies (5). Connect cable
assembly (4). Connect harness assemblies (3).
Connect cable assembly (2). Connect hose
assembly (1).
End By:
a. Install the cooling package. Refer to Disassembly
and Assembly, “Cooling System Package
(Radiator, Af
tercooler, Fuel Cooler) - Install”.
i02580978
Fuel Priming Pump - R emo ve
and In stall
SMCS Code: 1258-010
Removal Procedure
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Tools and Shop Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all par
ts clean from contaminants.
Contaminants may cause rapid wear and shortened
component l
ife.
g01292755
Illustration 31
1. Remove bolts ( 1).
2. Remove fuel priming pump (2) and the gasket.
