C27 and C32 Generator Sets Engines Disassembly and Assembly Page 103

Disassembly and Assembly
RENR9716-02 103
Disassembly and Assembly Section
Installation P
rocedure
g01289589

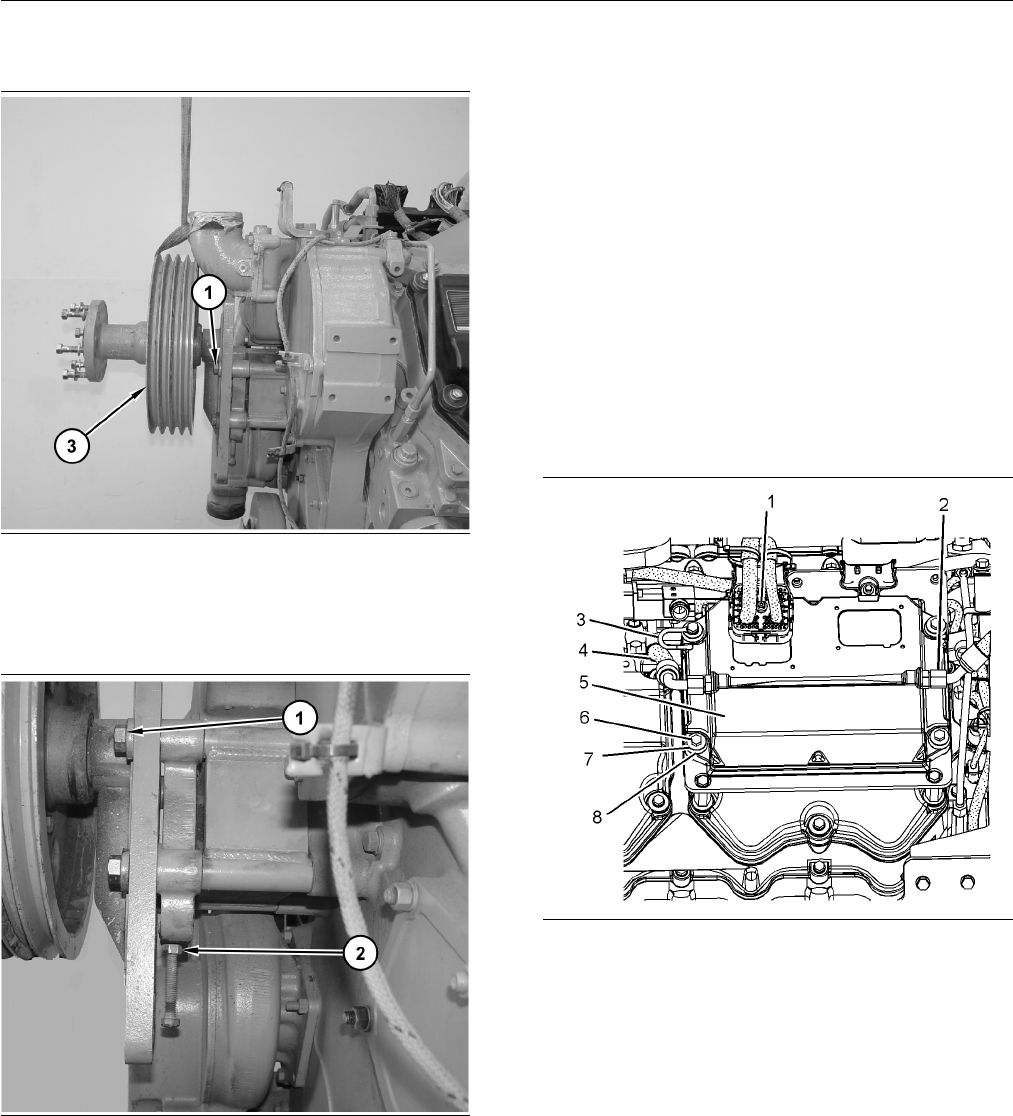

Illustration 296
1. Attach a suitable lifting device onto fan drive (3).
The weight of fan drive (3) is approximately 45 kg
(100 lb). Install fan drive (3). Install bolts (1).
g01289585
Illustration 297
2. Install the belts. Refer to Operation
and Maintenance Manual, “Belts -
Inspect/Adjust/Replace”.
3. Tighten bolts (1). Tighten locknut (2).
End By:
a. Install the belt guard. Refer to Disassembly and
Assembly, “Belt Guard - Remove and Install”.
b. Install the fan. Refer to Disassembly and
Assembly, “Fan
- Remove and Install”.
i02417465
Electronic Control Module -
Remove and Install
SMCS Code: 1901-010
Removal Procedure
1. Turn the battery disconnect switch to the “OFF”
position.
2. Disconnect the negative battery terminal at the
battery.
g01208278
Illustration 298
3. Loosen allen head screw (1). Disconnect the
harness assembly from electronic control module
(5).
4. Disconnect hose assemblies (2) and (4).
5. Remove bolts (6). Remove electronic control
module (5) and ground strap (3).
6. Remove washers (7) and isolation mounts (8)
from electronic control module (5).
