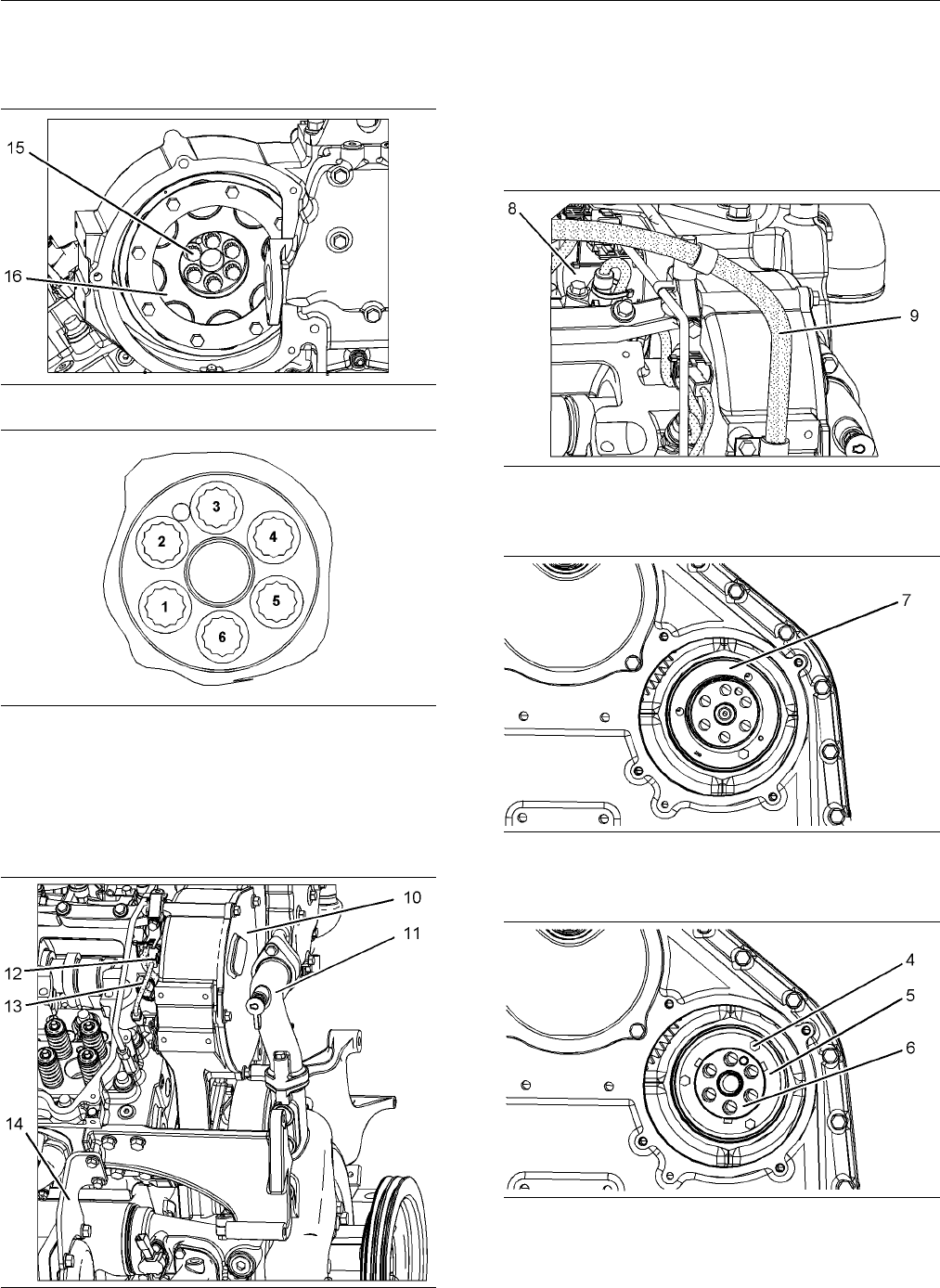

8. Install adapter assembly (19) and sealing plate
(18). Install b
olts (17).
g01148492
Illustration 206
g01151441
Illustration 207
9. Install damper (16) and bolts (15).
10. Tighten the bolts to a torque of 240 ± 40 N·m
(177 ± 30 lb ft). Tighten the bolts in the following
sequence:1,4,2,5,3,6,1,4.
g01148489
Illustration 208
11. Install bracket (14).
12. Connect harness assembly (13) and harness
assembly (12).
13. Install cover (10) and elbow (11).
g01148246
Illustration 209
14. Connect hose assembly (9). Install elbow (8).
g01222314
Illustrat
ion 210
15. Install new O-ring seals and sealing plate (7).
g01222233
Illustration 211
16. Install adapter assembly (6), thrust plate (5), and
bolts (4).
