C27 and C32 Generator Sets Engines Disassembly and Assembly Page 48

Disassembly and Assembly
48 RENR9716-02
Disassembly and Assembly Section
i02442469
Gear Group (Re ar) - Install
SMCS Code: 1206
-012; 1212-012
Installation P
rocedure
Table 33
Required Tools
Tool
Part
Number Part Description Qty
A
1P-0510
Driver Group 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
Note: Apply clean engine oil to the bearings and the
shaft assemblies prior to installation on the engine.
g01219500

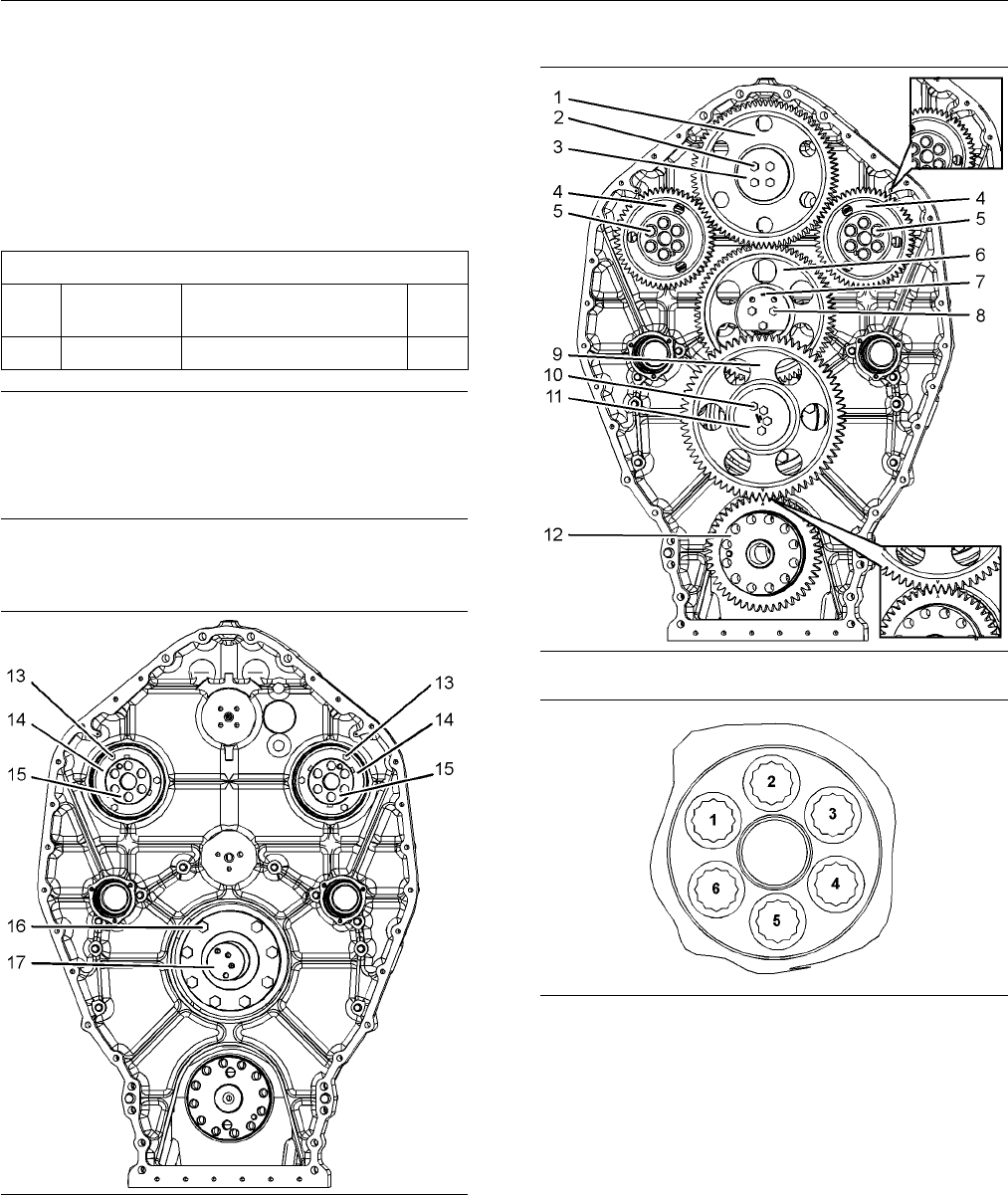

Illustration 145
1. Install the O-ring seals and the sealing plates on
the cylinder head.
2. Install adapter assemblies (15), thrust plates (14),
and bolts (13).
3. Position shaft assembly (17) and install bolts (16).
g01220275
Illustrat
ion 146
g01151468
Illustration 147
4. Refer to
Testing and Adjusting, “Rear Gear Group
- Time” for additional information.
Note: Al
ign the Timing Marks on gear assemblies (4)
with the Timing Marks on the rear housing and align
the dowels on gear assemblies (4) with the adapter
assemb
lies.
5. Position gear assemblies (4) and install bolts (5).
6. Install gear assembly (12).
7. Use Tool
ing(A)andasuitablepresstoinstallthe
bearing in gear assembly (1). Install the bearing to
a depth of 2.6 ± 0.5 mm (0.10 ± 0.02 inch).
