C27 and C32 Generator Sets Engines Disassembly and Assembly Page 71

Disassembly and Assembly
RENR9716-02 71
Disassembly and Assembly Section

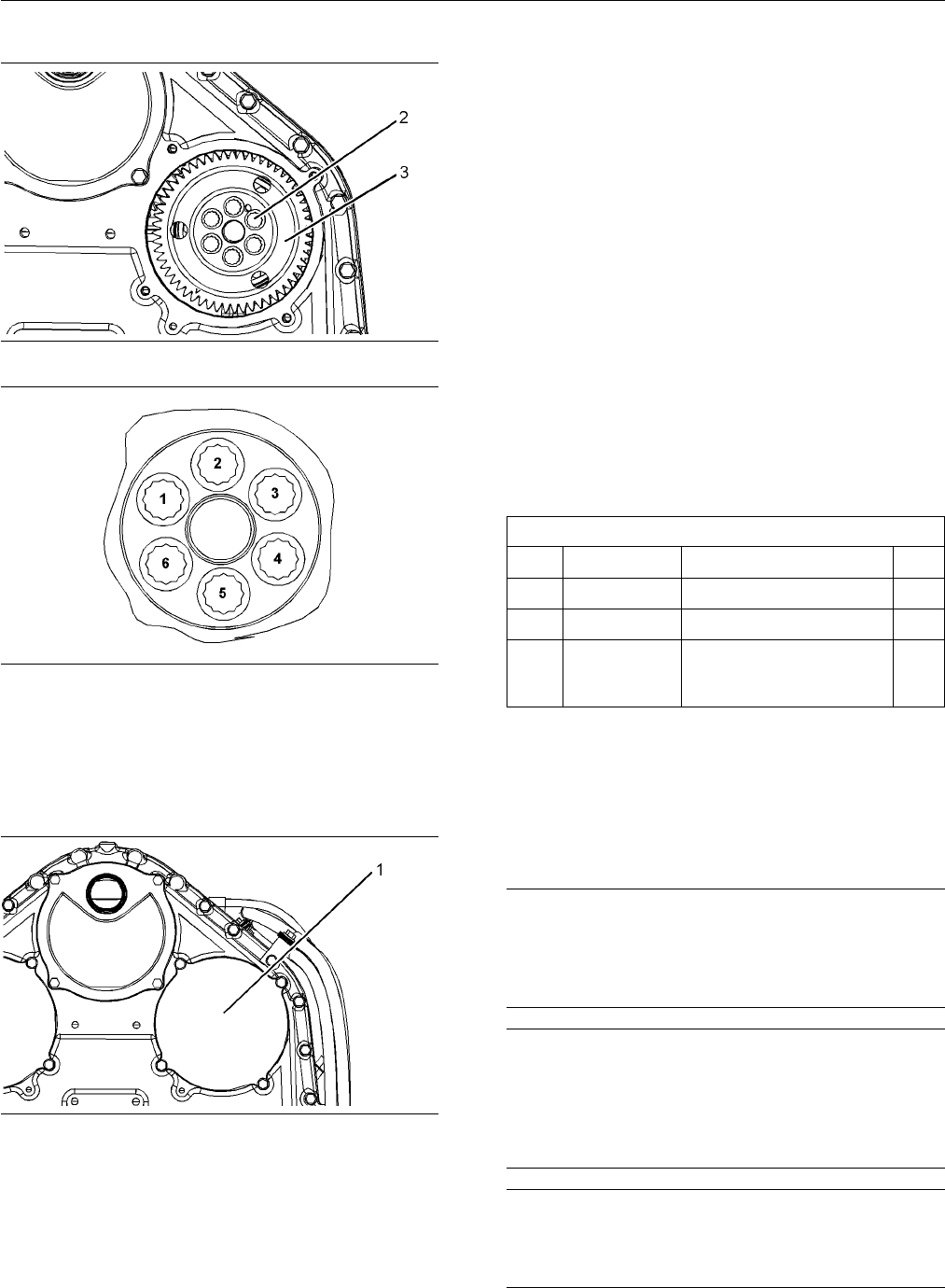

g01222230
Illustration 212
g01151468
Illustration 213
17. Install gear (3) and bolts (2).
18. Tighten the bolts to a torque of 240 ± 40 N·m
(177 ± 30 lb ft). Tighten the bolts in the following
sequence:1,4,2,5,3,6,1,4.
g01222228
Illustration 214
19. Install cover (1).
20. Fill the cooling system. Refer to Operation and
Maintenance Manual, “Cooling System Coolant
- Change”.
End By:
a. Install the fuel transfer pump. Refer to Disassembly
and Assembly, “Fuel Transfer Pump - Install”.
b. Install the valve mechanism cover base. Refer to
Disassembly and Assembly, “Valve Mechanism
Cover Base - Re
move and Install”.
c. Install the electronic unit injectors. Refer to
Disassembly a
nd Assembly, “Electronic Unit
Injector - Install”.
i02446397
Camshaft - Remove
SMCS Code: 1210-011
Removal Procedure
Table 50
Required Tools
Tool Part Number Part Description Qty
A
177-8001
Pilot Sleeve
2
B
249-2936
Adapter 1
C
274-7932
(1)
or
274-7933
(2)
Guide 1
(1)
Front Removal
(2)
Rear Rem oval
Start By:
a. Remove the rocker arms and the rocker shafts.
Refer to Disassembly and Assembly, “Rocker Arm
and Shaft - Remove”.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
NOTICE
Do not turn the crankshaft or the camshaft while the
camshaft gear is removed. If the rear gear group is
not correctly timed during installation, interference can
occur between the pistons and the valves, resulting in
damage to the engine.
NOTICE
Care must be used when removing or installing the
camshaft. D
o not damage the finshed surfaces of the
camshaft or the camshaft bearings.
