C27 and C32 Generator Sets Engines Disassembly and Assembly Page 101

Disassembly and Assembly
RENR9716-02 101
Disassembly and Assembly Section

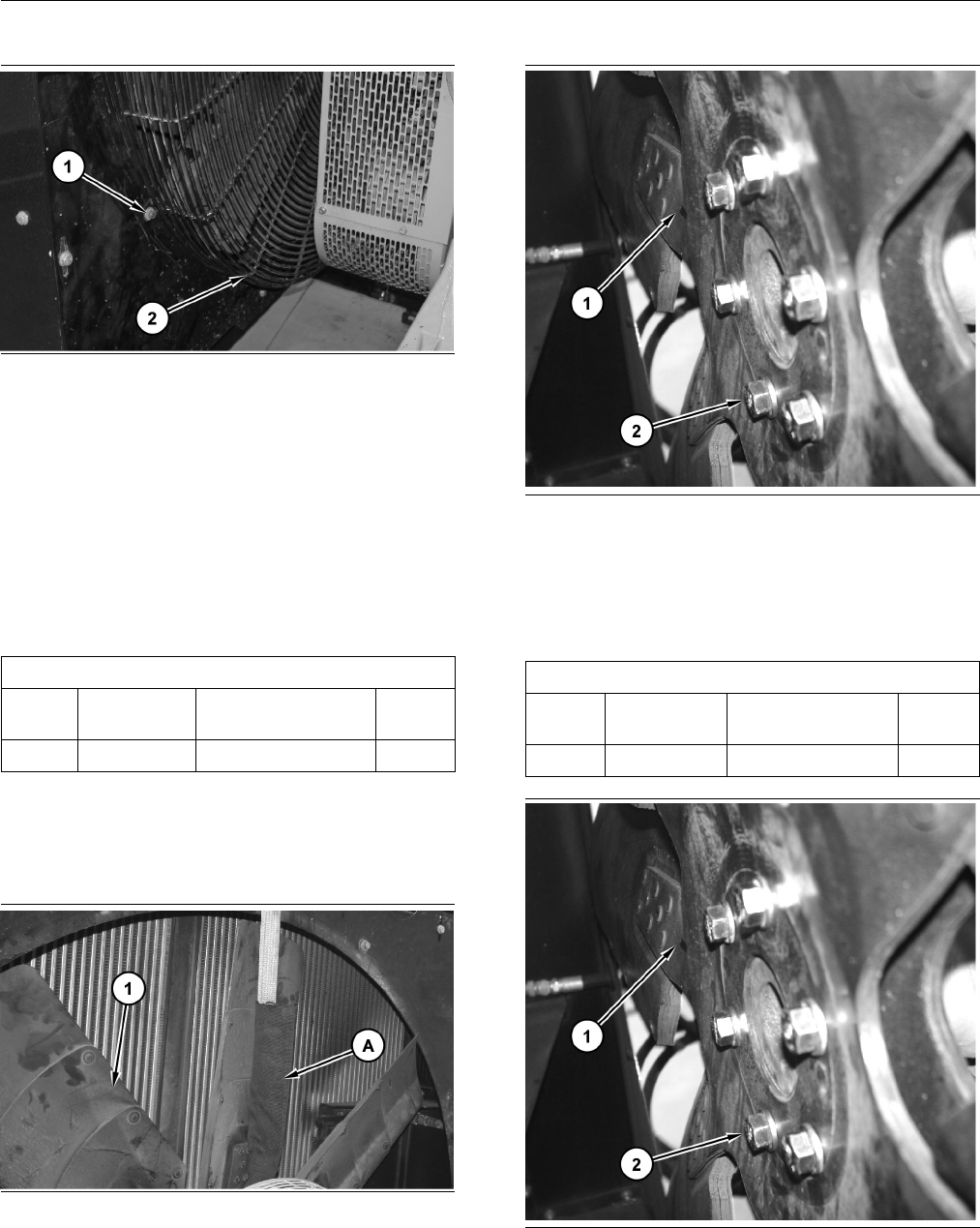

g01289778
Illustration 289
2. Install lower fan guard (2). Install bolts (1).
i02755088
Fan - Remove
and Instal l
SMCS Code: 1356-010
Removal Procedure
Table 71
Required Too
ls
Tool
Part
Number Part Description Qty
A
140-7742
Sleeve 1
Start By:
a. Remove the fan guard. Refer to Disassembly and
Assembly, “Fan Guard - Remove and Install”.
g01289730
Illustration 290
1. AttachTooling(A)andasuitableliftingdevice
onto fan (1). The weight of fan (1) is approximately
45 kg (100 lb).
g01289733
Illustration 291
2. Remove bolts (2). Re move fan (1).
Installation Procedure
Table 72
Required Tools
Tool
Part
Number Part Description Qty
A
140-7742
Sleeve 1
g01289733
Illustration 292
1. Attach Tooling (A) and a suitable lifting device
onto fan (1). The weight of fan (1) is approximately
45 kg (100 lb). Install fan (1). Install bolts (2).
