C27 and C32 Generator Sets Engines Disassembly and Assembly Page 19

Disassembly and Assembly
RENR9716-02 19
Disassembly and Assembly Section

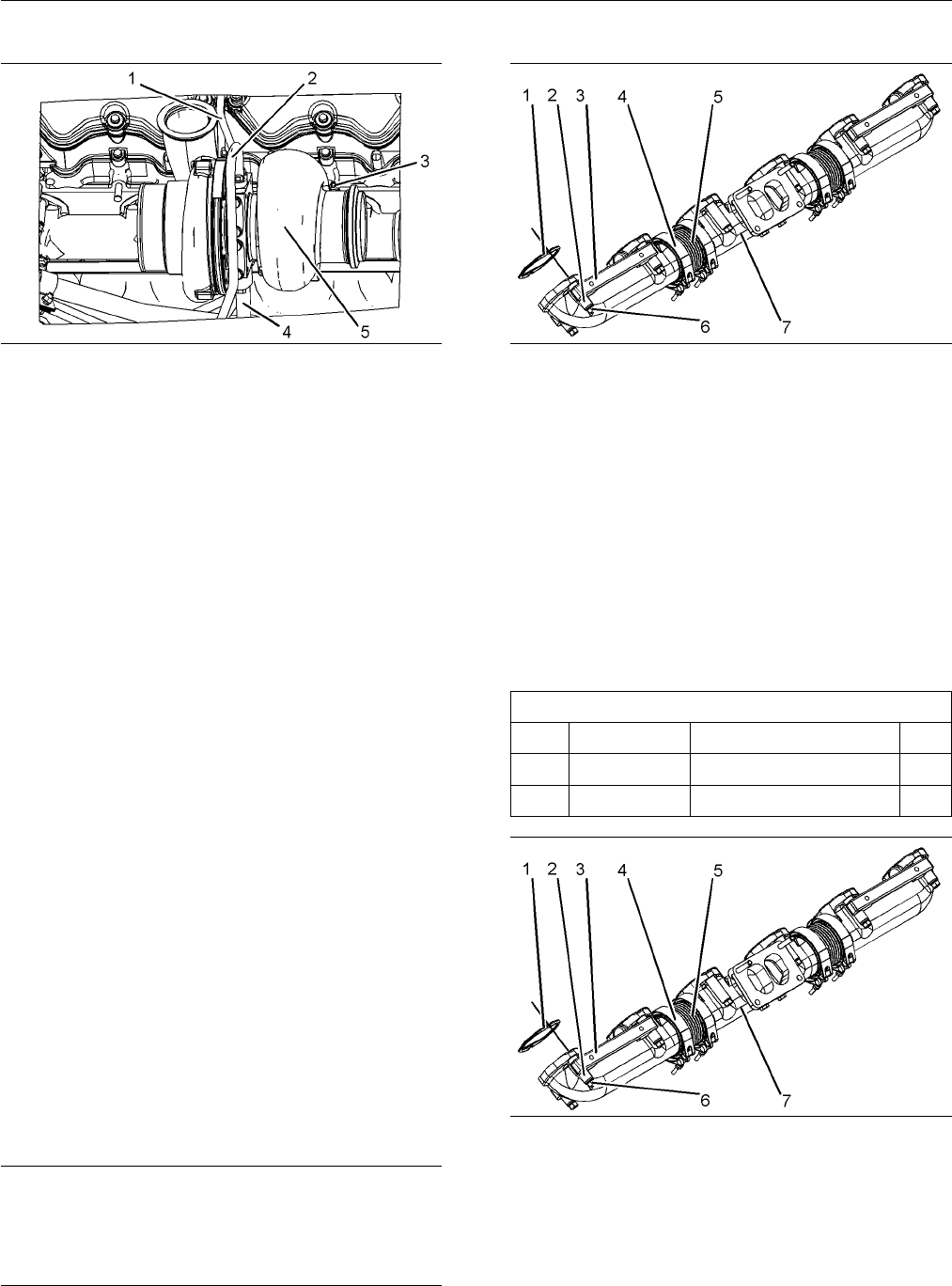

g01145002
Illustration 52
1. Position the gasket on the exhaust manifold.
2. Apply Tooling (A) to the threads of the exhaust
manifold studs.
3. Attach a suitable lifting device to turbocharger (5).
The weight o f turbocharger (5) is approximately
45 kg (100 lb). Position turbocharger (5) on the
exhaust manifold.
4. Install nuts (3) and tighten to a torque of 55 ± 9 N·m
(41±7lbft).
5. Connect tube assemblies (1) and tube assembly
(4).
6. Install tube assembly (2).
7. Fill the cooling system. Refer to Operation and
Maintenance Manual, “Cooling System Coolant
- Change”.
i02617122
Exhaust Manifold - Remove
and Insta
ll
SMCS Code: 1059-010
Removal Procedure
Start By:
a. Remove th
e turbocharger. Refer to Disassembly
and Assembly, “Turbocharger - Remove”.
NOTICE
Keep all p
arts clean from contaminants.
Contaminants may cause rapid wear and shortened
componen
tlife.
1. Remove the shield assemblies from the exhaust
manifolds.
g01218139
Illustration 53
2. Remove locknuts (6) from exhaust manifold (7).
3. Remove spacers (2) and (3) from exhaust
manifold (7).
4. Remove exhaust manifold (7) and gaskets (1)
from the cylinder head.
5. If necessary, remove clamps (4) and expansion
joints (5).
Installation Procedure
Table 10
Required Tools
Tool Part Number Part Description Qty
A
5P-3931
Anti-Seize Compound
-
B
165-4638
Guide 3
g01218139
Illustration 54
