C27 and C32 Generator Sets Engines Disassembly and Assembly Page 52

Disassembly and Assembly
52 RENR9716-02
Disassembly and Assembly Section
Installation P
rocedure
Table 39
Required Tools
Tool
Part
Number Part Description Qty
A
138-7574
Link Bracket 2
B
-
Guide Stud
1/2 - 13 NC by 7 inch
2
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.

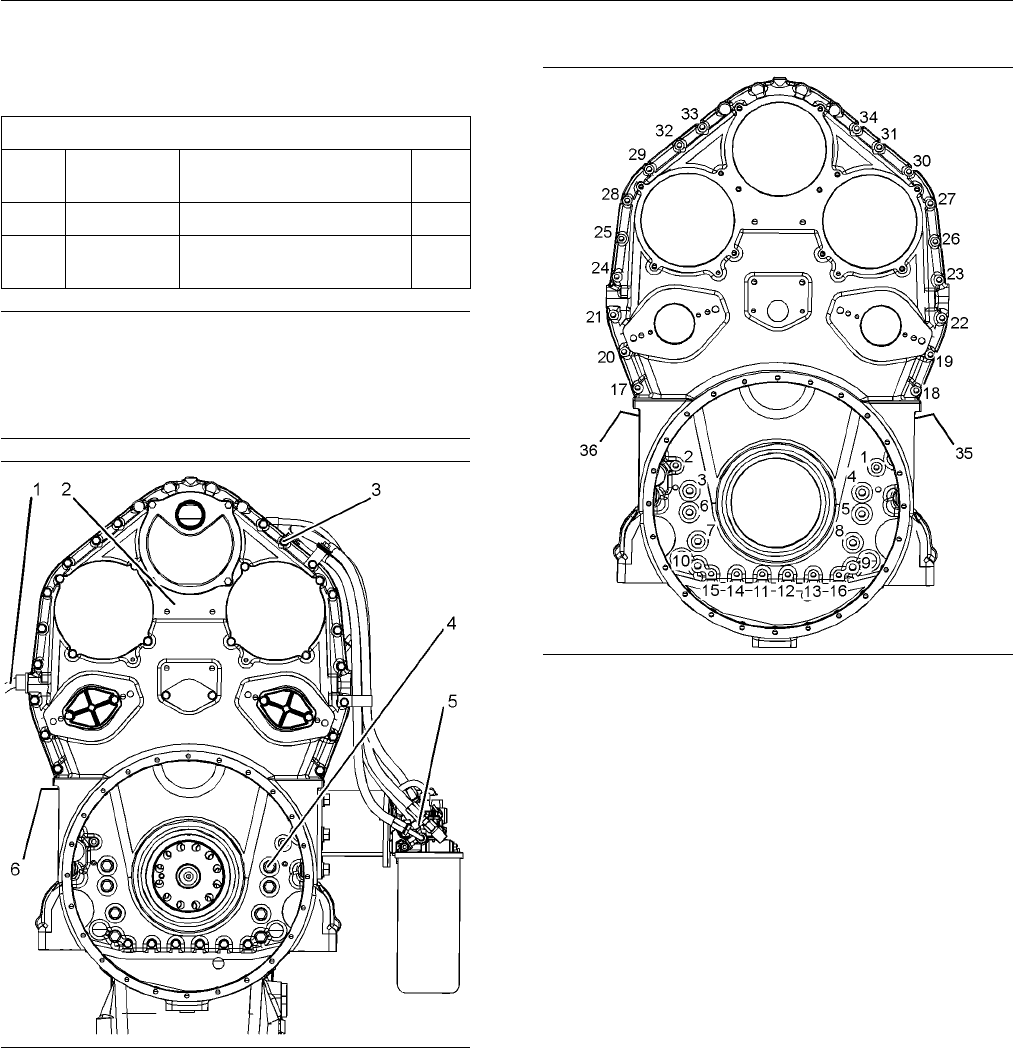

g01220951
Illustration 155
g01221009
Illustrat
ion 156
1. Install Tooling (B) in the cylinder block.
2. Attach Tooling (A) and a suitable lifting device
to flywheel housing (2). The weight of flywheel
housing (
2)isapproximately110kg(245lb).
3. Position the gasket and flywheel housing (2) on
the rear h
ousing. Install bolts (3), bolts (6), and
bolts (4).
4. Remove To
oling (B) and install remaining bolts (4).
5. Tighten the bolts, as follows:
a. In a numerical sequence, tighten Bolt 1 through
Bolt2toatorqueof55±10N·m(41±7lbft).
b. In a numerical sequence, tighten Bolt 3
through Bolt 10 to a torque of 135 ± 20 N·m
(100 ± 15
lb ft).
c. In a numerical sequence, tighten Bolt 11
through
Bolt36toatorqueof47±9N·m
(35±7lbft).
6. Reposit
ion fuel filter base (5) and the hose
assemblies. Connect fuel filter base (5) to flywheel
housing (2).
7. Connect hose assemblies (1) to flywheel housing
(2).
