C27 and C32 Generator Sets Engines Disassembly and Assembly Page 64

Disassembly and Assembly
64 RENR9716-02
Disassembly and Assembly Section
Start By:
a. Remove the valve mechanism cover. Refer to
Disassembly and Assembly, “Valve Mechanism
Cover - Remove
and Install”.
NOTICE
Keep all parts clean from contaminants.
Contaminants
may cause rapid wear and shortened
component life.
g01148045

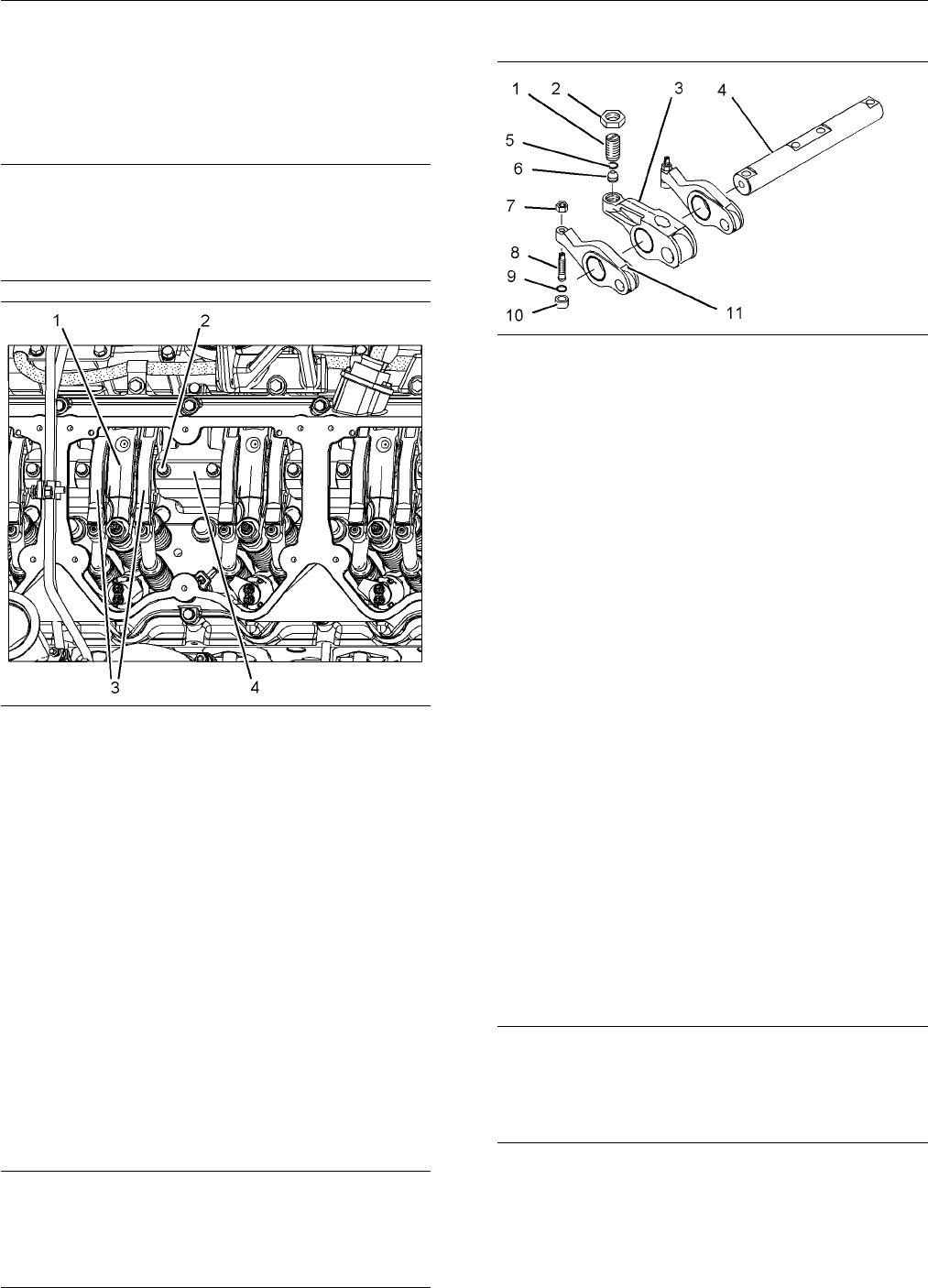

Illustration 187
1. Remove bolts (2).
2. Use Tooling (A) to remove rocker arm shaft
assembly (4), valve rocker arms (3), and electronic
unit injector rocker arms (1) as a unit.
i02451112
Rocker Arm - Disassemble
SMCS Code: 1123-015
Disassembly Procedure
Start By:
a. Remove the rocker arms and the rocker shaft.
Refer to Disassembly and Assembly, “Rocker Arm
and Shaft - Remove”.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01047557
Illustration 188
1. Remove valve rocker arms (11) and electronic unit
injector rocker arm (3) from rocker shaft assembly
(4).
2. Remove jam nut (7) from adjustment screw (8).
3. Remove adjustment screw (8) from valve rocker
arms (11).
4. Remove button (10) from adjustment screw (8).
Remove O-ring seal (9) from the a djustment
screw.
5. Remove jam nut (2) from unit injector adjustment
screw (1).
6. Remove unit injector adjustment screw (1) from
electronic unit injector rocker arm (3).
7. Remove button (6) from unit injector adjustment
screw (1). Remove O-ring seal (5) from the unit
injector adjustment screw.
i02451120
Rocker Ar
m - Assem ble
SMCS Code: 1123-016
Assembly Procedure
NOTICE
Keep all parts clean from contaminants.
Contamin
ants may cause rapid wear and shortened
component life.
