C27 and C32 Generator Sets Engines Disassembly and Assembly Page 102

Disassembly and Assembly
102 RENR9716-02
Disassembly and Assembly Section

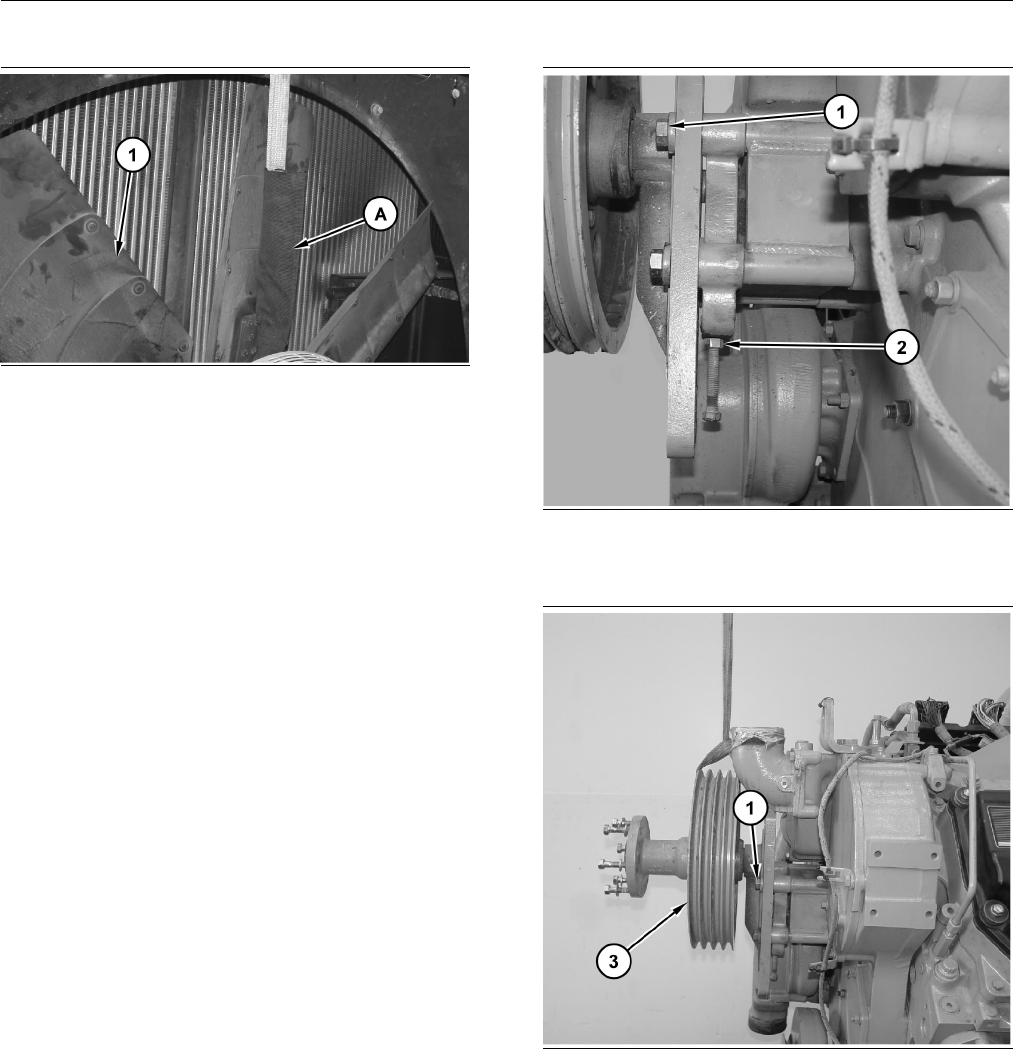

g01289730
Illustration 293
2. Remove Tooling (A) and the suitable lifting device
from fan (1).
End By:
a. Install the fan guard. Refer to Disassembly and
Assembly, “Fan Guard - Remove and Install”.
i02574047
Fan Drive - R
emove and Install
SMCS Code: 1359-010; 1386-010
Removal Procedure
Start By:
a. Remove the f
an. Refer to Disassembly and
Assembly, “Fan - Remove and Install”.
b. Remove the b
elt guard. Refer to Disassembly and
Assembly, “Belt Guard - Remove and Install”.
1. Remove the
belts. Refer to Operation
and Maintenance Manual, “Belts -
Inspect/Adjust/Replace”.
g01289585
Illustration 294
2. Loosen bolts (1). Loosen locknut (2).
g01289589
Illustration 295
3. Attachasuitableliftingdeviceontofandrive(3).
The weight of fan drive (3) is approximately 45 kg
(100 lb). Remove bolts (1). Remove fan drive (3).
