C27 and C32 Generator Sets Engines Disassembly and Assembly Page 57

Disassembly and Assembly
RENR9716-02 57
Disassembly and Assembly Section
i02445219
Hou sing ( Front) - Remove
SMCS Code: 1151
-011
Removal Proced
ure
Start By:
a. Remove the water temperature regulator housing.
Refer to Disassembly and Assembly, “Water
Temperature R
egulator Housing - Remove and
Install”.
b. Remove the wat
er pump. Refer to Disassembly
and Assembly, “Water Pump - Remove”.
c. Remove the cra
nkshaft front seal. Refer to
Disassembly and Assembly, “Crankshaft Front
Seal - Remove”.
d. Remove the front engine support. Refer to
Disassembly and Assembly, “Engine Support
(Front) - Rem
ove and Install”.
e. Remove the alternator. Refer to Disassembly and
Assembly, “
Alternator - Remove and Install”.
f. Remove the crankshaft position sensor. Refer to
Disassembl
y and Assembly, “Crankshaft Position
Sensor - Remove and Install”.
g. Remove the c
amshaft position sensor. Refer to
Disassembly and Assembly, “Camshaft Position
Sensor - Remove and Install”.
NOTICE
Care must be
taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect th
e fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Dealer Service Tool Catalog” for tools and supplies
suitable t
o collect and contain fluids on Caterpillar
products.
Dispose o
fallfluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.

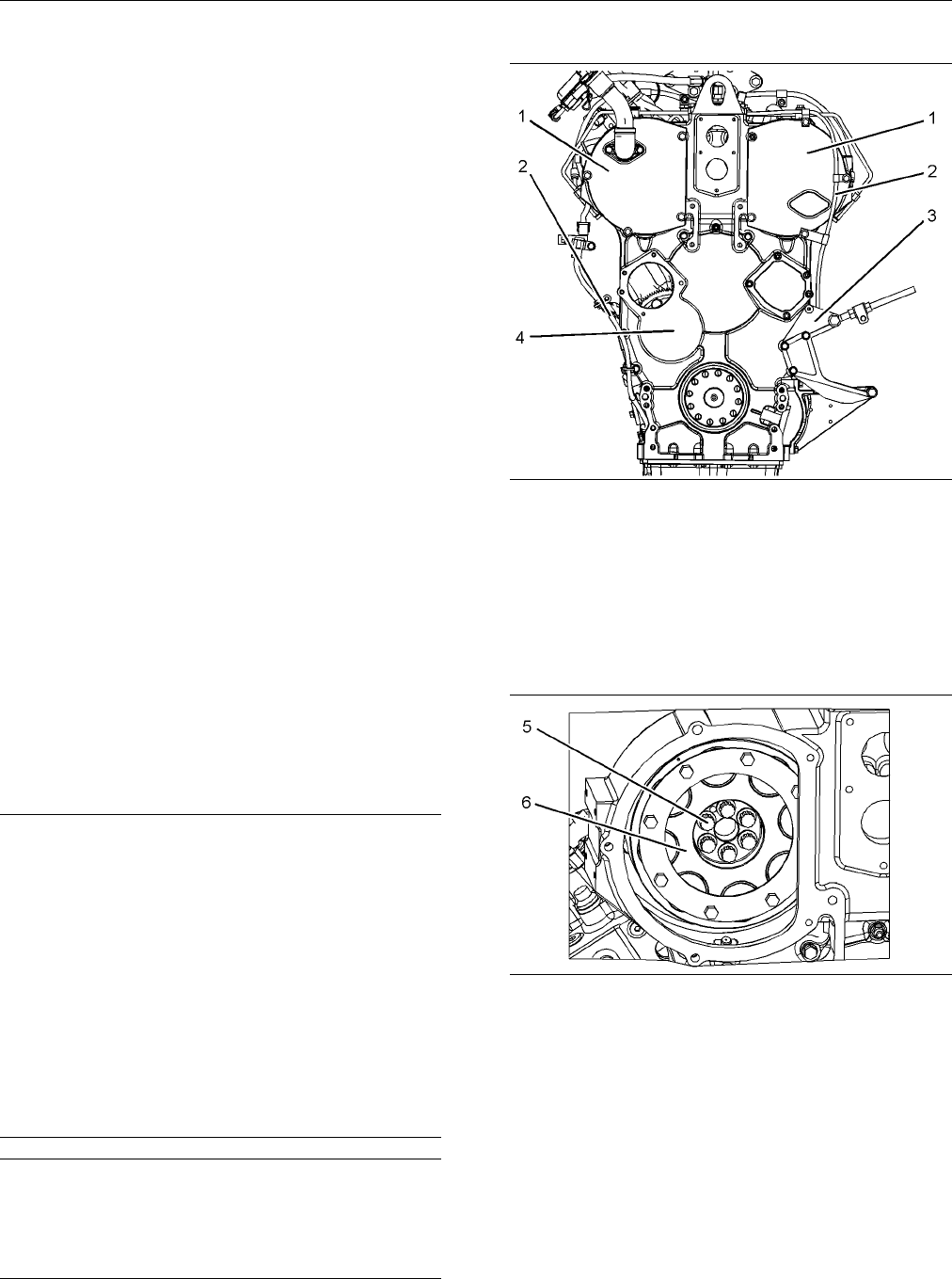

g01221893
Illustration 169
1. Disconnect hose assemblies (2) from front
housing (4).
2. Remove covers (1).
3. Remove alternator bracket (3) from front housing
(4).
g01221941
Illustration 170
4. Remove bolts (5) and dampers (6).
