C27 and C32 Generator Sets Engines Disassembly and Assembly Page 51

Disassembly and Assembly
RENR9716-02 51
Disassembly and Assembly Section
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01220558

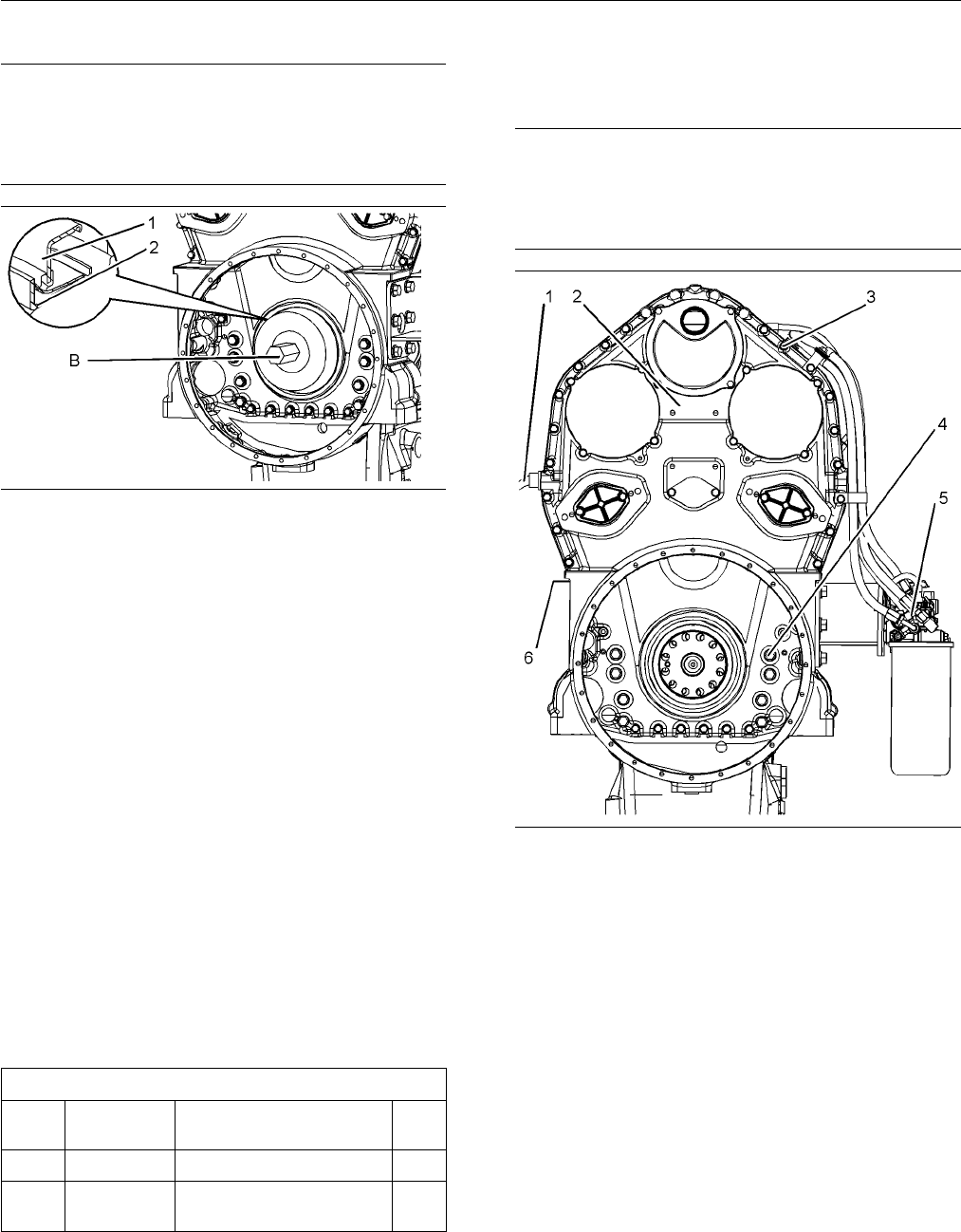

Illustration 153
1. Clean the outside diameter of the crankshaft.
Note: Install the crankshaft rear seal with the arrow
that shows the direction of crankshaft rotation toward
the rear of the engine.
2. Use Tooling (B) to install crankshaft wear sleeve
(2) and crankshaft rear seal (1) as a unit.
End By:
a. Install the flywheel. Refer to Disassembly and
Assembly, “Flywheel - Remove and Install”.
i02752908
Flywheel H
ousing - Remove
and Install
SMCS Code:
1157-010
Removal Pr
ocedure
Table 38
Required Tools
Tool
Part
Number Part Description Qty
A
138-7574
Link Bracket 2
B
-
Guide Stud
1/2 - 13 NC by 7 inch
2
Start By:
a. Remove the crankshaft rear seal. Refer to
Disassembly and Assembly, “Crankshaft Rear
Seal - Remove”.
b. Remove the electric starting motor. Refer to
Disassembly an
d Assembly, “Electric Starting
Motor - Remove and Install”.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01220951
Illustra
tion 154
1. Disconnect hose assemblies (1) from flywheel
housing (
2).
2. Disconnect fuel filter base (5) from fl ywheel
housing (
2). Reposition fuel filter base (5) and the
hose assemblies.
3. Remove tw
o bolts (4) and install Tooling (B).
4. Attach Tooling (A) and a suitable lifting device
to flywhe
el housing (2). The weight of flywheel
housing (2) is approximately 110 kg (245 lb).
5. Remove r
emaining bolts (4), bolts (6), and bolts
(3). Remove flywheel housing (2) and the gasket
from the rear housing.
