C27 and C32 Generator Sets Engines Disassembly and Assembly Page 79

Disassembly and Assembly
RENR9716-02 79
Disassembly and Assembly Section
i02294951
Cylind er Liner - Remove
SMCS Code: 1216
-011
Removal Proced
ure
Table 56
Required Tools
Tool Part Number Part Description Qty
A
5P-8665
(1)
Cylinder Liner Puller Gp 1
(1)
The 6V-9448 Cylinder Pack Puller is an optional Tool for
removing the cylinder liner.
Start By:
a. Remove the pistons and connecting rods. Refer
to Disassembly and Assembly, “Pistons and
Connecting Rods - Remove”.
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Tools and Shop Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all part
s clean from contaminants.
Contaminants may cause rapid wear and shortened
component li
fe.

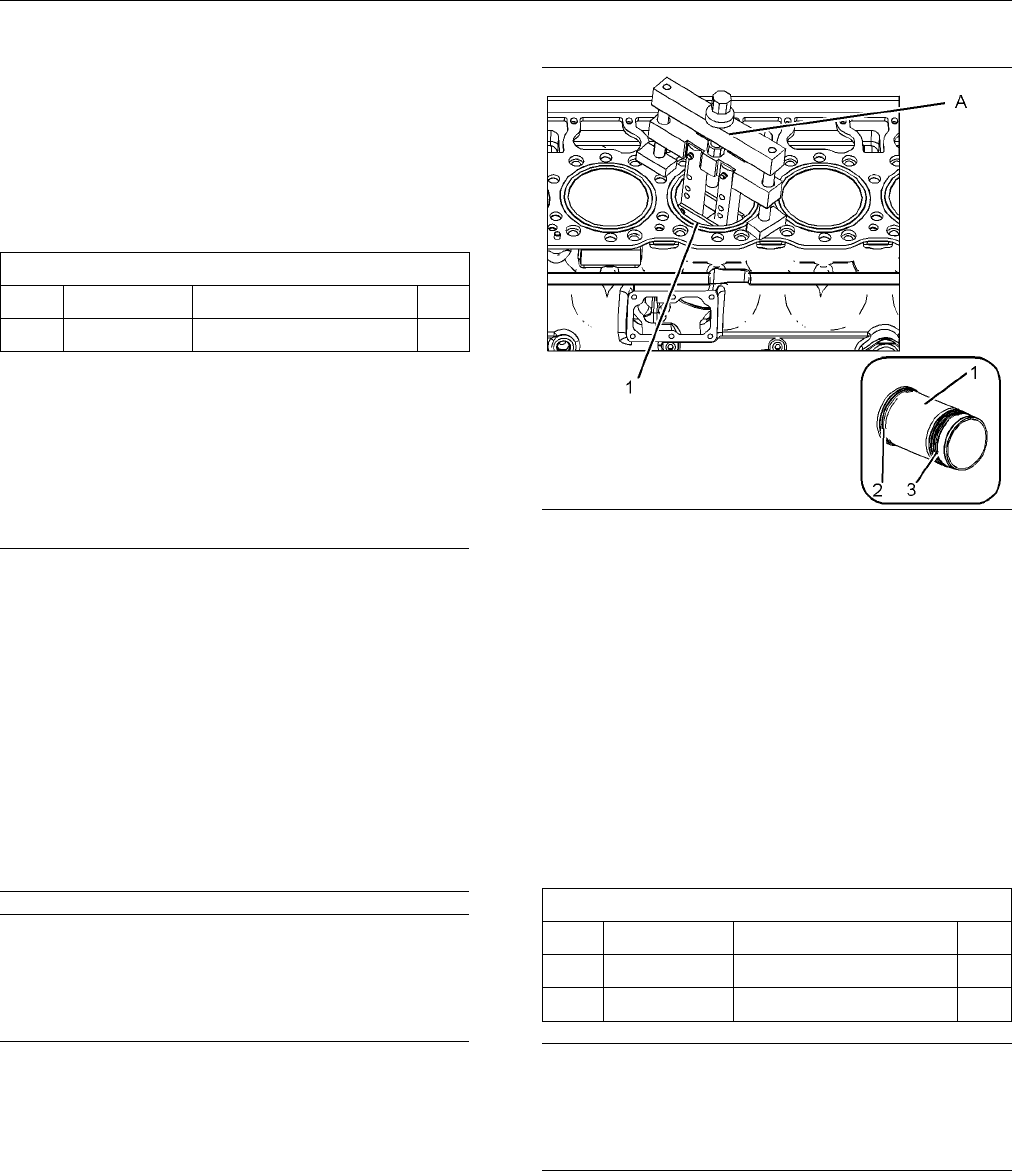

g01149417
Illustration 239
1. Use Tooling (A) to remove cylinder liner (1).
2. Remove liner seals (3) and filler band (2) from
cylinder liner (1).
i02294960
Cylinder Liner - Install
SMCS Code: 1216-012
Installation Procedure
Table 57
Required Tools
Tool Part Number Part Description Qty
B
2P-8260
Cylinder Liner Installer
1
C
5P-3975
Rubber Lubricant 1
NOTICE
Keep all par
ts clean from contaminants.
Contaminants may cause rapid wear and shortened
component
life.
1. Check the cylinder liner projection. Refer to
Testing and Adjusting, “Cylinder Liner Projection
- Inspect”.
