C27 and C32 Generator Sets Engines Disassembly and Assembly Page 104

Disassembly and Assembly
104 RENR9716-02
Disassembly and Assembly Section
Installation P
rocedure
g01208278

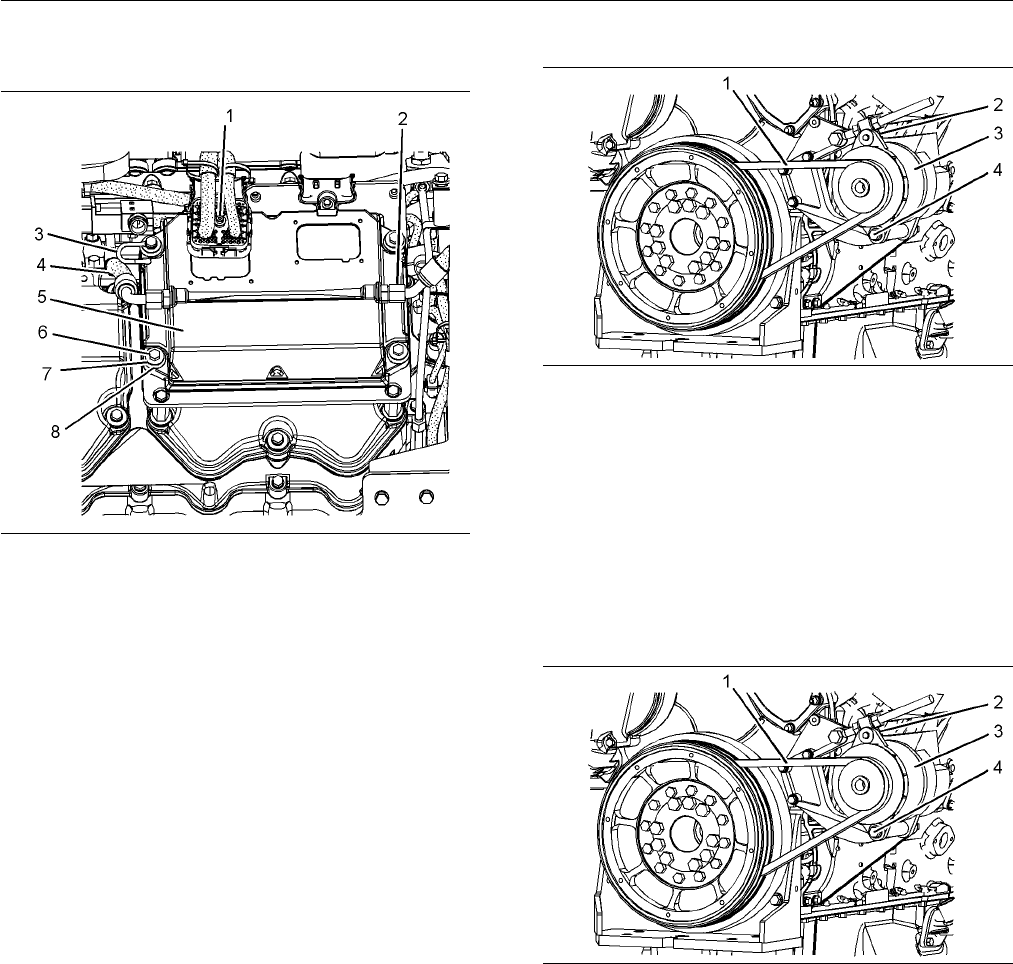

Illustration 299
1. Position isolation mounts (8) on electronic control
module (5). Position the spacers, washers (7),
ground strap (3), and electronic control module (5)
on the support assemblies. Install bolts (6).
2. Connect hose assemblies (4) and (2).
3. Connect the harness assembly to electronic
control module (5). Tighten allen head screw (1)
to a torque of 6 ± 1 N·m (53 ± 9 lb in).
4. Connect the negative battery terminal at the
battery.
5. Turn the battery disconnect switch to the “ON”
position.
i02450170
Altern ato r - Remove and Install
SMCS Code: 1405-010
Removal Procedure
1. Turn the battery disconnect switch to the OFF
position.
g01223195
Illustration 300
2. Remove V-belt (1) from alternator (3).
3. Disconnect the harness assemblies from
alternator (3).
4. Remove bolt (2) and bolt (4).
5. Remove alternator (3) from the mounting group.
Installation Procedure
g01223195
Illustration 301
1. Position a
lternator (3) on the mounting group.
2. Install bolt (4) and bolt (2).
3. Connect the harness assemblies to alternator (3).
Refer to Specifications, “Alternator and Regulator”.
4. Install V-belt (1) on alternator (3).
5. Adjust the
tension on the V-belt. Refer to
Operation and Maintenance Manual, “Belt -
Inspect/Adjust/Replace”.
6. Turn the ba ttery disconnect switch to the ON
position.
