C27 and C32 Generator Sets Engines Disassembly and Assembly Page 13

Disassembly and Assembly
RENR9716-02 13
Disassembly and Assembly Section

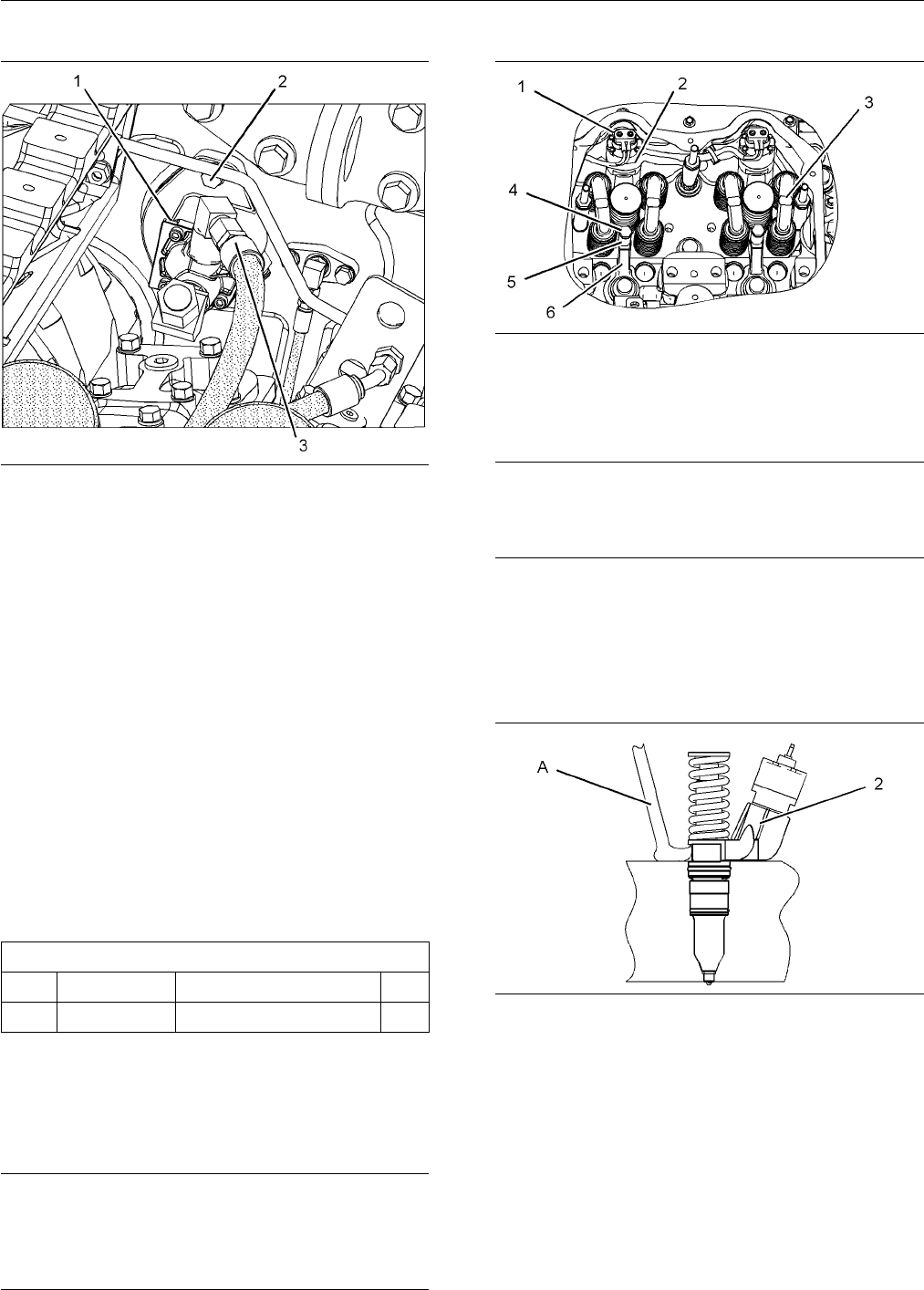

g01143748
Illustration 38
1. Install the O-ring seal on fuel transfer pump (1).
Lubricate the O-ring seal with clean engine oil.
2. Position fuel transfer pump (1) on the engine.
Install bolts (2).
3. Connect hose assemblies (3).
4. Turn the fuel supply to the “ON” position.
i02208070
Electron ic Unit Injector -
Remove
SMCS Code: 1290-011
Removal Procedure
Table 5
Required Tools
Tool Part Number Part Description Qty
A
5F-4764
Pry Bar 1
Start By:
a. Remove th
e rocker arms and the rocker arm shaft.
Refer to Disassembly and Assembly, “Rocker Arm
and Shaft - Remove”.
NOTICE
Keep all p
arts clean from contaminants.
Contaminants may cause rapid wear and shortened
componen
tlife.
g01114892
Illustration 39
1. Disconnect harness assembly (1).
2. Remove bridge assemblies (3).
NOTICE
If the injector hold down bolt is loose during the re-
moval procedure, inspect the injector bore for wear
and debris. Replace the clamp and spacer.
3. Remove bolt (4), spacer (5), and clamp (6).
4. Place an identification mark on electronic unit
injectors (2) for installation purposes. Each
electronic
unit injector must be reinstalled in the
original location in the cylinder head.
g01073439
Illustration 40
5. Use Tooling (A) to pry beneath the base and free
electronic unit injector (2).
6. Remove electronic unit injector (2) from the
cylinder head.
