C27 and C32 Generator Sets Engines Disassembly and Assembly Page 16

Disassembly and Assembly
16 RENR9716-02
Disassembly and Assembly Section
i02287628
Electron ic U nit In jector Sleeve
-Install
SMCS Code: 1713-012
Installation Procedure
Table 8
Required Tools
Tool Part Number Part Description Qty
A
9U-6891
Injector Tool Group 1
9U-6862 Tapered Brush 1
9U-6863
Small Bore Brush 1
9U-7244
End Brush 1
9U-7237
Brush Extension 1
B
4C-5552 Large Bore Brush 1
C
4C-9507
Retaining Co
mpound 1
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Use Tooling (B
) to clean the bore in the cylinder
head for the electronic unit injector sleeve.
NOTICE
Ensure that th
e electronic unit injector sleeve and the
cylinder head bore are completely free of oil, dirt, and
sealant debris.

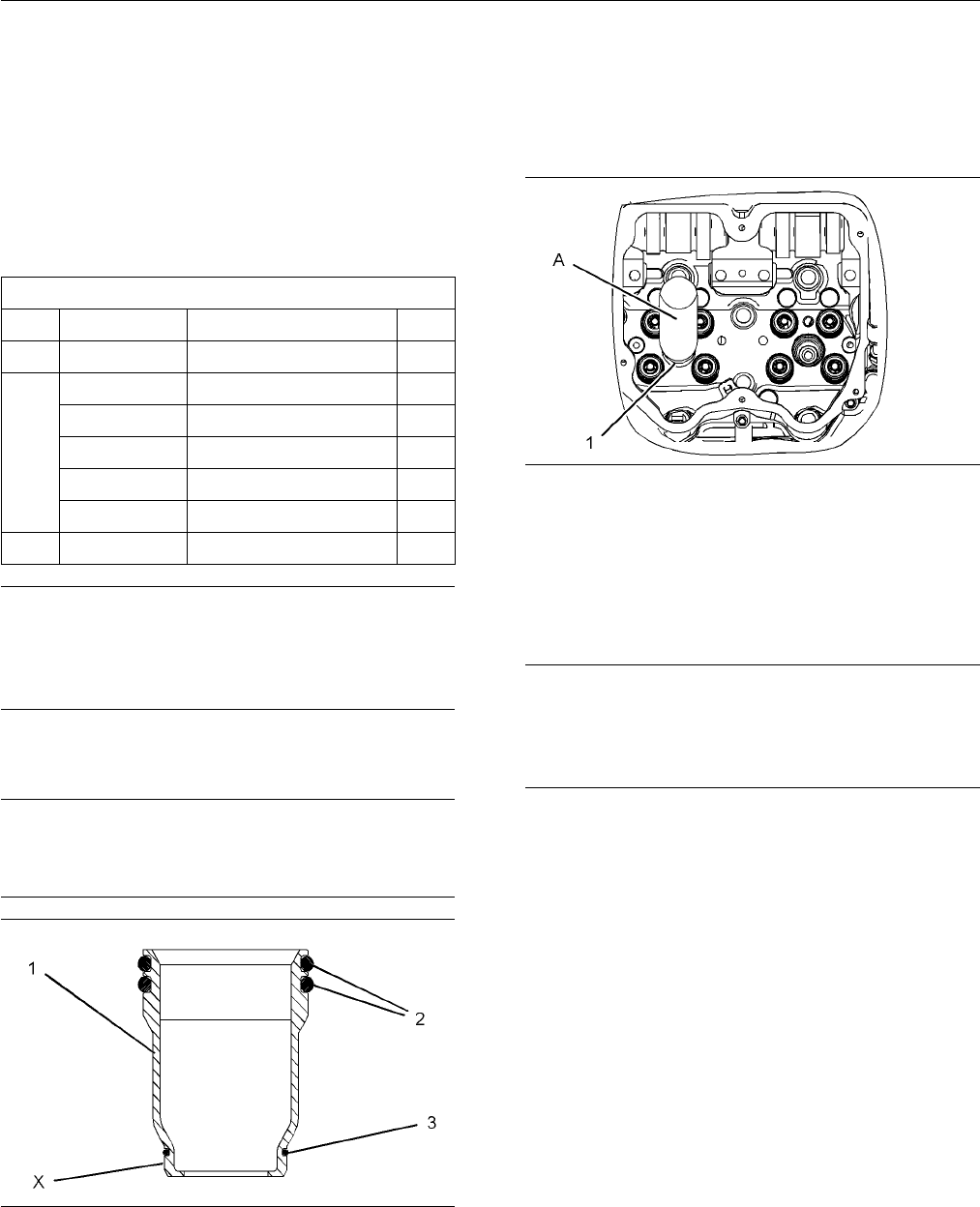

g01043165
Illustration 45
2. Install new
O-ring seals (2) and O-ring seal (3) on
electronic unit injector sleeve (1).
3. Apply Tooli
ng (C) to the contact surface of
electronic unit injector sleeve (1) on the surface
that is Marked “X”.
Note: Do not apply Tooling (C) to the cylinder head
surfaces. Appl
y Tooling (C) on the electronic unit
injector sleeve only.
4. Lubricate O-r
ing seals (2) with clean engine oil.
g01099549
Illustration 46
5. Install electronic unit injector sleeve (1) on Tooling
(A). Position the electronic unit injector sleeve in
the cylinder head. Use care not to damage the
O-ring seals on the electronic unit injector sleeve.
UseTooling(A)andahammertoinstallthe
electronic unit injector sleeve in the cylinder head.
NOTICE
Ensure that the electronic unit injector sleeve is
properly seated in the cylinder head. The Tooling will
"RING" when the electronic unit injector sleeve is fully
seated in the bore of the cylinder head.
6. Remove Tooling (A). Remove excess Tooling (C).
7. Fill the cooling system with coolant. Refer to
Operation and Maintenance Manual, “Cooling
System Coolant - Change”.
End By:
a. Install the electronic unit injectors. Refer to
Disassembly and Assembly, “Electronic Unit
Injector - Install”.
