C27 and C32 Generator Sets Engines Disassembly and Assembly Page 22

Disassembly and Assembly
22 RENR9716-02
Disassembly and Assembly Section
End By:
a. Install the electronic unit injectors. Refer to
Disassembly and Assembly, “Electronic Unit
Injector-Ins
tall”.
i02642655
Inlet and Exhaust Valves -
Remove and I nstall
SMCS Code: 1105-010
Removal Procedure
Table 13
Required Tools
Tool Part Number Part Description Qty
A
5S-1330
Valve Spring
Compressor
1
B
8S-2263
Spring Tester 1
Start By:
a. Remove the cylinder head. Refer to Disassembly
and Assembly, “Cylinder Head - Remove”.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.

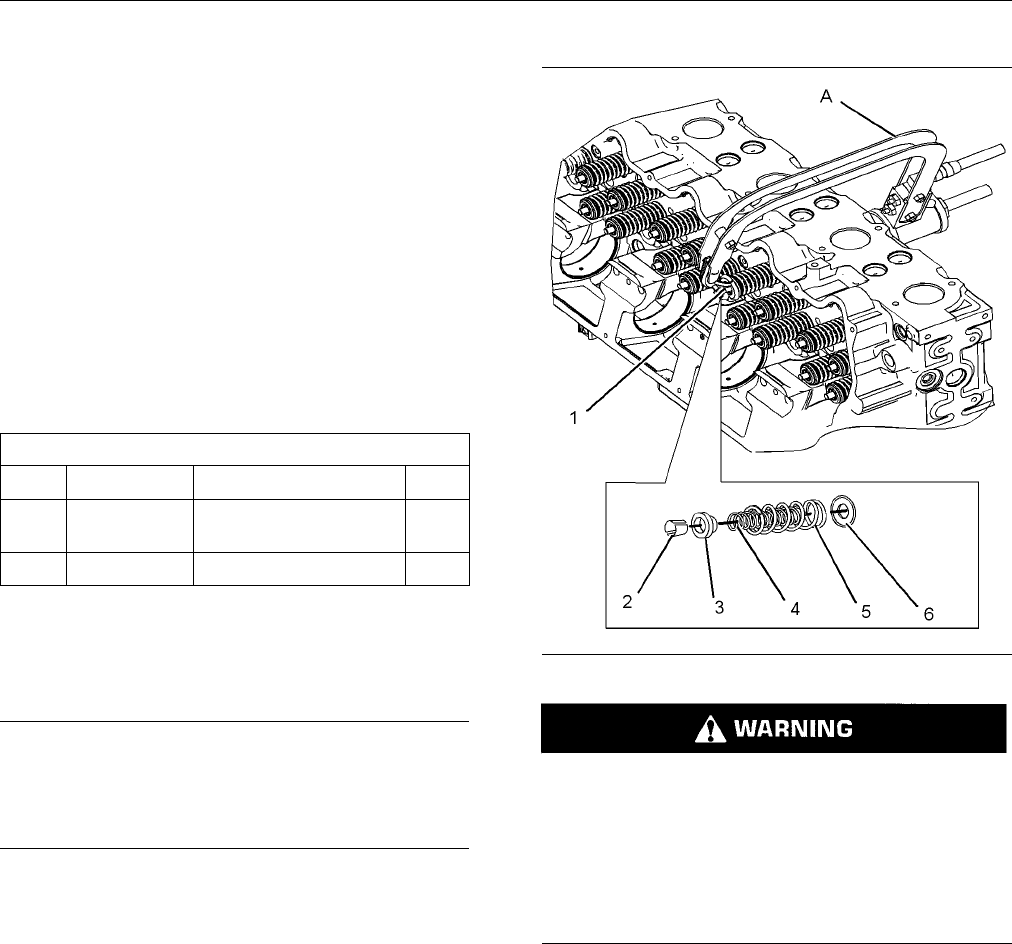

g01015263
Illustrat
ion 59
Personal injury can result from being struck by
parts propelled by a released spring force.
Make sure to wear all necessary protective equip-
ment.
Follow the recommended procedure and us e all
recommended t ooling to release the spring force.
1. Install Tooling (A) and compress the valve springs.
Remove valve spring keepers (2) from valve (1).
2. Carefully remove Tooling (A) from valve (1).
3. Remove valve rotator (3).
4. Remove outer valve spring (5) and inner valve
spring (4) from valve (1).
5. Remove washer (6) and valve (1) from the valve
guide.
6. UseTooling(B)tocheckthevalvesprings(spring
force). Refer to Specifications, “Cylinder Head
Valves” for additional information on the valve
springs.
7. Inspect the valves. Refer to Specifications,
“Cylinder Head Valves” for additional information
on the inlet and exhaust valves.
