C27 and C32 Generator Sets Engines Disassembly and Assembly Page 26

Disassembly and Assembly
26 RENR9716-02
Disassembly and Assembly Section
2. Use Tooling (A) in order to remove engine oil
filters (6).
3. Removebolts(1),(2),(4),and(5).
4. Remove engine oil filter base (3).
i02127750
Engine O il Filter Base -
Disassemble
SMCS Code: 1306-015
Disassembly Procedure
Start By:
a. Removetheengineoilfilter base. Refer to
Disassembly and Assembly, “Engine Oil Filter
Base - Remove”.
1. Remove the O-ring seals.

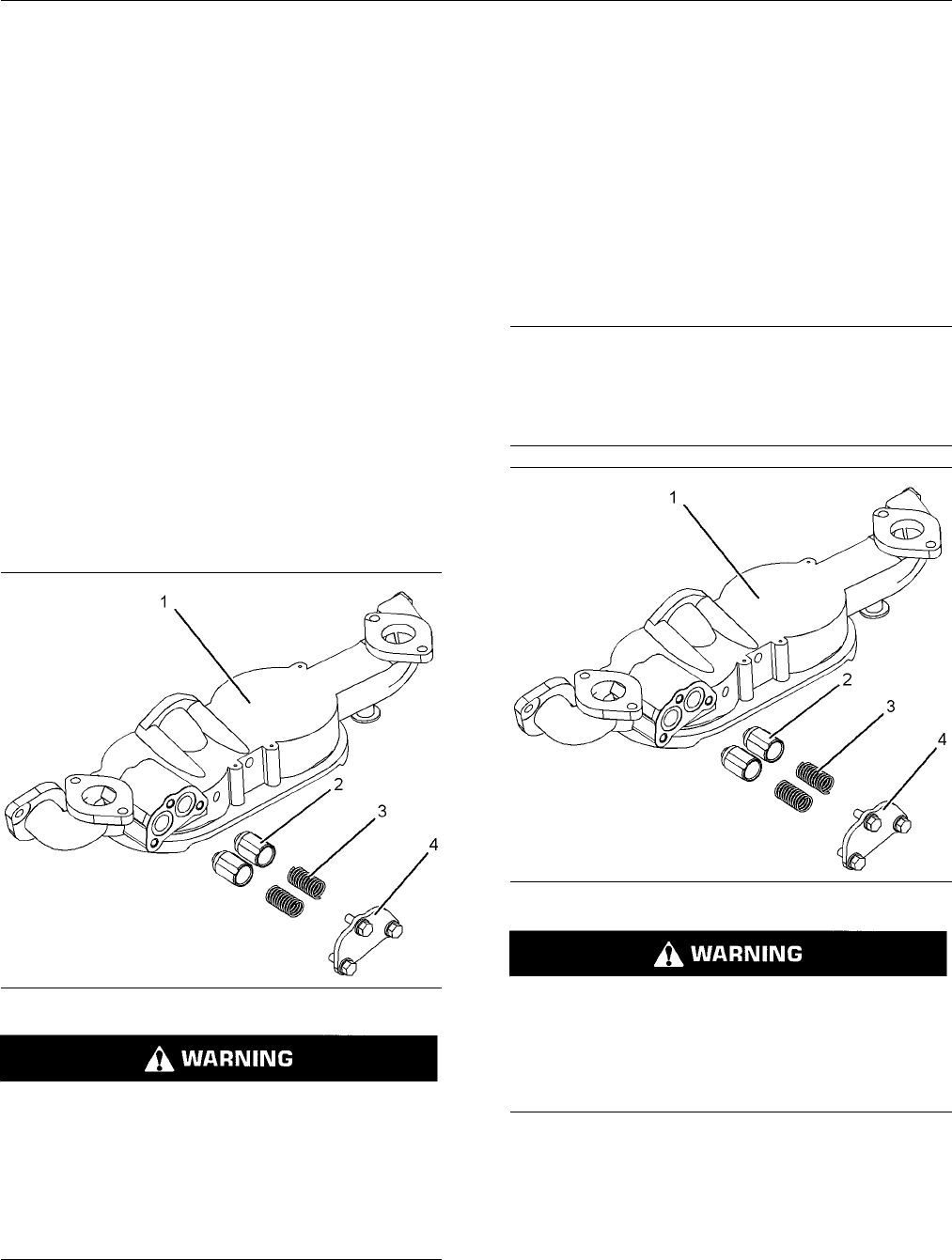

g01083088
Illustration 66
Personal injury can result from being struck by
parts propelled by a released spring force.
Make sure to wear all necessary protective equip-
ment.
Follow the recommended procedure and use all
recommended tooling to release the spring force.
2. Remove cover (4).
3. Remove springs (3) and plungers (2) from oil filter
base assembly (
1).
i02127824
Engine Oil Filter Base -
Assemble
SMCS Code: 1306-016
Assembly Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01083088
Illustration 67
Improper assembly o f parts that are spring loaded
can cause bodily injury.
To prevent possible injury, follow the established
assembly procedure and wear protective equip-
ment.
1. Install plungers (2) and springs (3) in oil filter base
assembly (1).
2. Install cover (4).
3. Install the O-ring seals.
