C27 and C32 Generator Sets Engines Disassembly and Assembly Page 86

Disassembly and Assembly
86 RENR9716-02
Disassembly and Assembly Section
4. Pull the connecting rod onto the crankshaft.
g01149651

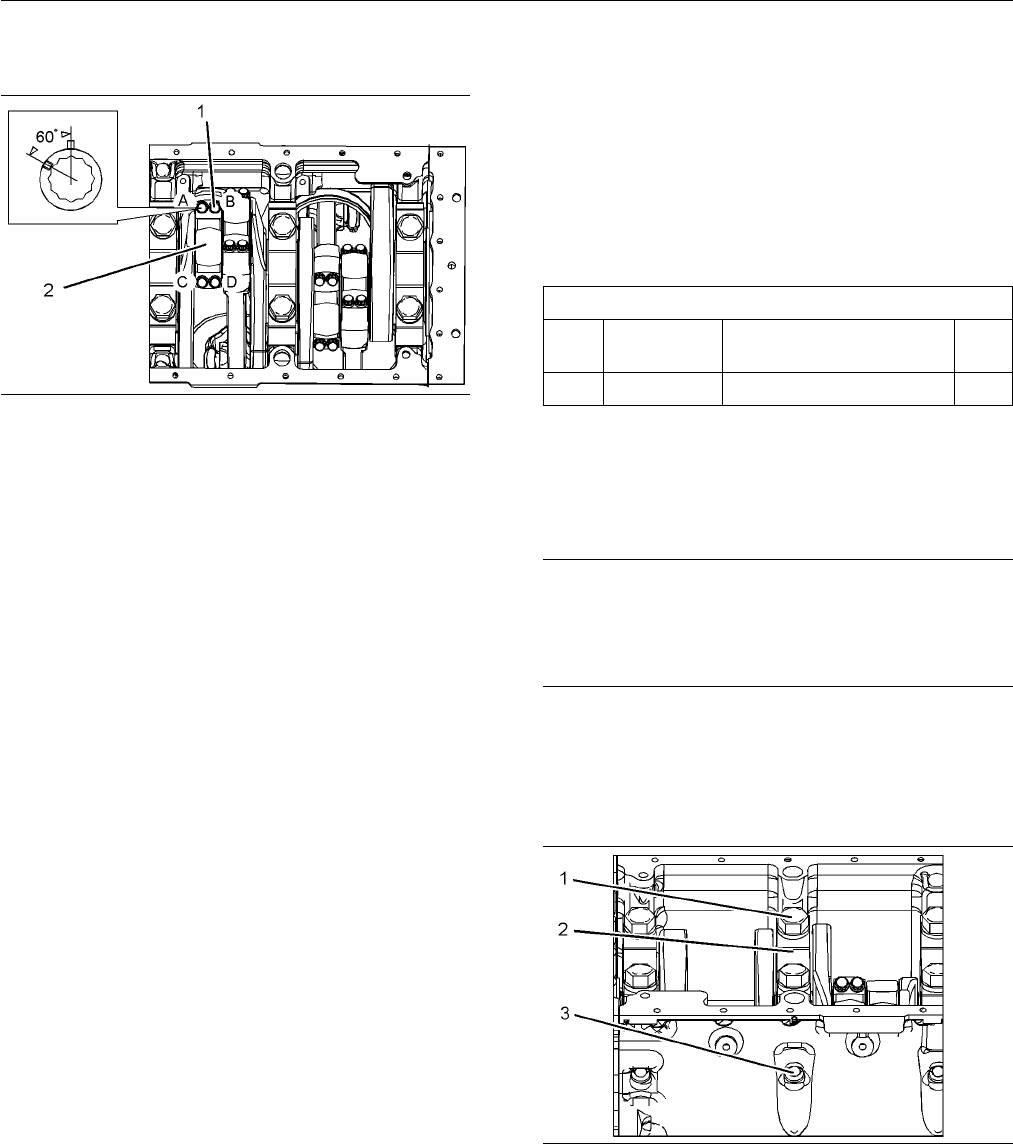

Illustration 251
5. Position connecting rod bearing cap (2) on the
connecting rod.
Note: Ensure that the number on the side of the
connecting rod bearing cap is on the same side as
the number on the connecting rod. The bearing tabs
of the connecting rod bearing cap and the connecting
rod are located on the side opposite of the piston
cooling jet.
6. Lubricate the threads of bolts (1) with clean engine
oil. Install the bolts.
7. Tighten bolts (1), as follows:
a. Tighten Bolt (A) and Bolt (C) to a torque of
70 ± 4 N·m (52 ± 3 lb ft).
b. Tighten Bolt (B) and Bolt (D) to a torque of
70 ± 4 N·m (52 ± 3 lb ft).
c. Turn Bolt (B) and Bolt (D) for an additional 60 ±
5 degrees (1/6 turn).
Note: If Tooling (B) is not used, place an index mark
on each bolt.
d. Tighten Bolt (A) and Bolt (C) again to a torque
of 70 ± 4 N·m (52 ± 3 lb ft).
e. Tighten Bolt (A) and Bolt (C) for an additional
60 ± 5 degrees (1/6 turn).
Note: If Tooling (B) is not used, place an index mark
on each bolt.
f. Rotate the crankshaft in order to ensure that
the crankshaft turns freely.
End By:
a. Install the engine oil pump. Refer to Disassembly
and Assembly, “Engine Oil Pump - Install”.
i02296017
Crankshaft Main Bearings -
Remove
SMCS Code: 1203-011
Removal Procedure
Table 66
Required Tools
Tool
Part
Number Part Descript
ion
Qty
A
2P-5518
Bearing Tool 1
Start By:
a. Remove the engine oil pump. Refer to
Disassembly and Assembly, “Engine Oil Pump
- Remove”.
NOTICE
Keep all parts clean from contaminants.
Contaminants
may cause rapid wear and shortened
component life.
1. Check the main bearing caps for identification of
the location and check the direction of the main
bearing caps in relation to the cylinder block. The
main bearing caps must be installed in the original
location and the original direction.
g01149949
Illustration 252
2. Remove bolts (1) and bolts (3) from No. 2 through
No. 6 main bearing caps (2).
Note: Remove No. 1 and No. 7 main bearing caps
(2) after No. 2 through No. 6 main bearing caps have
been inst
alled.
