C27 and C32 Generator Sets Engines Disassembly and Assembly Page 96

Disassembly and Assembly
96 RENR9716-02
Disassembly and Assembly Section
1. Install a new O-ring seal on coolant temperature
sensor (2).
2. Install coolant temperature sensor (2) and tighten
to a torque of 2
0±5N·m(15±4lbft).
3. Connect harness assembly (1).
4. Fill the cooling system with coolant. Refer to
Operation and Maintenance Manual, “Cooling
System Coolan
t - Change”.
i02298137
Engine Oil Pressure Se nso r -
Remove and I nstall
SMCS Code: 1924-010
Removal Procedure
NOTICE
Care must be taken to ensure that fluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect the fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Tools and Shop Products Guide” for tools and supplies
suitable to collect and contain fluids on Caterpillar
products.
Dispose of all fluids according to local regulations and
mandates.
NOTICE
Keep all par
ts clean from contaminants.
Contaminants may cause rapid wear and shortened
component l
ife.

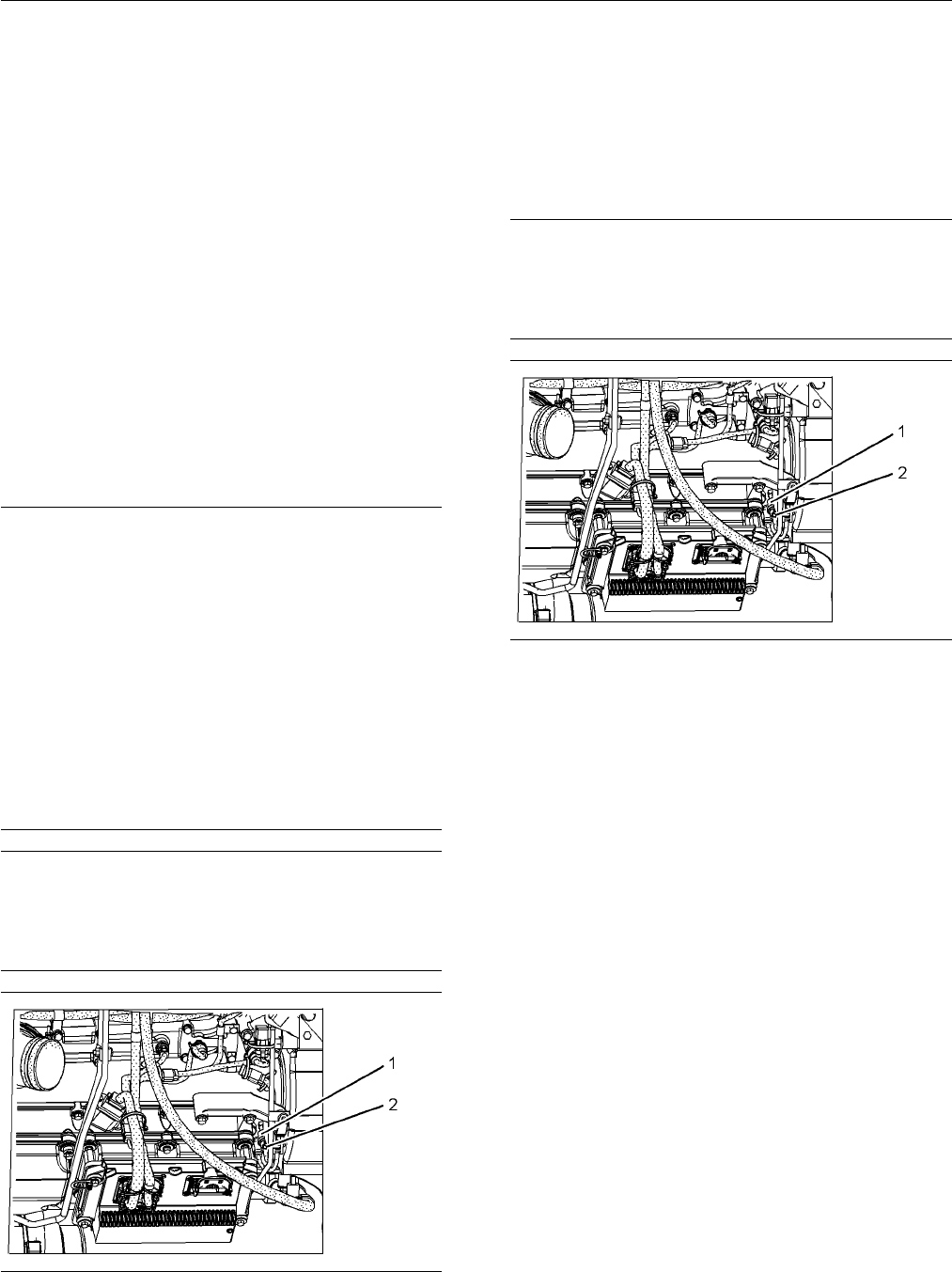

g01150948
Illustration 272
1. Disconnect harness assembly (2).
2. Remove engine oil pressure sensor (1) from the
adapter on the c
ylinder block.
3. Remove the O-ring seal from engine oil pressure
sensor (1).
Installation
Procedure
NOTICE
Keep all parts
clean from contaminants.
Contaminants may cause rapid wear and shortened
component lif
e.
g01150948
Illustration 273
1. Install a new O-ring seal on engine oil pressure
sensor (1).
2. Install engine oil pressure sensor (1) and tighten
toatorqueof10±2N·m(89±18lbin).
3. Connect harness assembly (2).
