C27 and C32 Generator Sets Engines Disassembly and Assembly Page 93

Disassembly and Assembly
RENR9716-02 93
Disassembly and Assembly Section
Note: When Tooling (A) is used, the readings can
sometimes be un
clear. For example, all parts of
Tooling(A)arenotthesamewidth.Measurethe
major width in order to ensure that the parts are
within the spe
cification range. Refer to Specifications
Manual, “Connecting Rod Bearing Journal” and
Specifications Manual, “Main Bearing Journal” for the
correct clea
rances.
i02449735
Atmospheric
Pressure Sensor
- R emove and In stall
SMCS Code: 19
23-010
Removal Proc
edure
NOTICE
Keep all part
s clean from contaminants.
Contaminants may cause rapid wear and shortened
component li
fe.

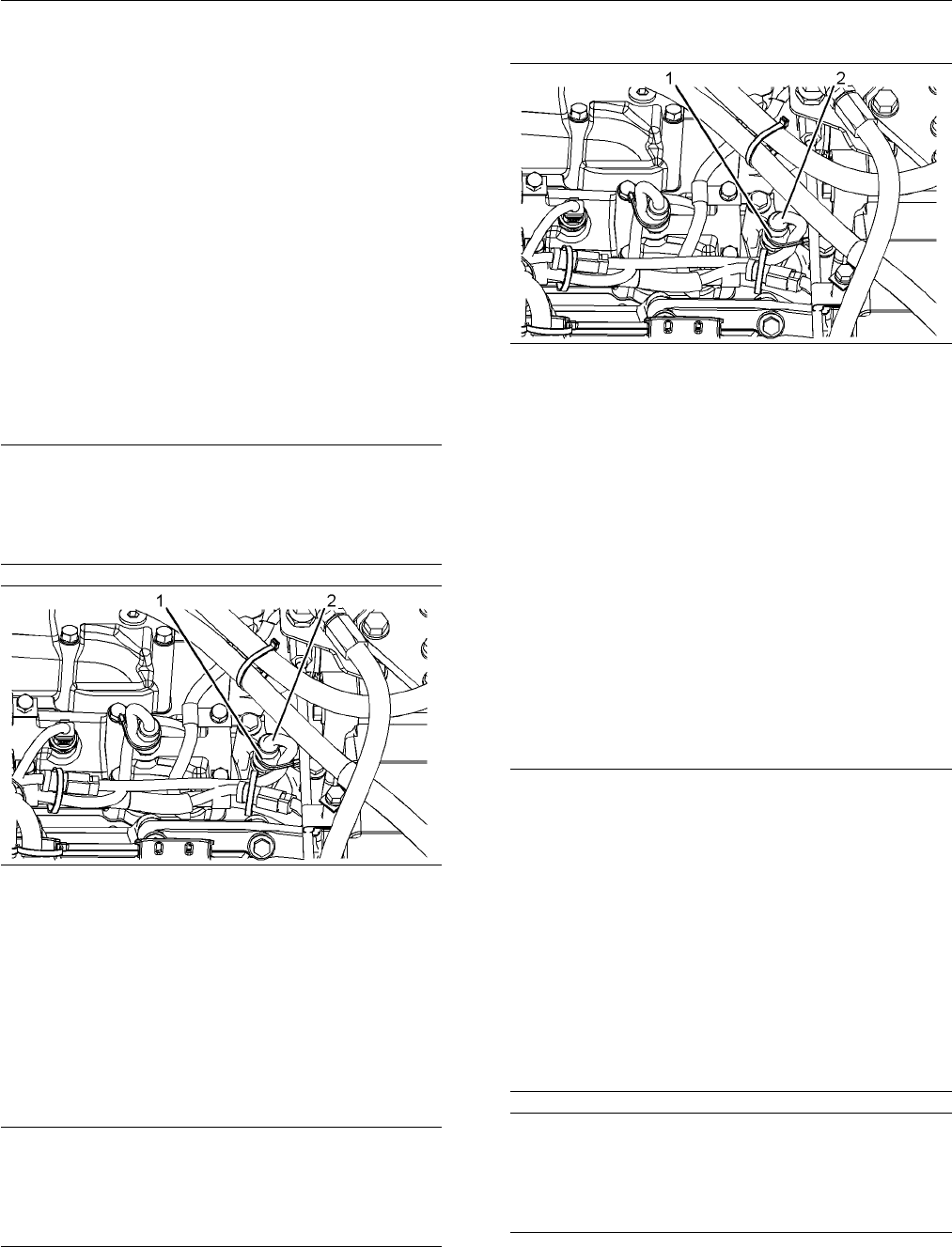

g01222887
Illustration 264
1. Disconnect harness assembly (2).
2. Remove atmospheric pressure sensor (1) from
the adapter on the cylinder block.
3. Remove the O-ring seal from atmospheric
pressure sensor (1).
Installation Procedure
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
g01222887
Illustration 265
1. Install a new O-ring seal on atmospheric pressure
sensor (1).
2. Install atmospheric pressure sensor (1) and
tightentoatorqueof10±2N·m(90±18lbin).
3. Connect harness assembly (2).
i02297743
Camshaft Po
sition Sensor -
Remove and Install
SMCS Code: 1
912-010
Removal Pro
cedure
NOTICE
Care must be
takentoensurethatfluids are contained
during performance of inspection, maintenance, test-
ing, adjusting and repair of the product. Be prepared to
collect th
e fluid with suitable containers before open-
ing any compartment or disassembling any compo-
nent containing fluids.
Refer to Special Publication, NENG2500, “Caterpillar
Tools and Shop Products Guide” for tools and supplies
suitable t
o collect and contain fluids on Caterpillar
products.
Dispose of
all fluids according to local regulations and
mandates.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
