C27 and C32 Generator Sets Engines Disassembly and Assembly Page 82

Disassembly and Assembly
82 RENR9716-02
Disassembly and Assembly Section
i02447789
Pistons and Connecting Rods
- Disassemble
SMCS Code: 1225-015
Disassembly Procedure
Table 61
Required Tools
Tool
Part
Number Part Descript
ion
Qty
A
6V-6192
Pliers 1
B
7B-7974
Piston Ring Expander Gp 1
Start By:
a. Remove the pistons and connecting rods. Refer
to Disassembly and Assembly, “Pistons and
Connecting Rods - Remove”.
Note: Mark the components of each piston and
connecting rod assembly. The components must be
reinstalled in the original location. Do not interchange
components.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.

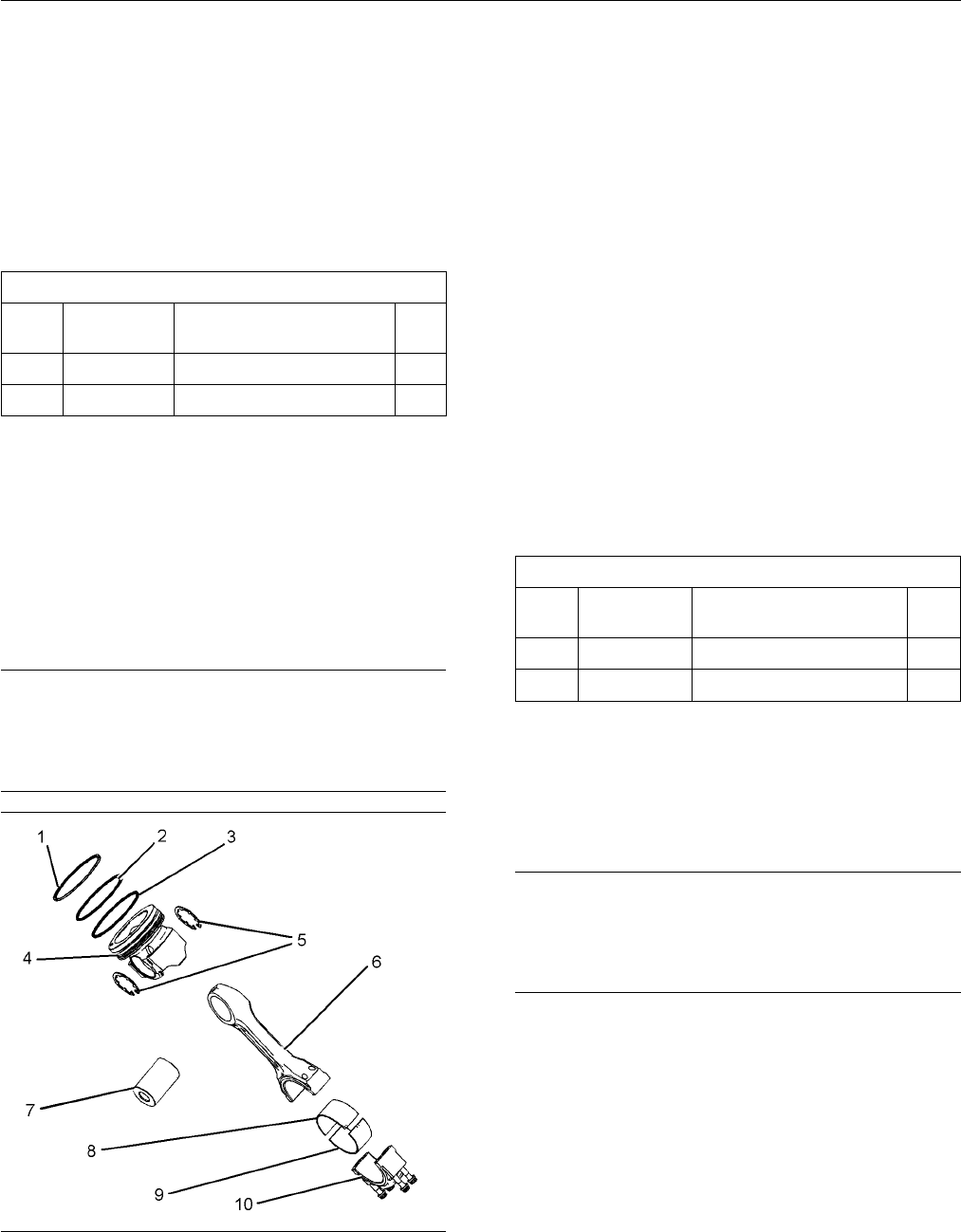

g0122262
9
Illustration 245
1. Remove lower connecting rod bearing (9) from
connecting rod bearing cap (10).
2. Remove upper connecting rod bearing (8) from
connecting rod
(6).
3. Use Tooling (A) to remove pin retainers (5) from
piston body as
sembly (4).
4. Remove connecting rod pin (7) and connecting
rod (6) from th
e piston body assembly.
5. Use Tooling (B) to remove top piston ring (1),
intermediate
piston ring (2), and oil control piston
ring (3) from the piston body assembly.
i02447828
Pistons and Connecting Rods
- Assemble
SMCS Code: 1225-016
Assembly Procedure
Table 62
Required Tools
Tool
Part
Number Part Description Qty
A
6V-6192
Pliers 1
B
7B-7974
Piston Ring Expander Gp 1
Note: Prior to removal from the engine, the pistons
and connecting rod assemblies were marked.
The components must be reassembled together.
The components must be installed in the original
location in the engine. Do not interchange any of the
components.
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
Previous page
Next page
