C27 and C32 Generator Sets Engines Disassembly and Assembly Page 61

Disassembly and Assembly
RENR9716-02 61
Disassembly and Assembly Section
NOTICE
Keep all parts clean from contaminants.
Contaminants may cause rapid wear and shortened
component life.
1. Apply Tooling (A) to the bottom of the rear housing
at the junction of the cylinder block and the engine
oil pan.
g011471
38

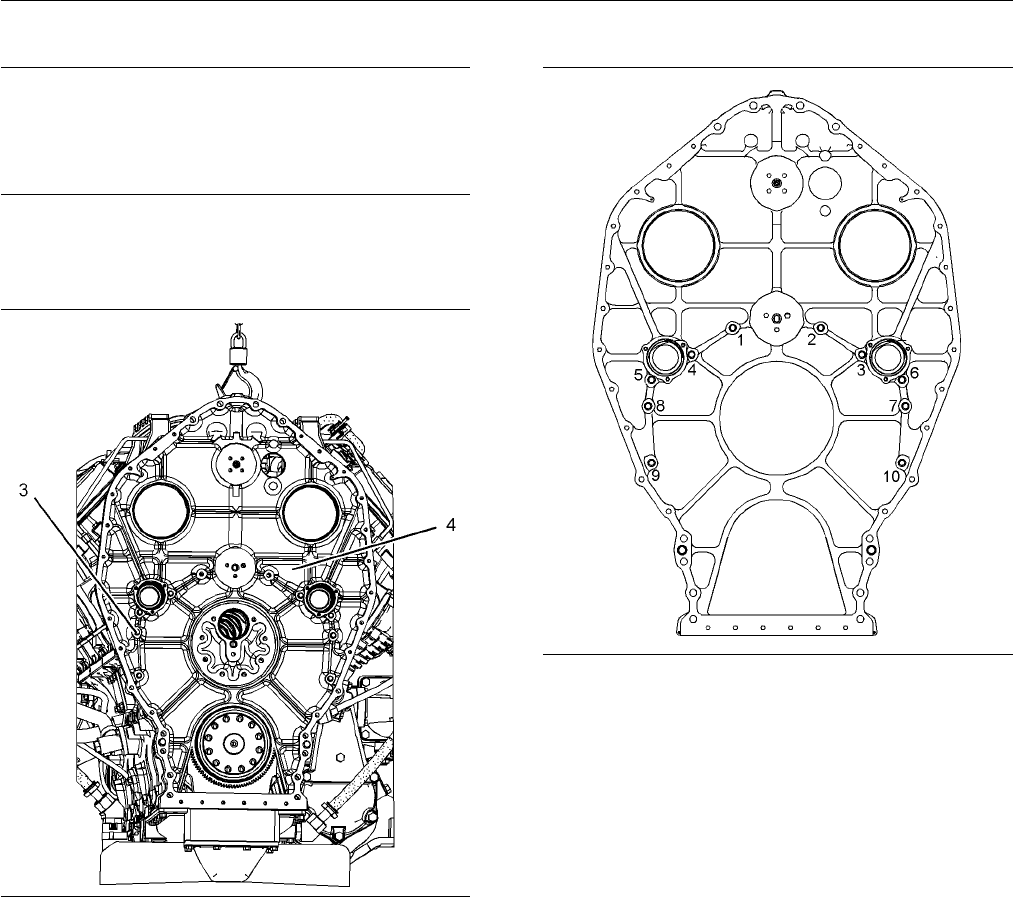

Illustration 180
g01147149
Illustrat
ion 181
2. Attach a suitable lifting device to rear housing (4).
The weigh
t of rear housing (4) is approximately
84 kg (185 lb).
3. Position
the gasket on rear housing (4).
4. Position rear housing (4) on the cylinder block.
Install b
olts (3). Tighten bolts (3) in a numerical
sequence to a torque of 55 ± 10 N·m (41 ± 7 lb ft).
5. Trim the g
asket between the rear housing and the
cylinder block even with the bottom of the rear
housing.
